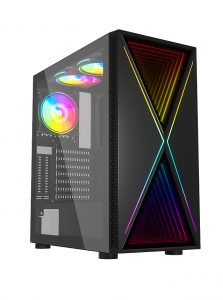

b-BlackWidow-RGB
Take a peek inside ouR ATTRACTIVE CASES

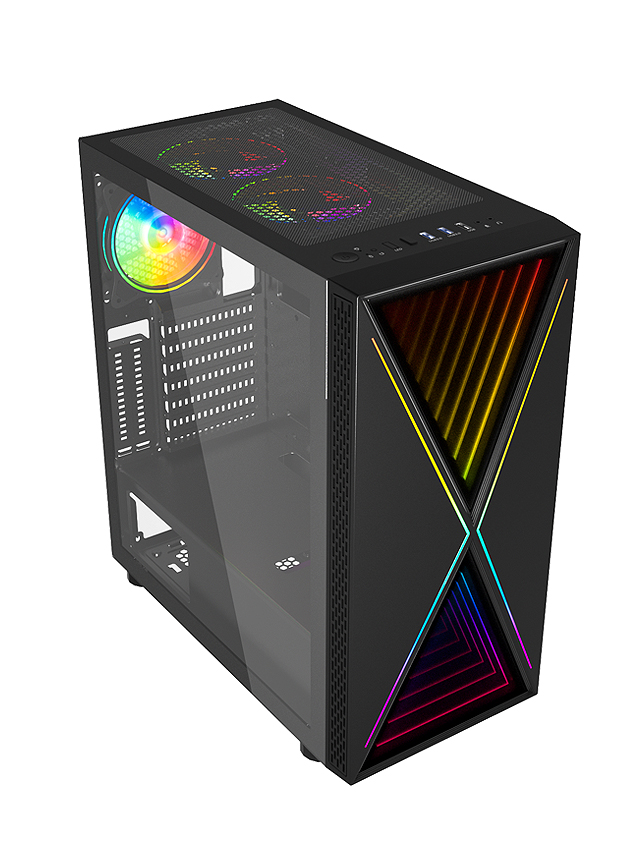

b-BlackWidow-RGB Black/White
3 x PWM 120mm ARGB
1 x 6 Channels Fan and ARGB LEDs Hub with Motherboard Sync
1 x Remote controller for Fan Speed and ARGB LEDs
Power Supply is not included.
Middle Tower ATX
FEATURE

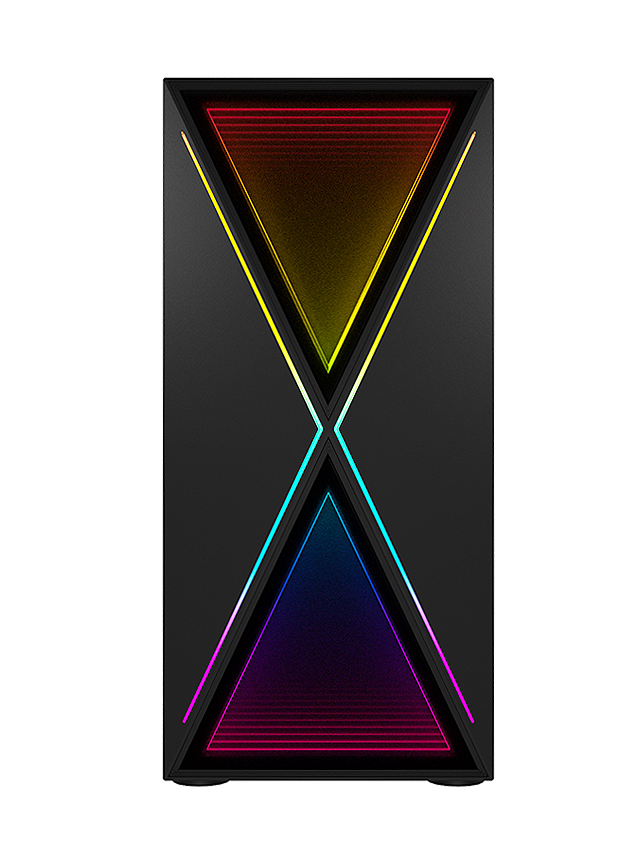

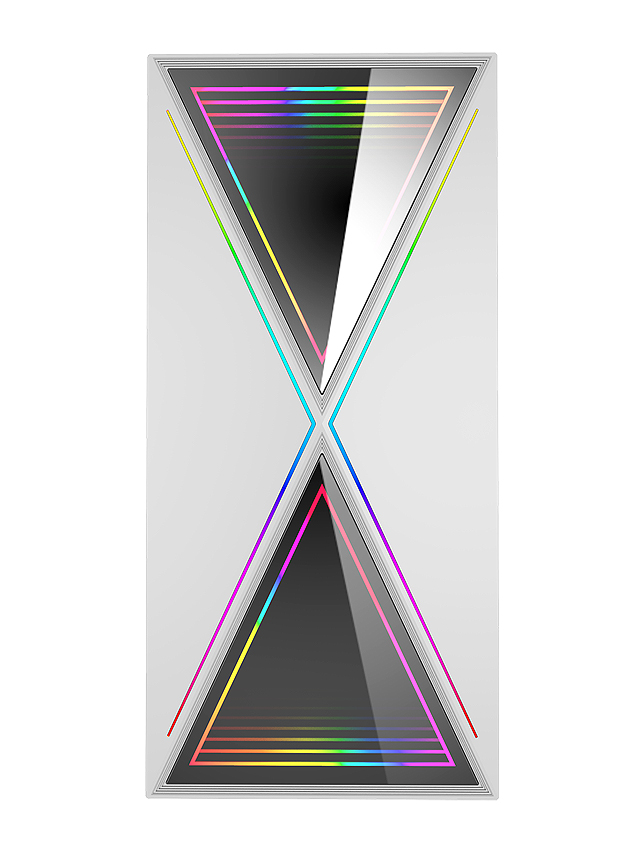

- Mesmerizing Ripple Effect ARGB LED Front panel Lighting
- ARGB LED with multi-mode setting Front Panel

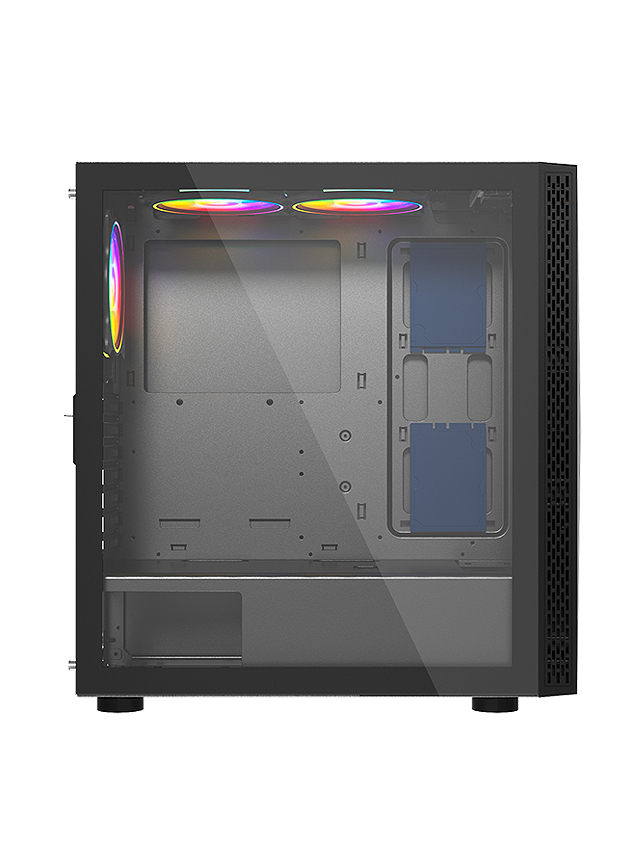

- Tinted Tempered Glass Side Window
- Support E-ATX/ATX/Micro ATX/ITX
- Support WaterCooling: Front 240mm or 360mm, Top-240mm, Rear-120mm
- Support Graphic Card: Up to 380mm and in vertical position
- Include USB 3.0 x 2, USB2.0 x 1, and an optional USB Type C port internal cable sold separately.
- Includes:
3 x 120mm ARGB Fan
1 x 6 Channel Fan HUB with Motherboard Sync and 2 LED connectors
1 x Remote controller for Fan Speed and ARGB LEDs
Power Supply is not included.
LIQUID COOLING RADIATOR

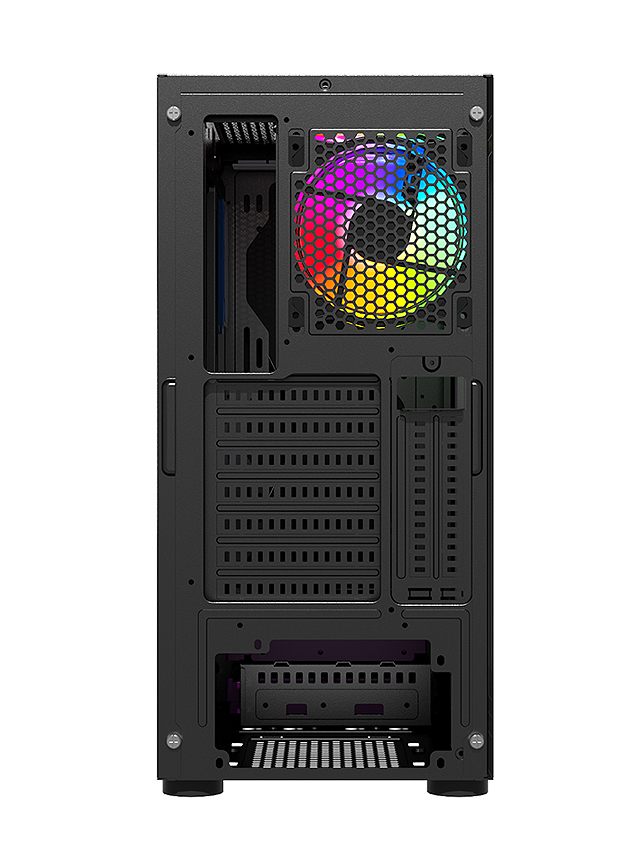

7 PCI and 2 VGA Vertical Slots
Removable Magnetic Filter
COMPONENT SUPPORT

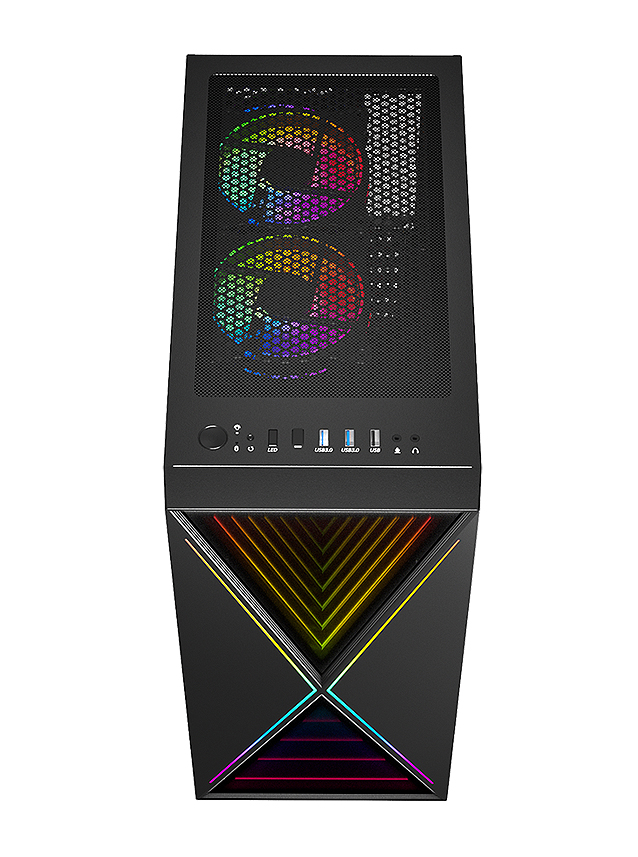

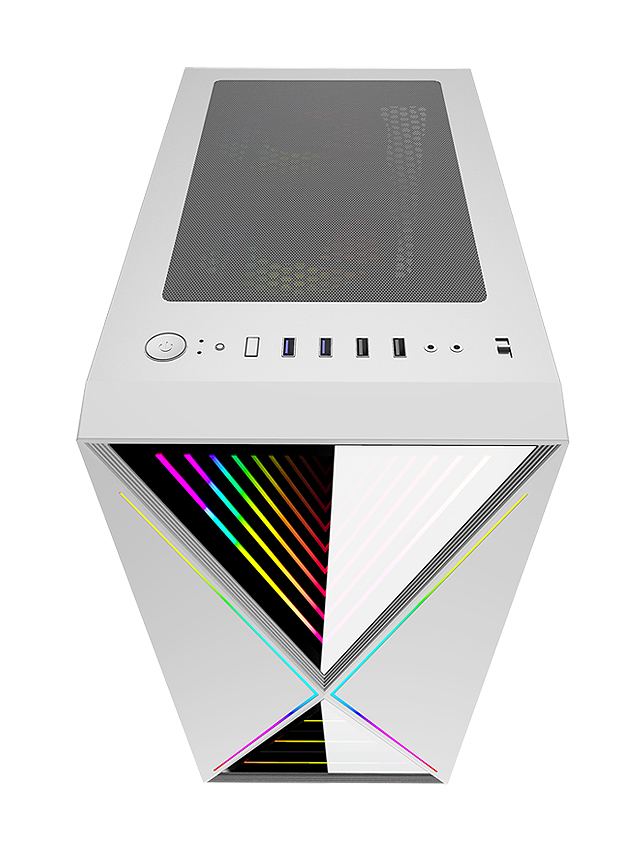

TOP PANEL FEATURE

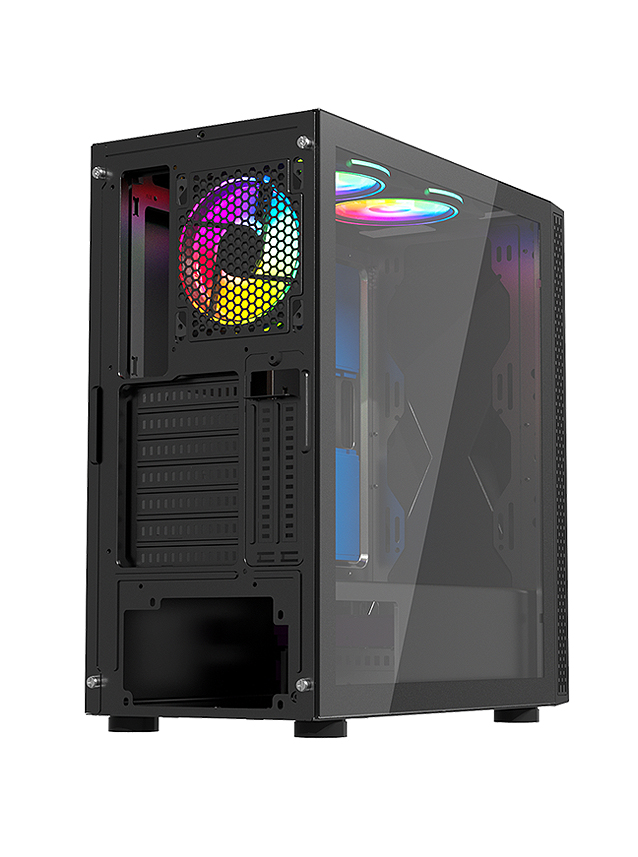

AIR COOLING
FAN CONTROLLER
REMOTE CONTROLLER
Features
Models / Colors and Accessories
Fan Hub Guide
Remote Controller Guide
Features
- Mesmerizing Ripple Effect ARGB LED Front panel Lighting
- ARGB LED with multi-mode setting Front Panel
- Tinted Tempered Glass Side Window
- Support E-ATX/ATX/Micro ATX/ITX
- Support WaterCooling: Front 240mm or 360mm, Top-240mm, Rear-120mm
- Support Graphic Card: Up to 380mm and in vertical position
- Include USB 3.0 x 2, USB2.0 x 1, and an optional USB Type C port internal cable sold separately.
- Includes:
3 x 120mm ARGB Fan
1 x 6 Channel Fan HUB with Motherboard Sync and 2 LED connectors
1 x Remote controller for Fan Speed and ARGB LEDs
Power Supply is not included.
Models / Colors and Accessories

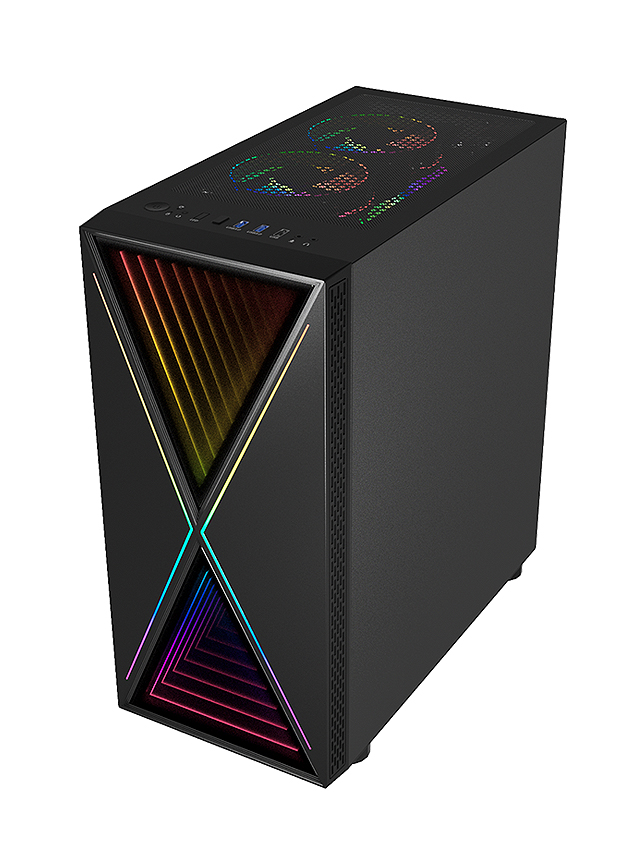

- Black

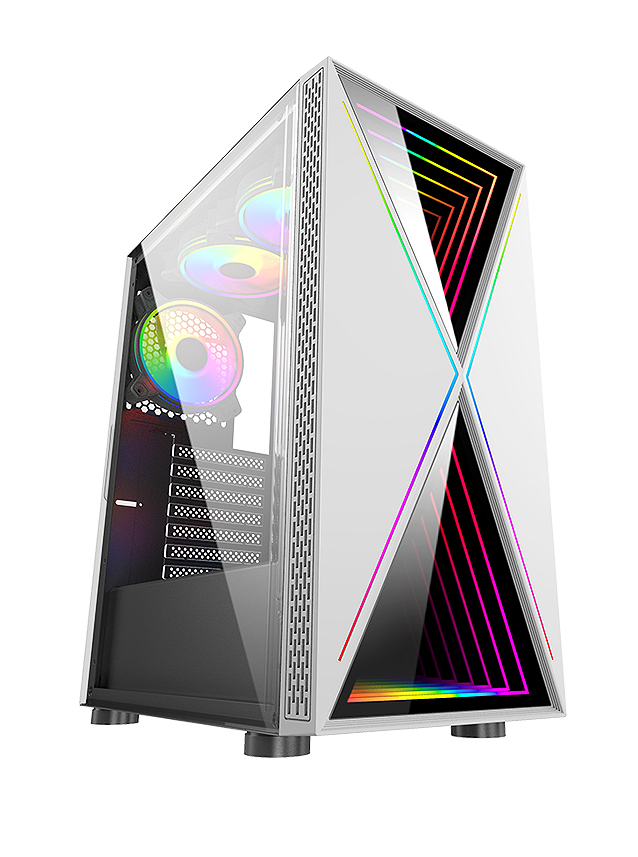

- White
Fan Hub Guide
Specification:
- Voltage: DC12V
- LED: DC5V
- Current: 0.25 – 0.4A
- Control mode: RF wireless
- Case material: ABS
- PCB material: FR4
- Operating temperature range: 0 – 60 Degrees
- Celsius Frequency: 433.92MHz
Remote Controller Guide
Specification:
- Voltage: 3V
- Battery: 150MA
- PCB: HB
- Housing material: ABS
- Control mode: RF wireless
- Frequency: 433.92MHz
| b-BlackWidow-RGB | Black |
|---|---|
| UPC Code: | 853704001619 |
| Product Number: | BG01619 |
| Case Type: | Middle Tower ATX |
| Chassis Thickness: | 0.6mm Black interior |
| Motherboards: | E-ATX/ATX/Micro-ATX/ITX |
| Dimension (Internal): | 380(L) x 215(W) x 440(H) mm |
| Dimension (Overall): | 435(L) x 215(W) x 440(H)mm |
| Front Panel: | ABS Plastic + ARGB Strip + Tempered Glass |
| Side Panel Left: | Tinted Tempered Glass |
| Side Panel Right: | Steel |
| Drive Bay HDD (3.5"): | 2 x 3.5" HDD or (1 x 3.5" HDD + 1 x 2.5" SSD) |
| Drive Bay SSD (2.5"): | 2 |
| I/O Port: | USB 3.0 x 2 / USB 2.0 x 1 / Mic / HD AUDIO, Cable Length 650mm + AUDIO 650 mm |
| Fan Front: | 3 x 120mm or 2 x 140mm (OPTIONAL) |
| Fan Top: | 2 x PWM 120mm ARGB (INCLUDED) |
| Fan Rear: | 1 x PWM 120mm ARGB (INCLUDED) |
| Fan Hub: | 6 Channels Fan and ARGB LEDs Hub with Motherboard Sync |
| Controller: | 1 x Fan Speed and ARGB LEDs Remote Controller |
| CPU Cooler Height: | Max. 175mm |
| VGA Card Length: | Max. 380mm (Maximum 360mm with front fans installed) |
| Water Cooling: | front 240mm or 360mm, top 240mm, rear 120mm |
| Dust Cover: | top magnet dust filter, bottom PVC duct filter |
| Expansion Slots: | 7 + 2 (Vertical position) |
| PSU Compatibility: | Standard ATX / ATX12V PSU Maximum Depth 200mm (PSU Not Included) |
