b-Blaster DC 12V-24V Series
Take a peek inside our COOLING world
b-Blaster DC Series
12V-24V / 2 Ball Bearing
b-Blaster Series carries both AC and DC fans in a variety of sizes, speeds, styles and voltages..
Features
Models / Colors and Accessories
Features
- 2 Ball Bearing fan for Extended Life and High Performance (Japanese ball bearing for 80mm, 90mm, 120mm and 140mm)
- Extreme Speed with Excellent Airflow
- Ideal for PC CASE, POWER SUPPLY and CPU heatsink

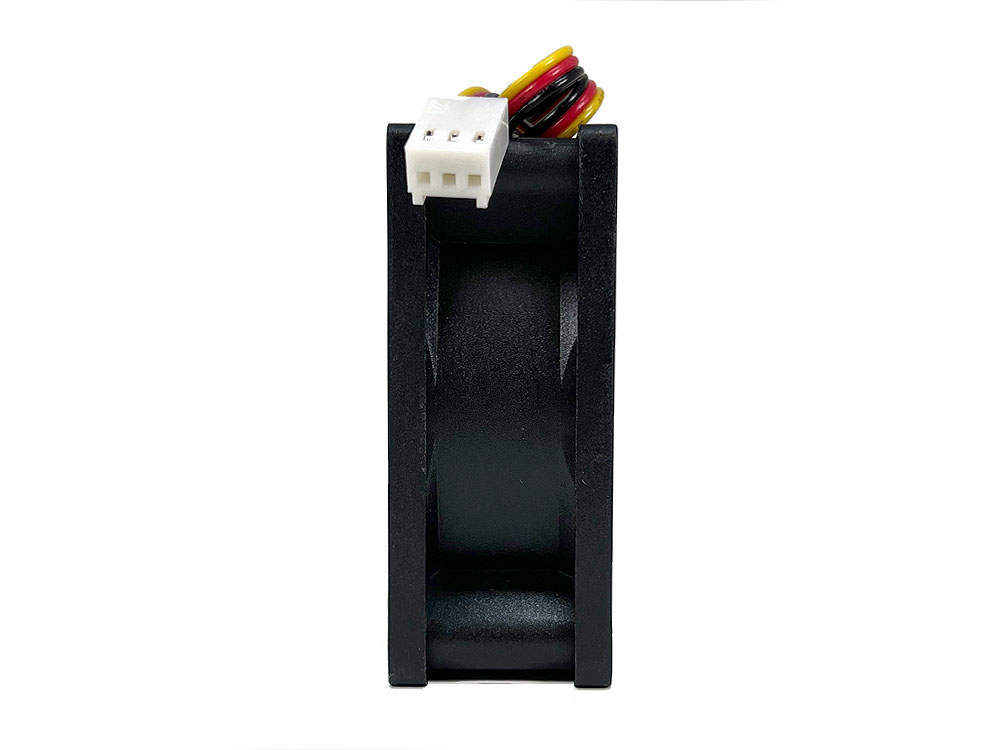

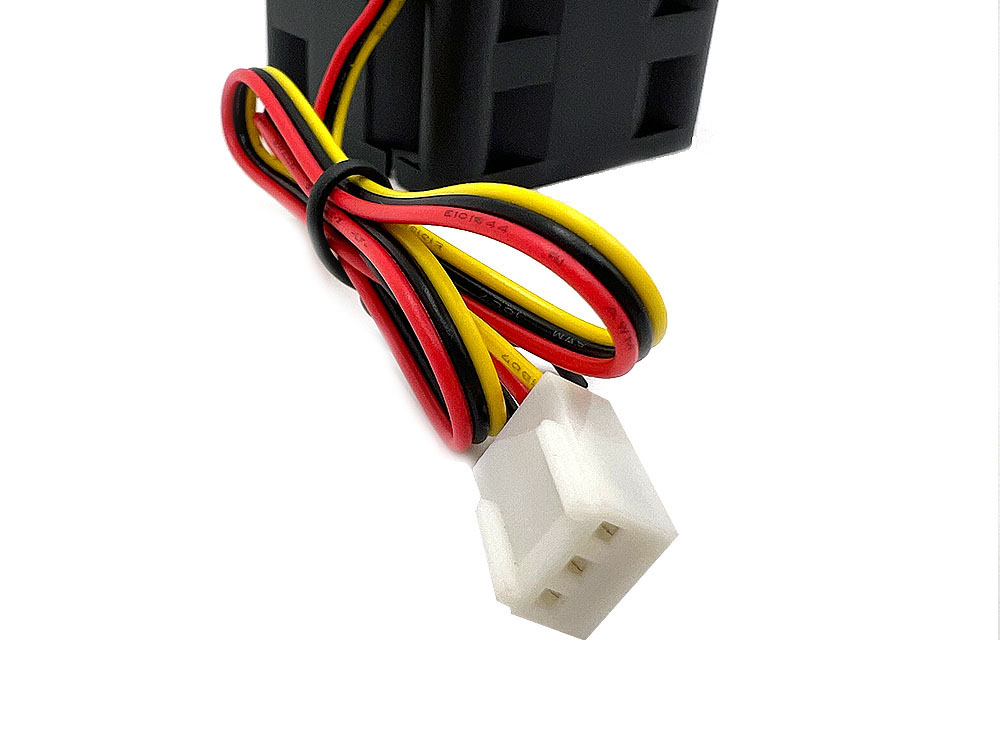

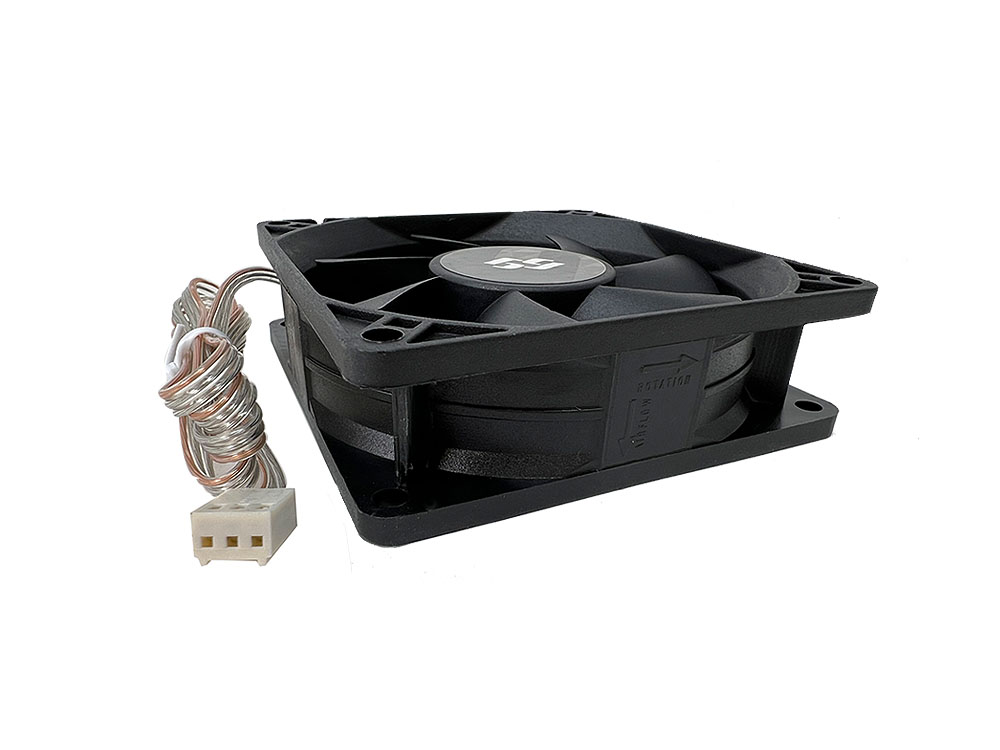

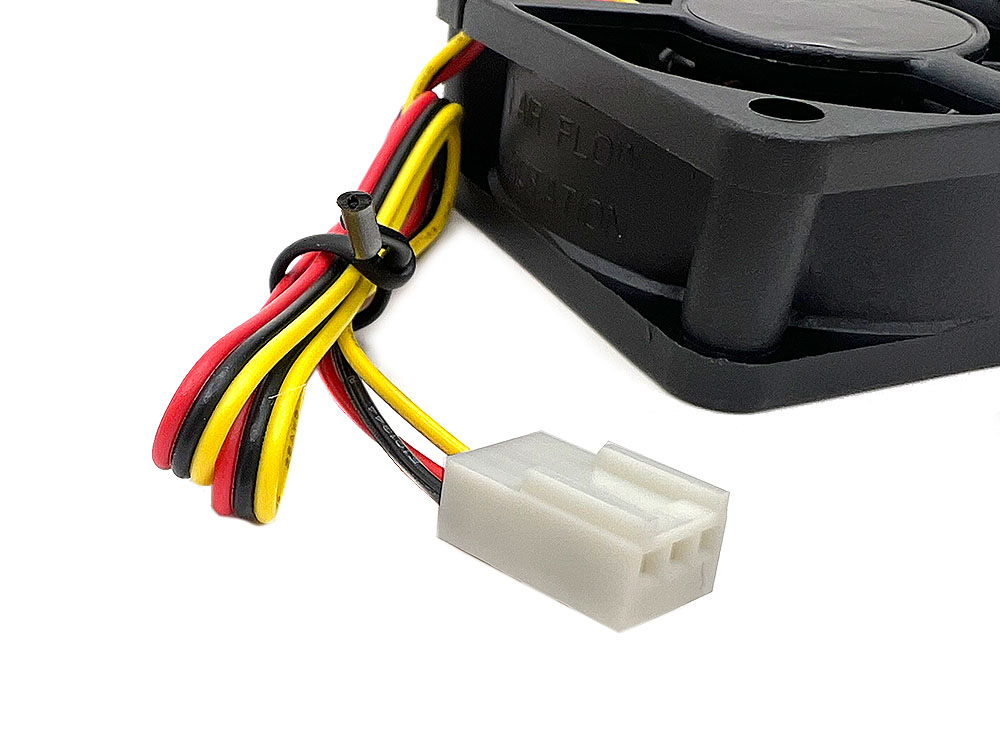

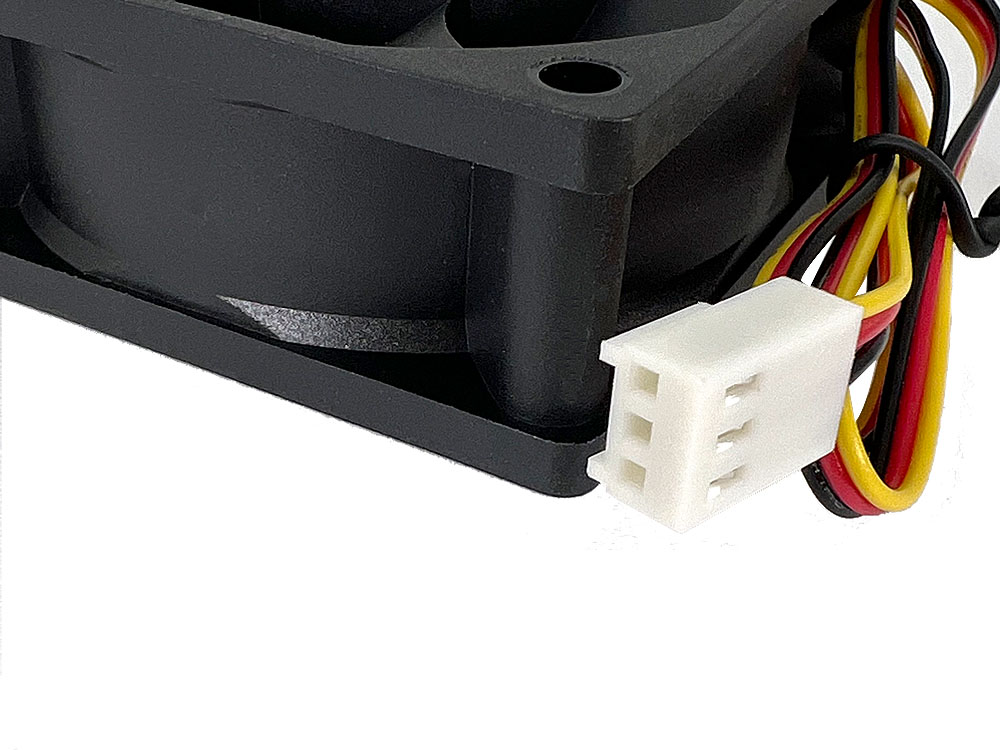

- 3 pin 3 lead wire connector with Fan Speed signal output

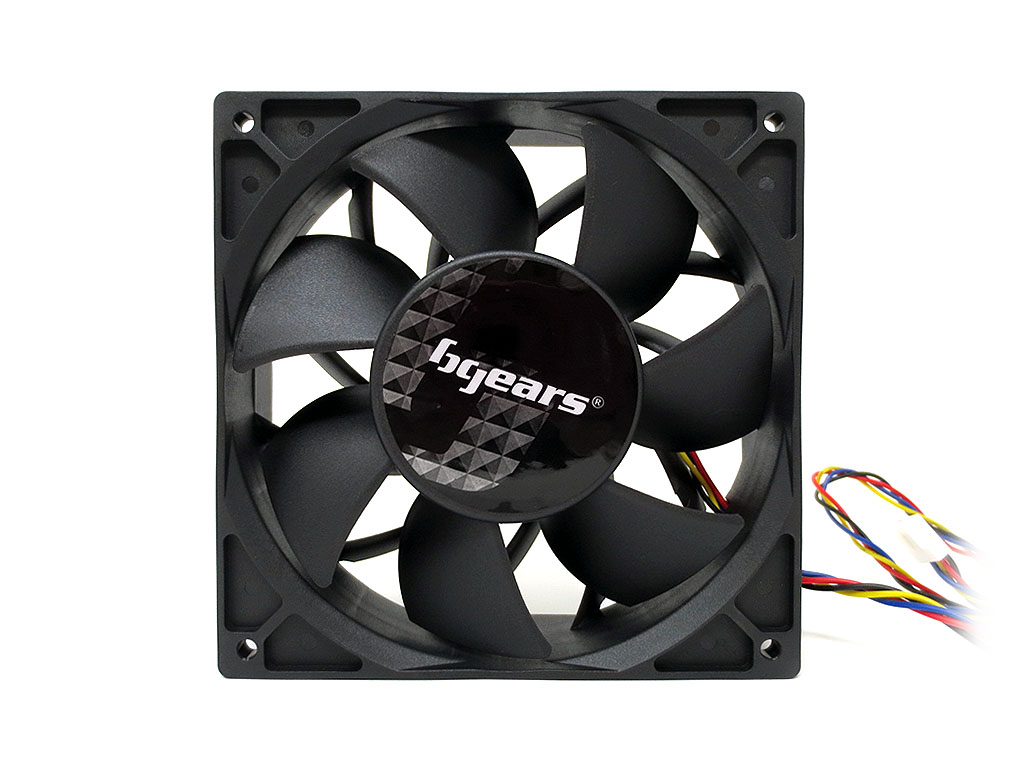

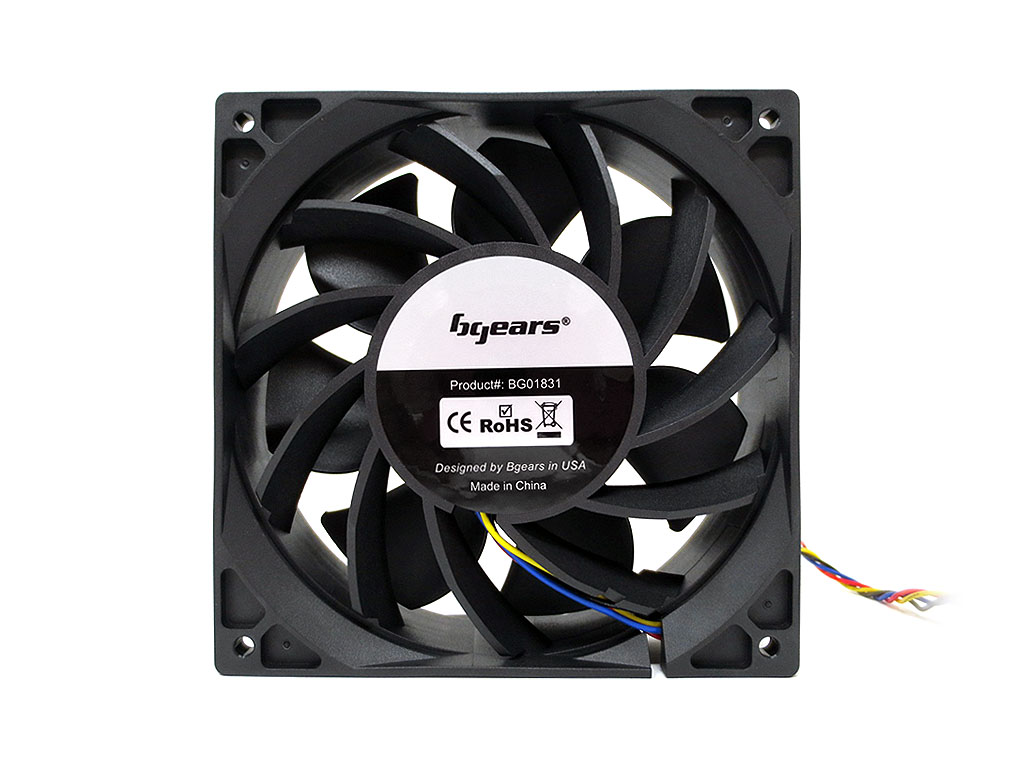

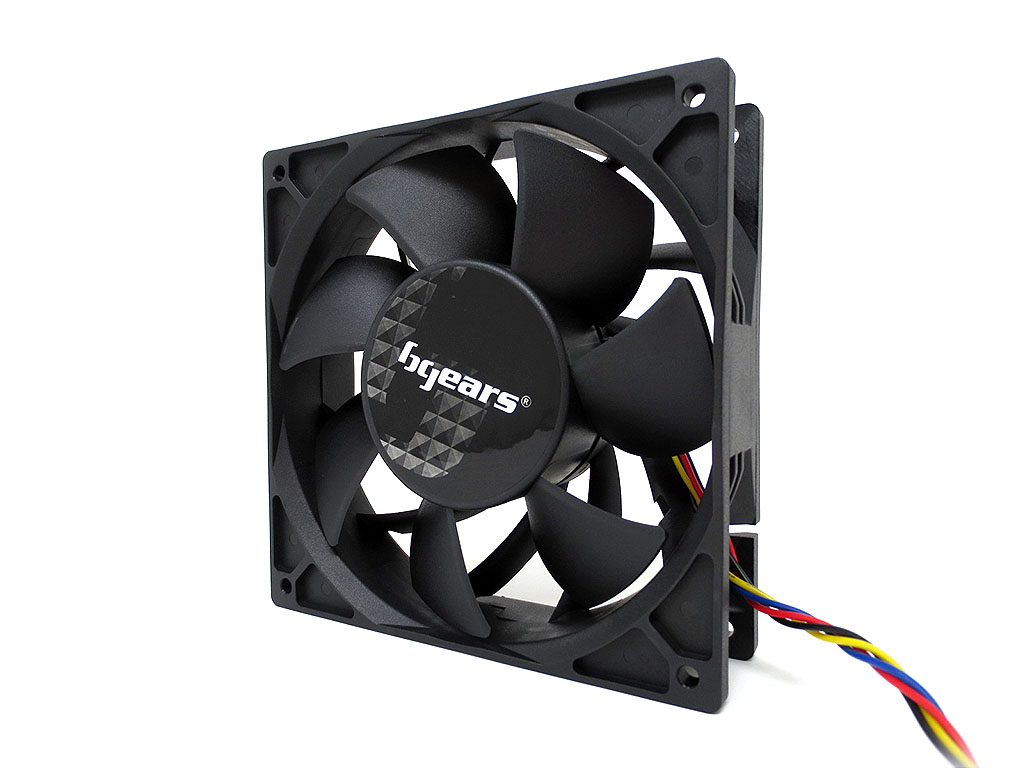

- Mini 4 pin 4 wires connector for PWM version (b-Blaster 140×38 12V)
- Includes 3 to 4 pin Molex adapter for direct connect to Power Supply for 80, 90, 120 and 140mm

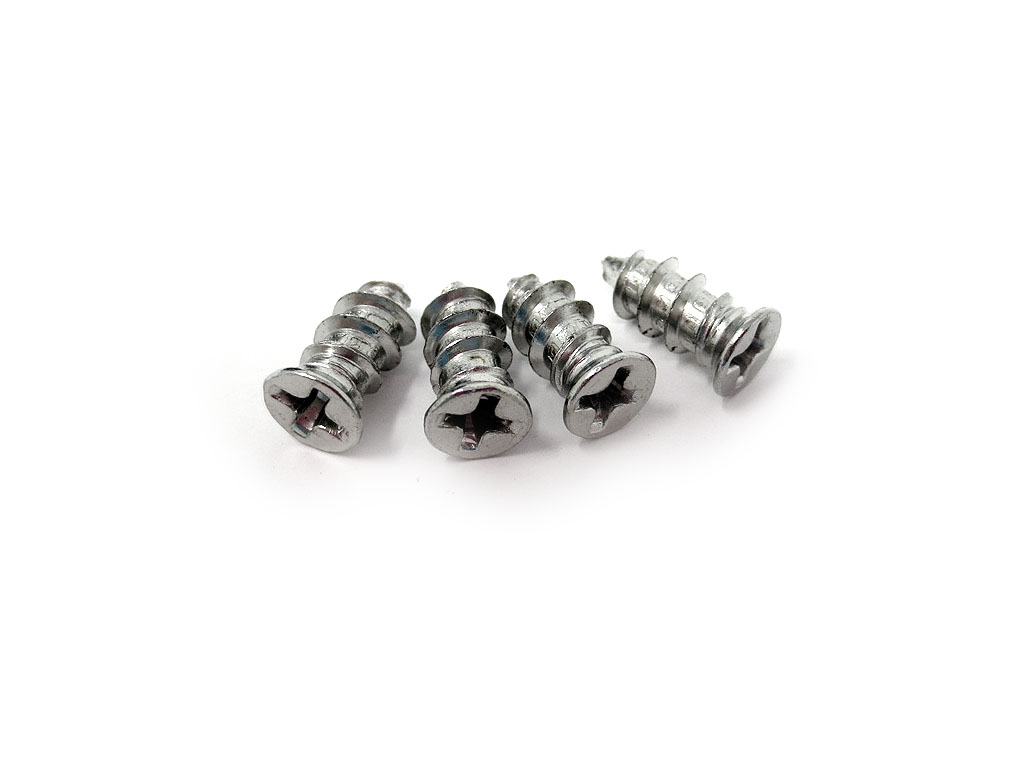

- 4 Screws included

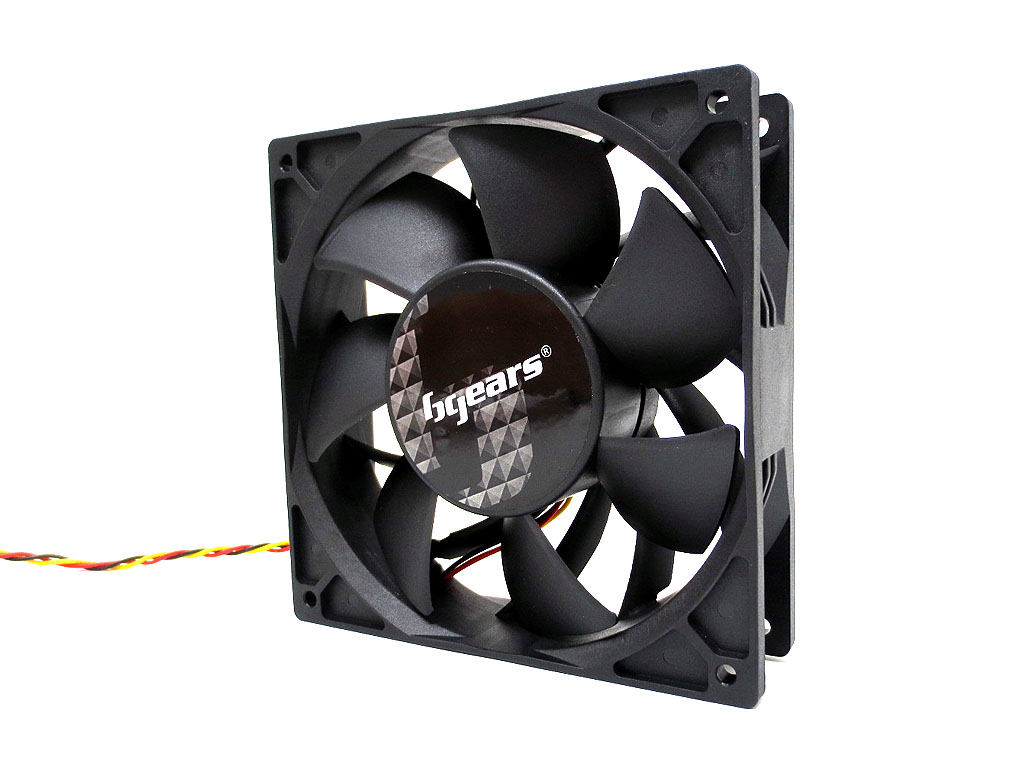

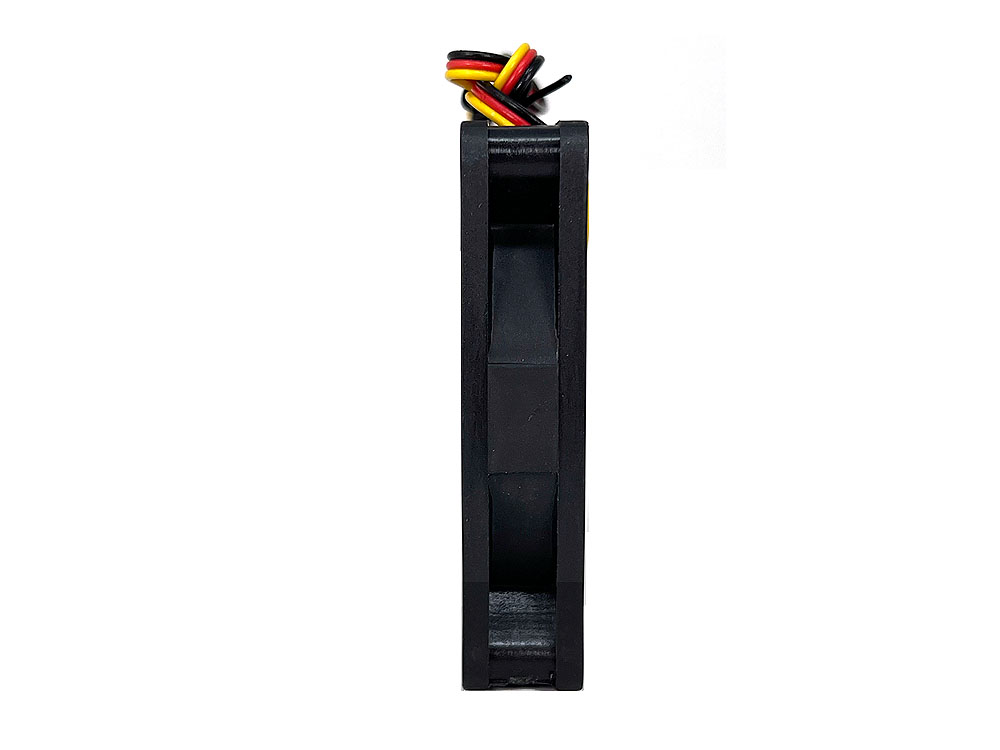

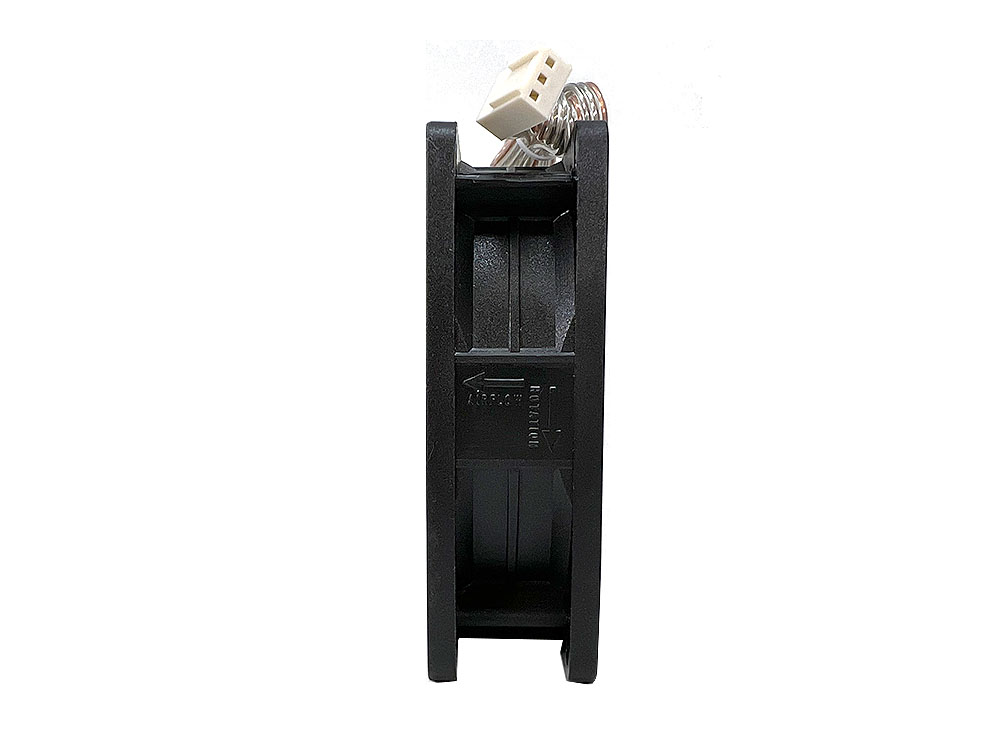

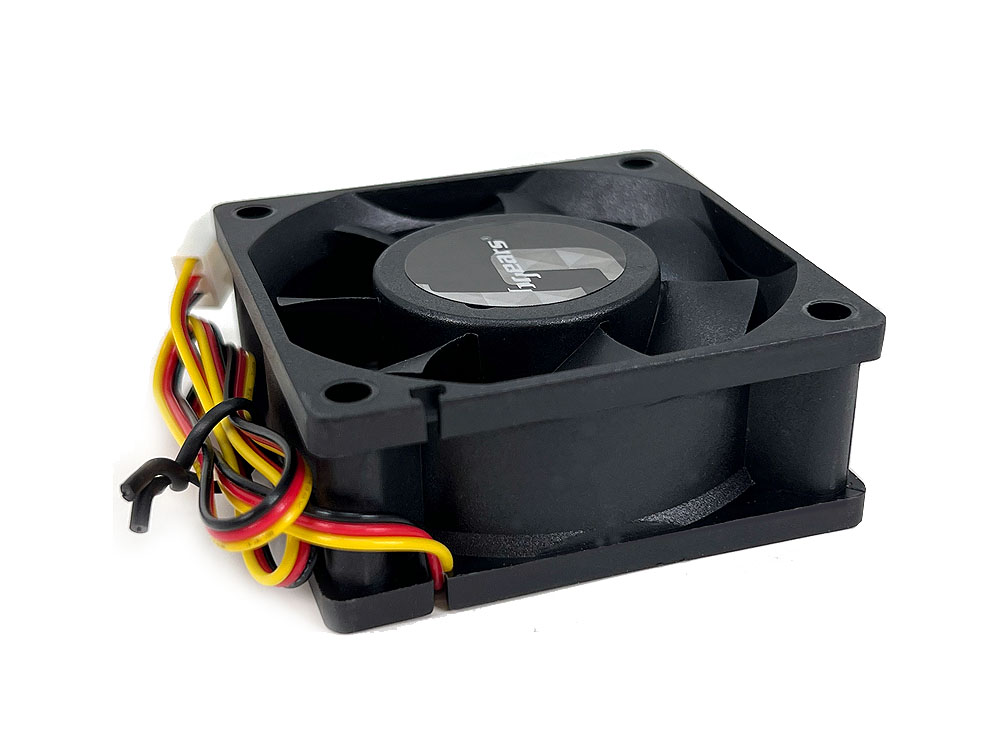

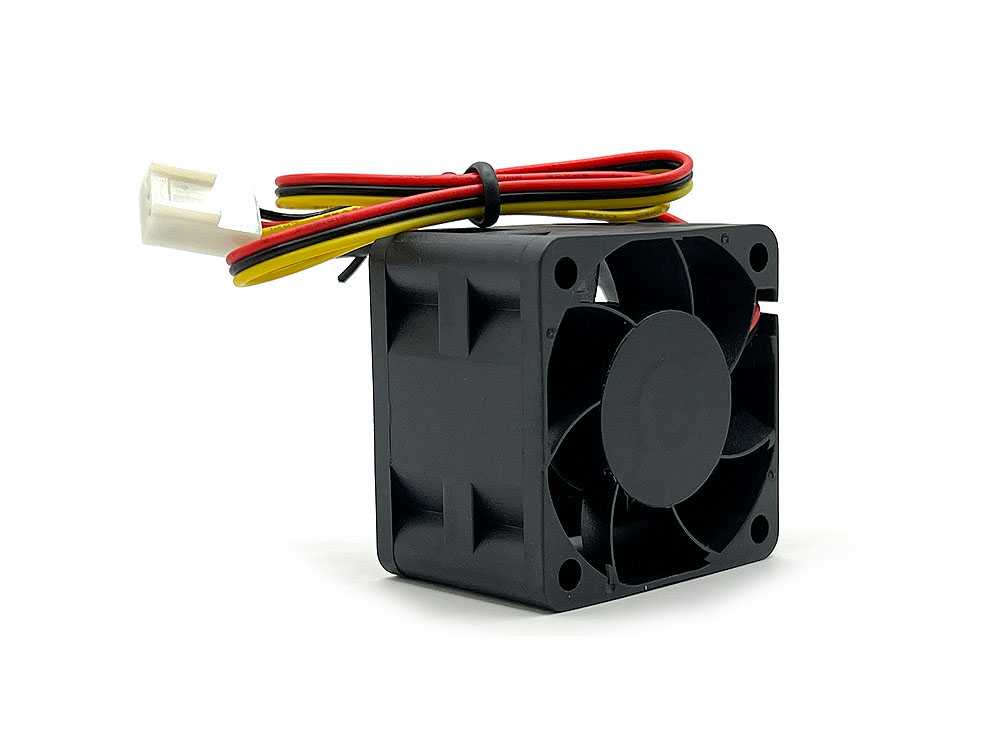

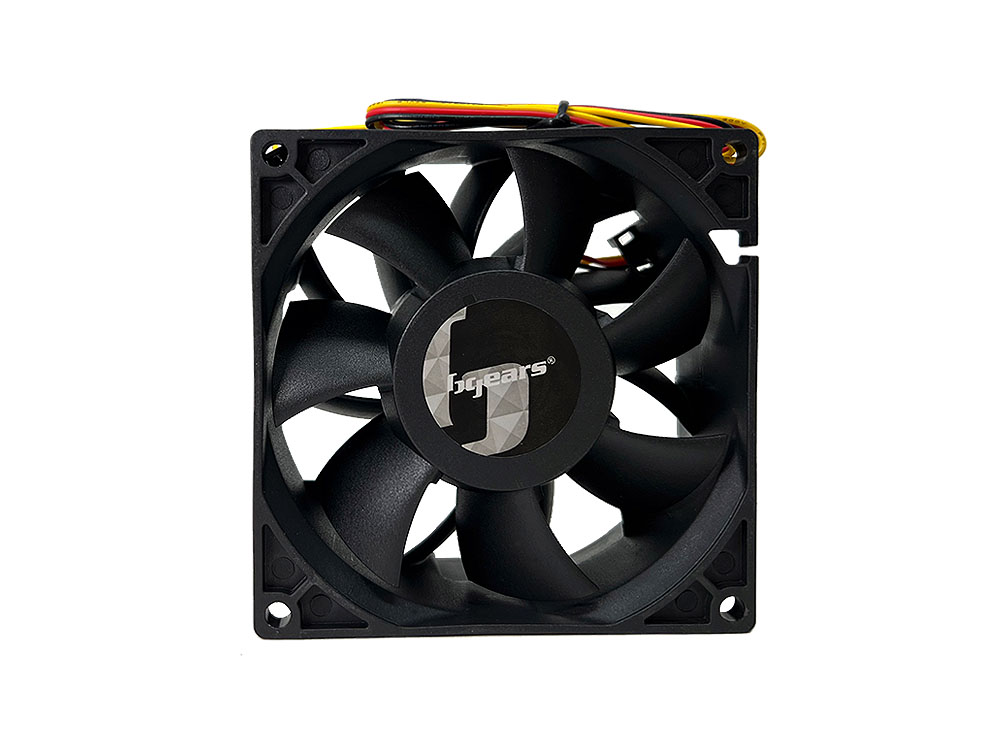

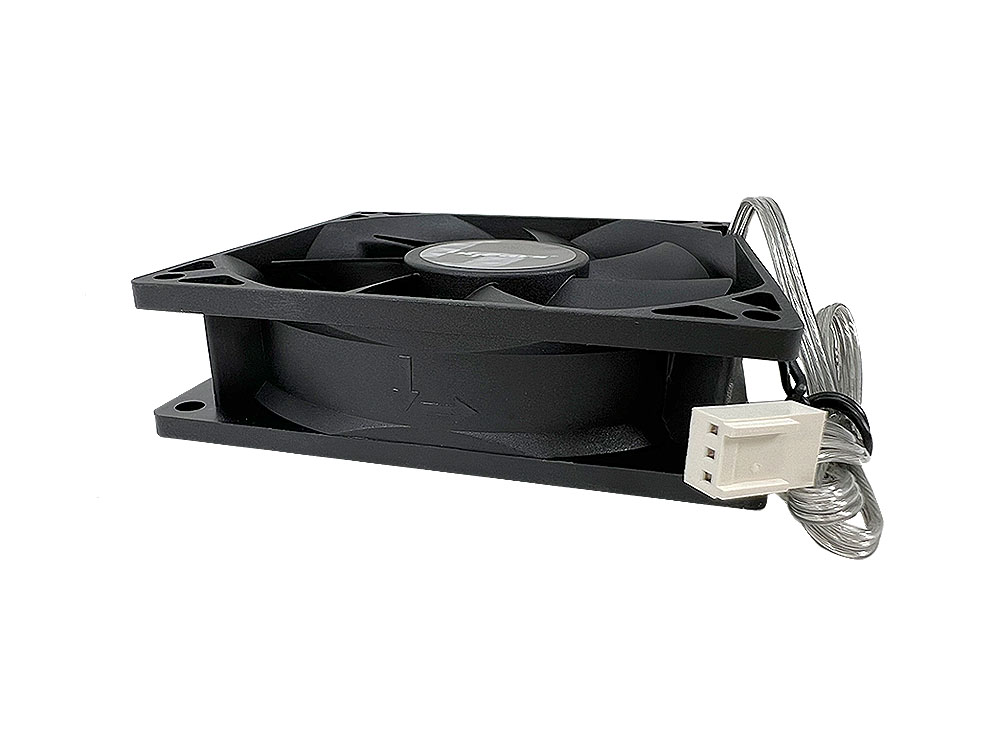

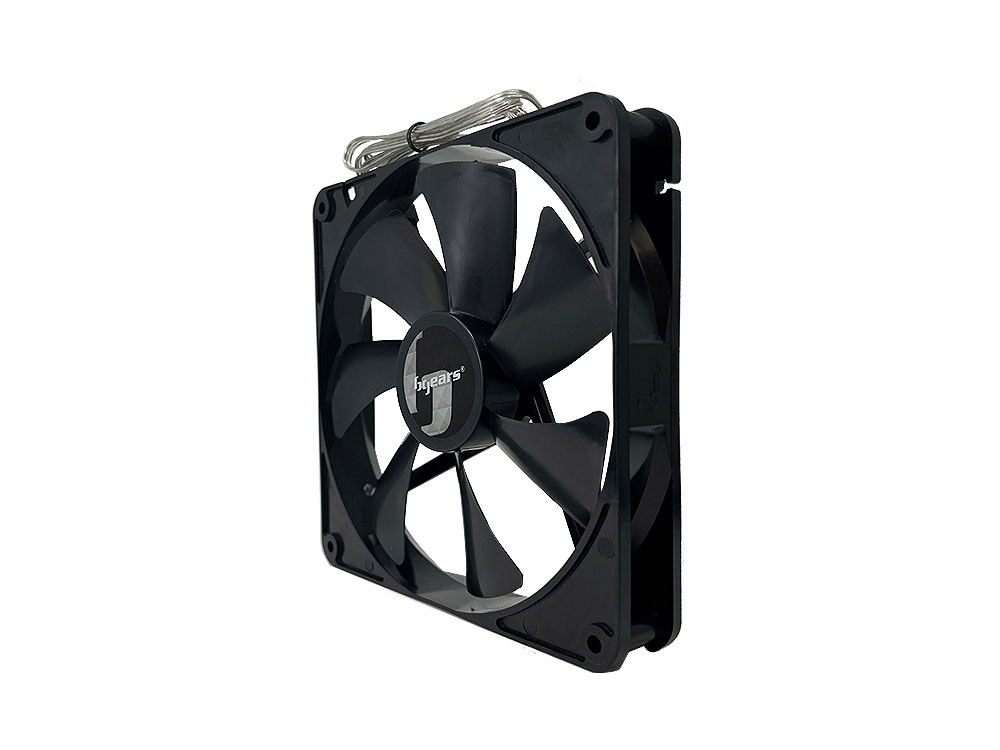

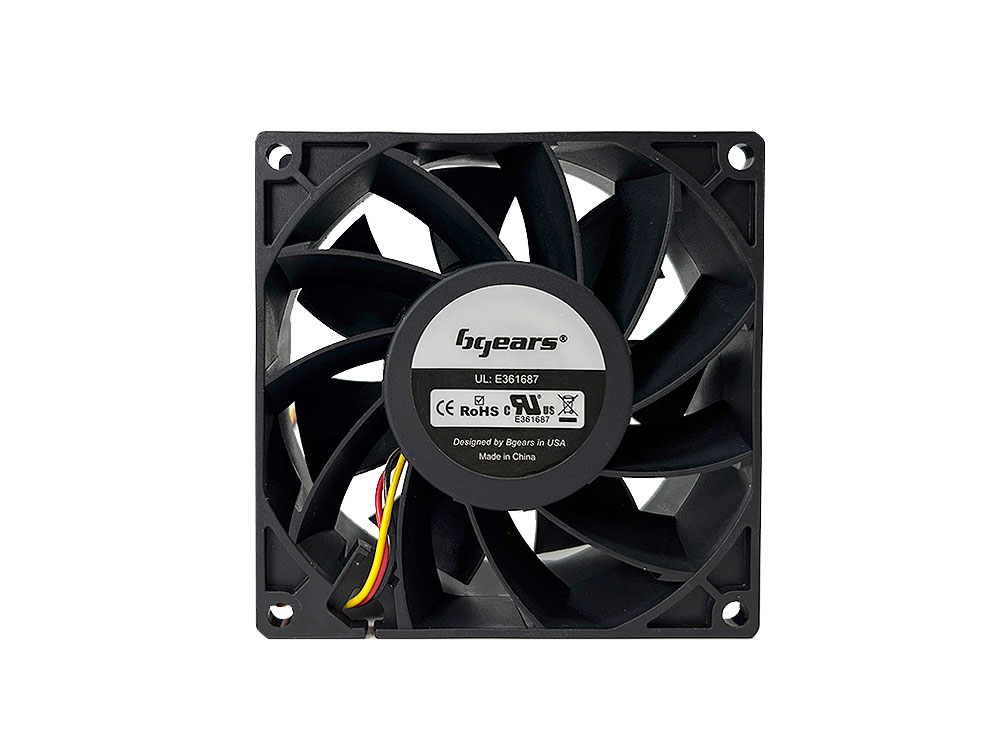

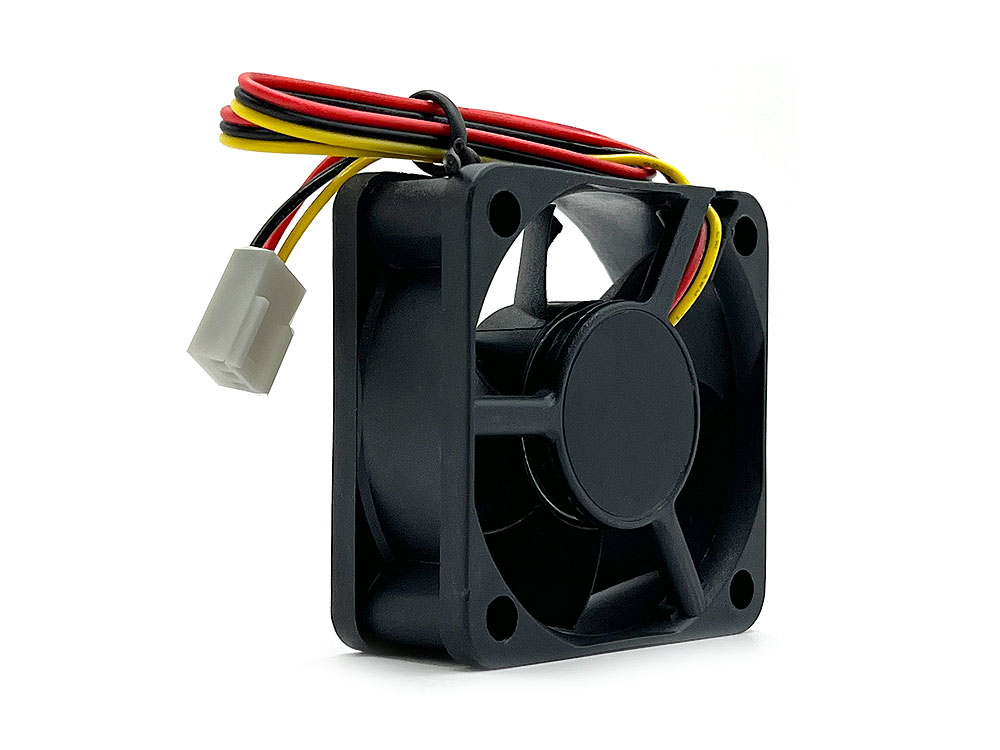

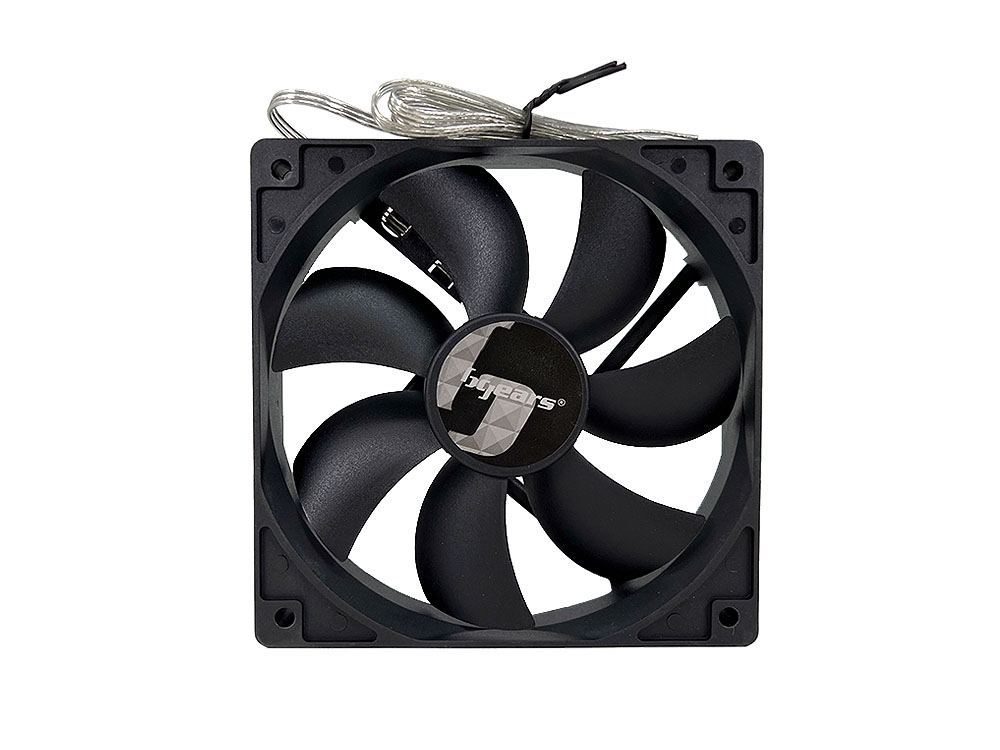

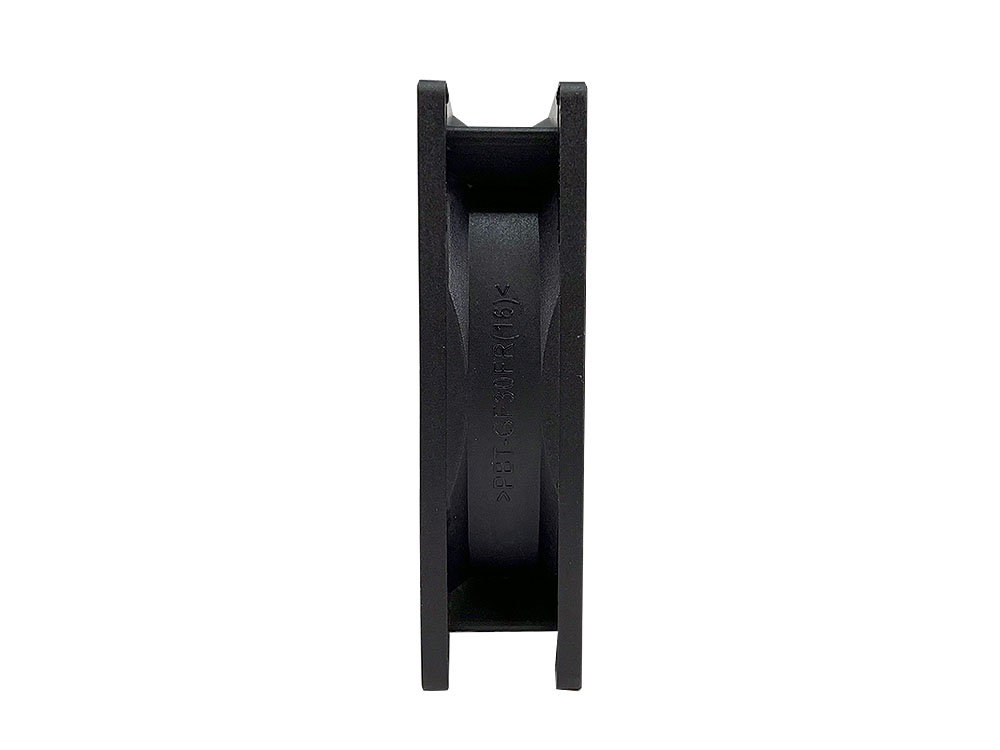

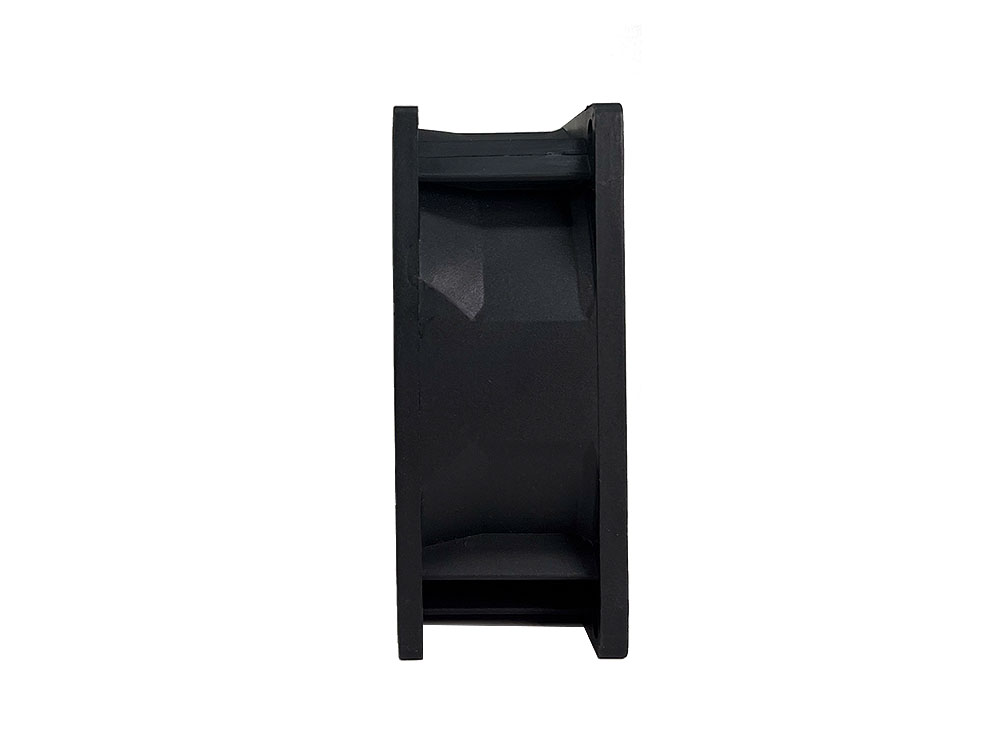

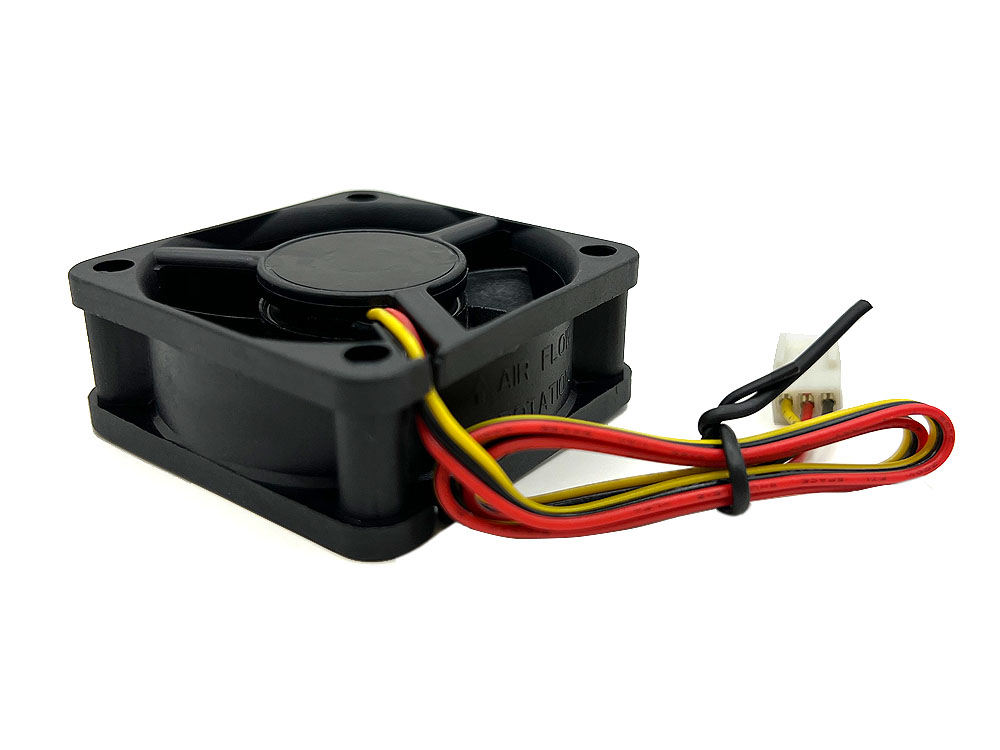

- Now available in 40, 50, 60 70, 80, 90, 90×38, 120, 120×38, 140, 140×38 12V and 140×38 24V
Models / Colors and Accessories

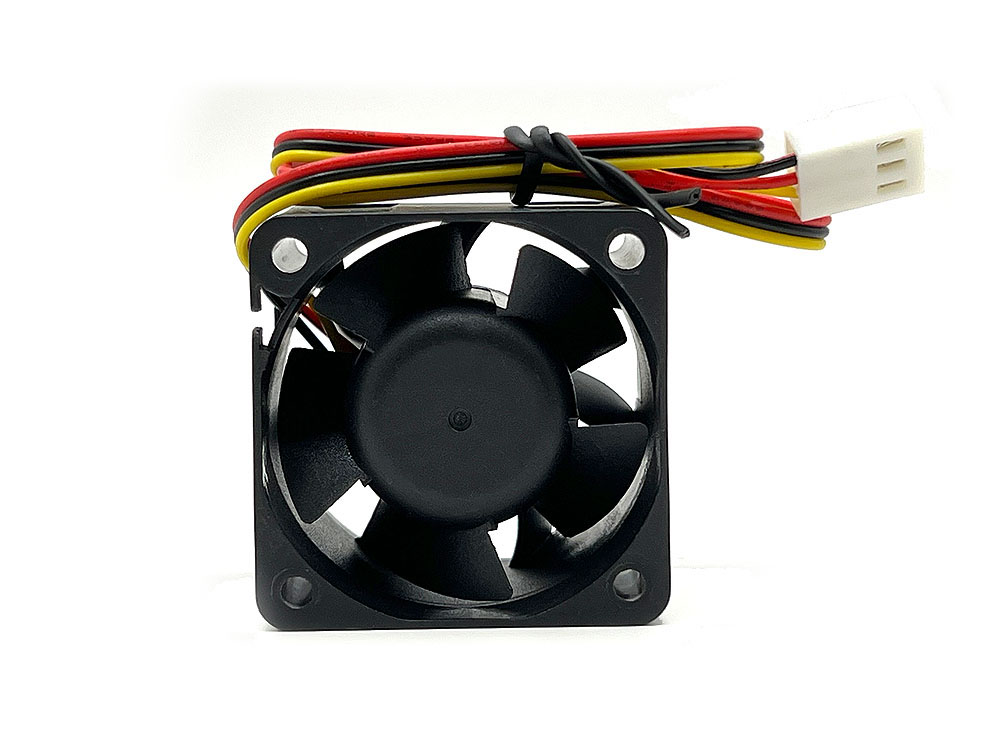

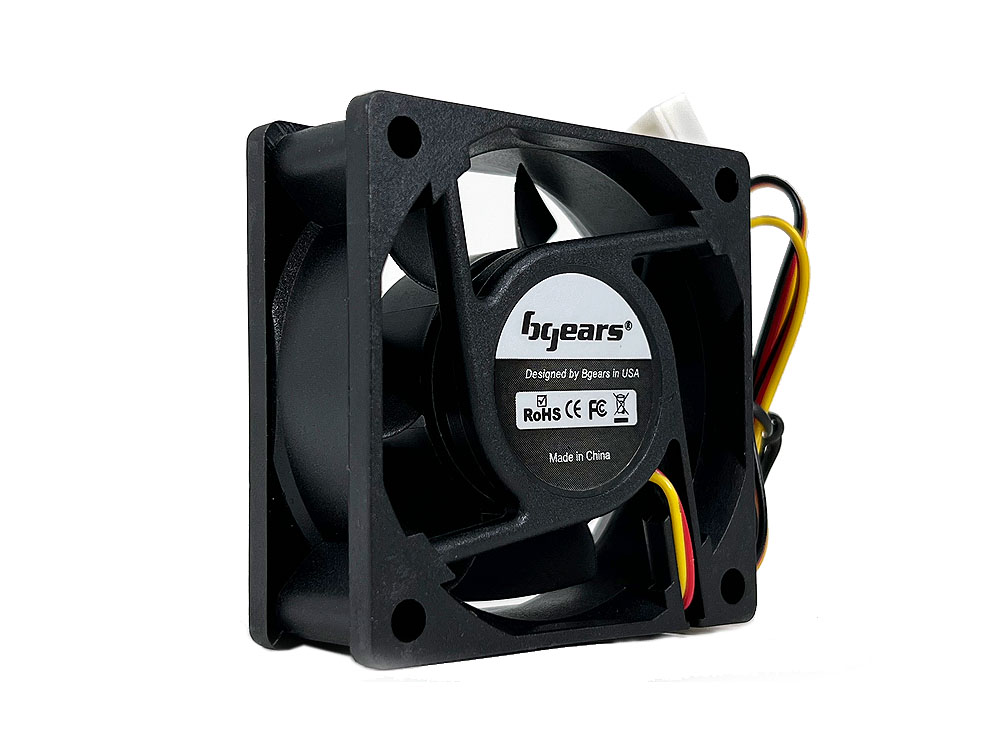

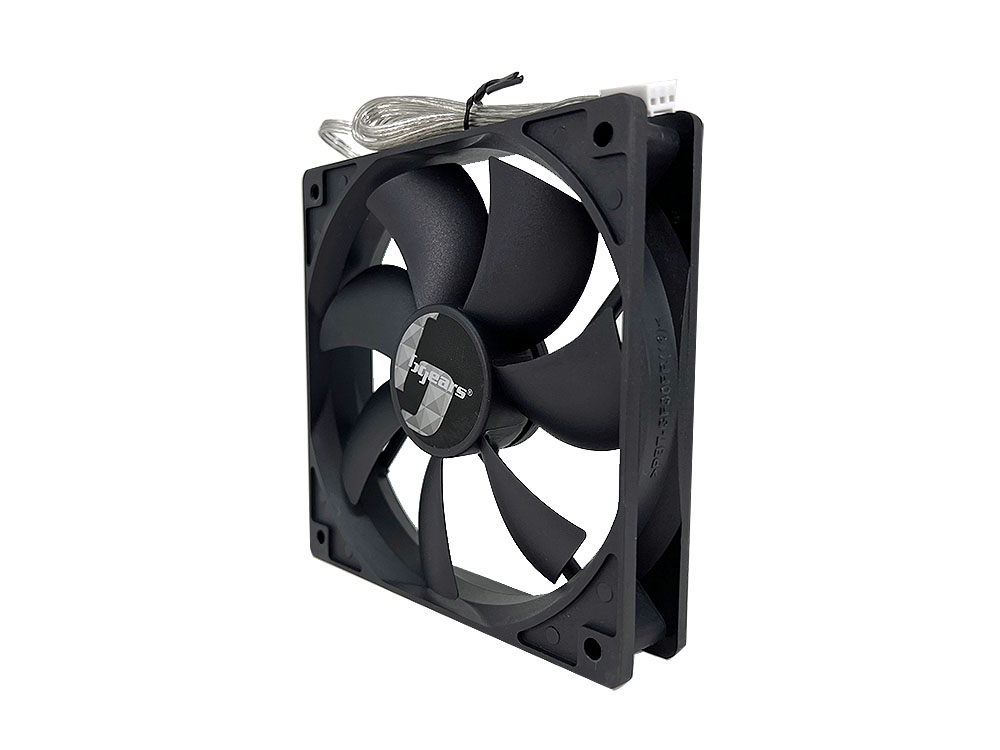

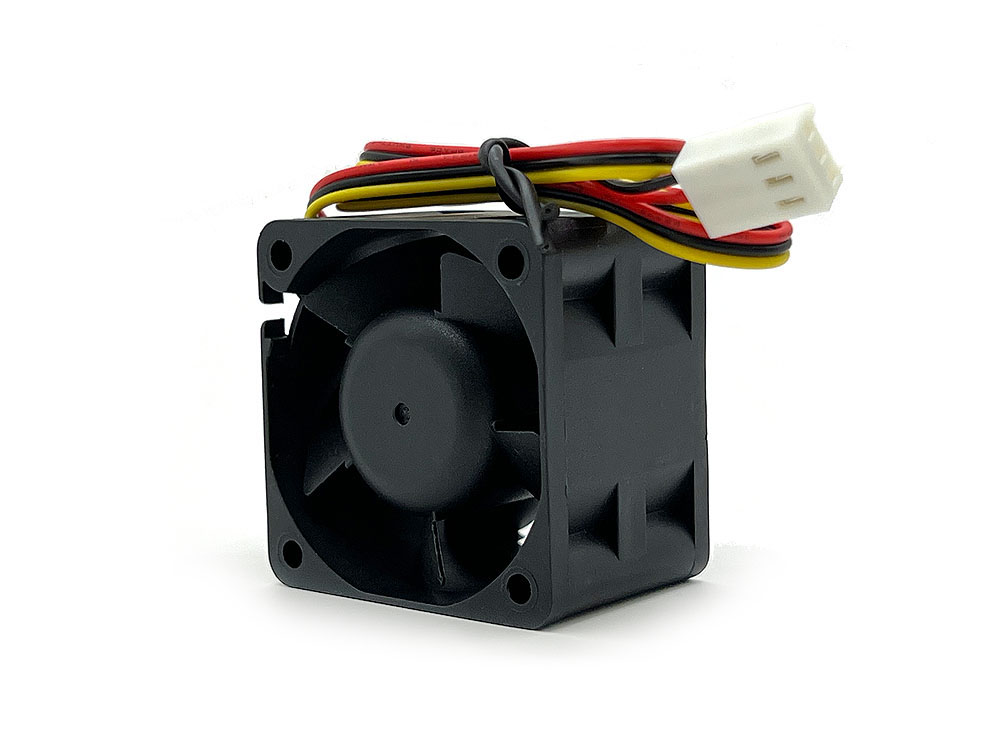

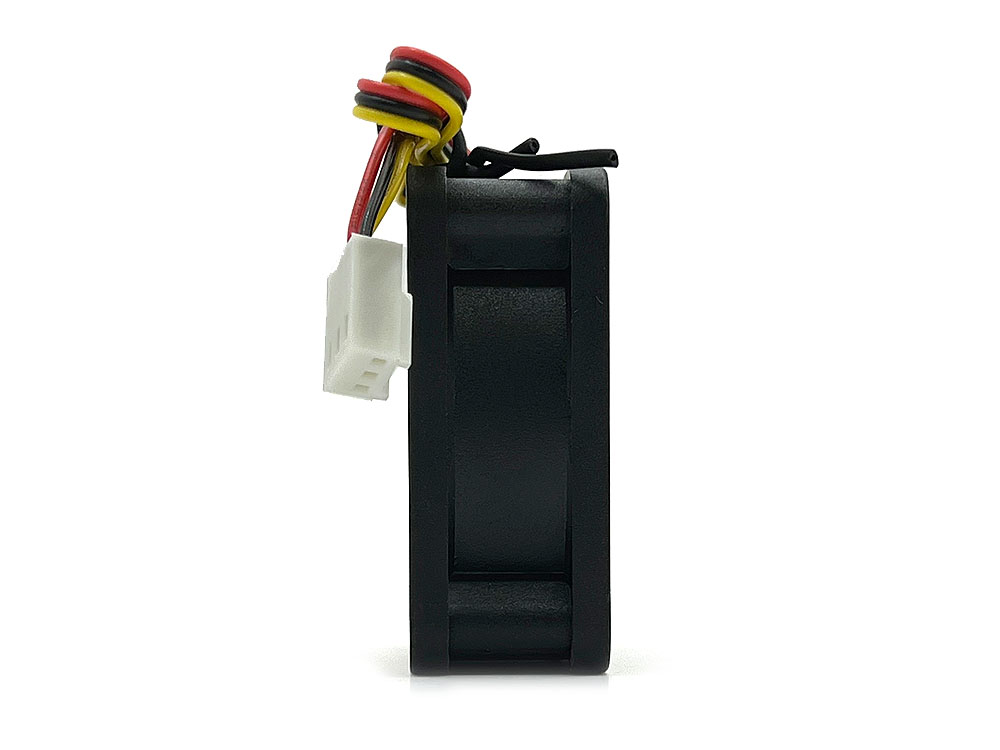

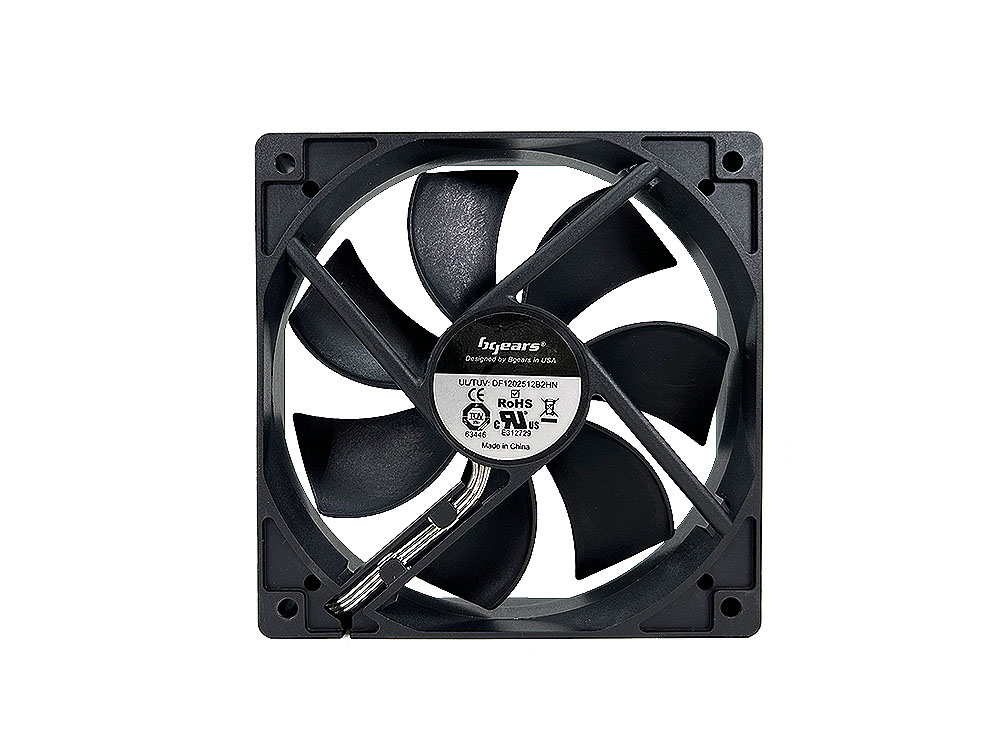

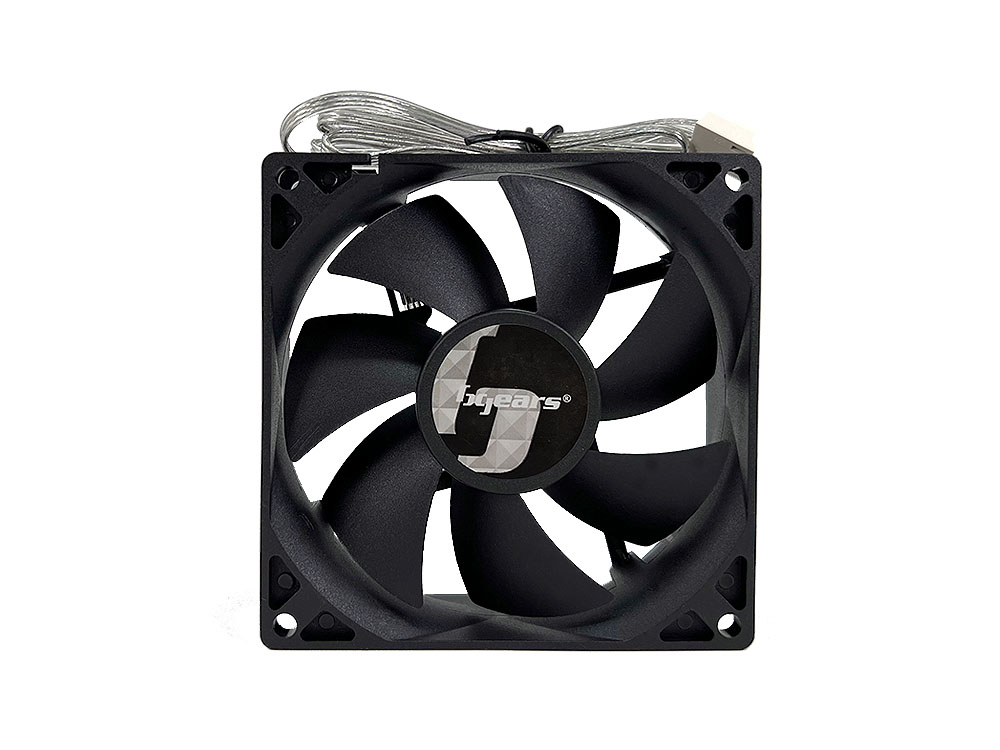

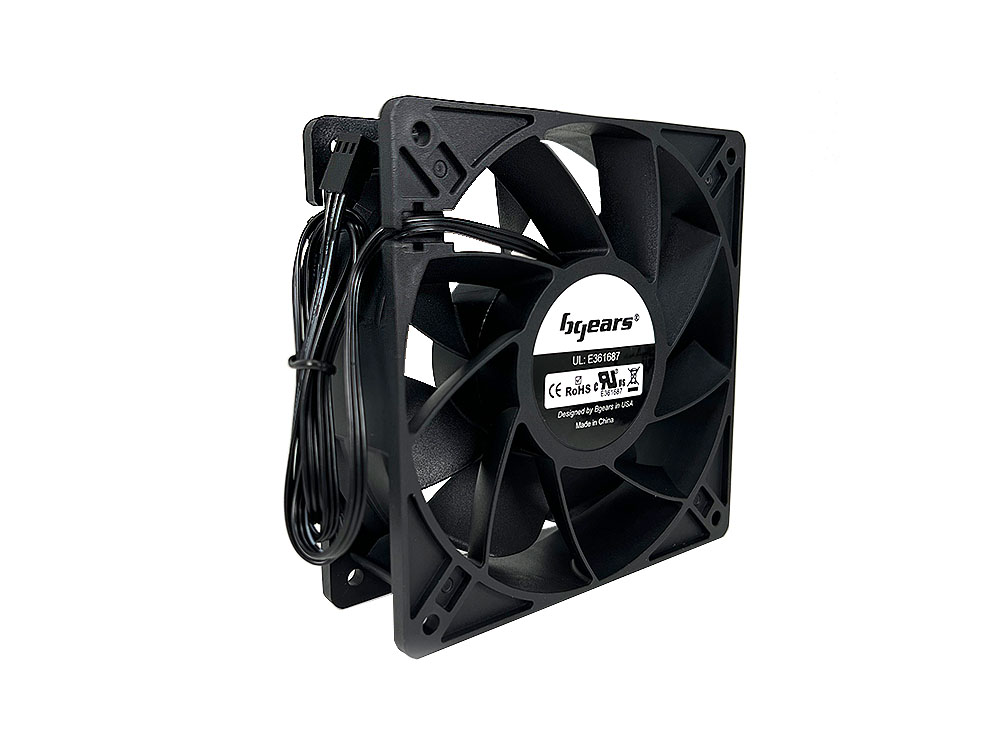

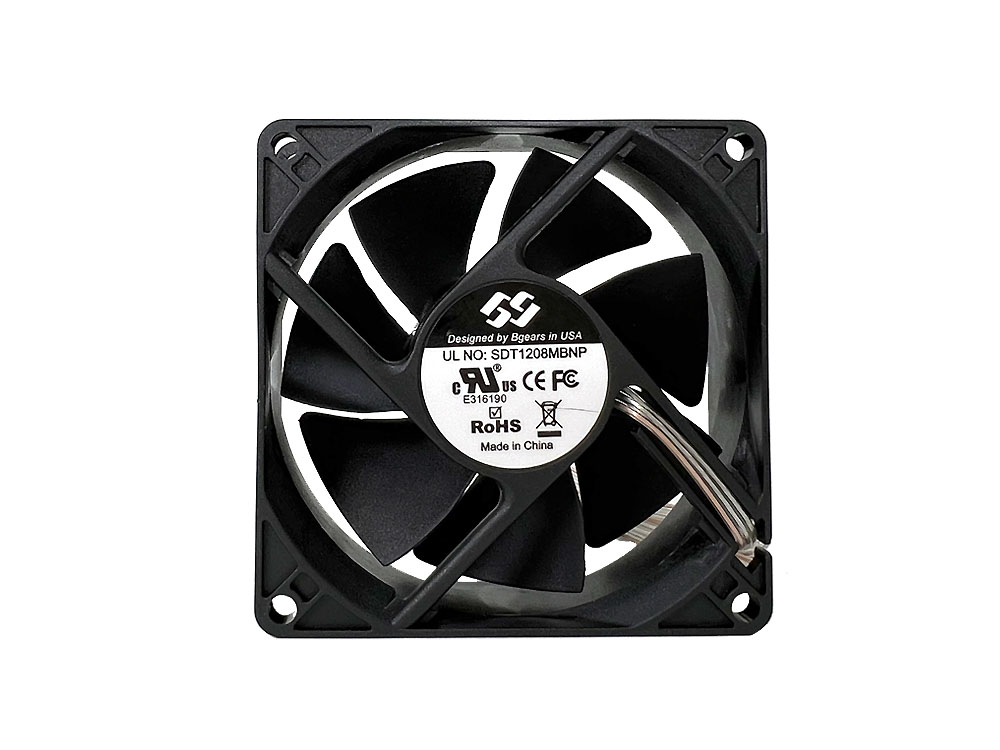

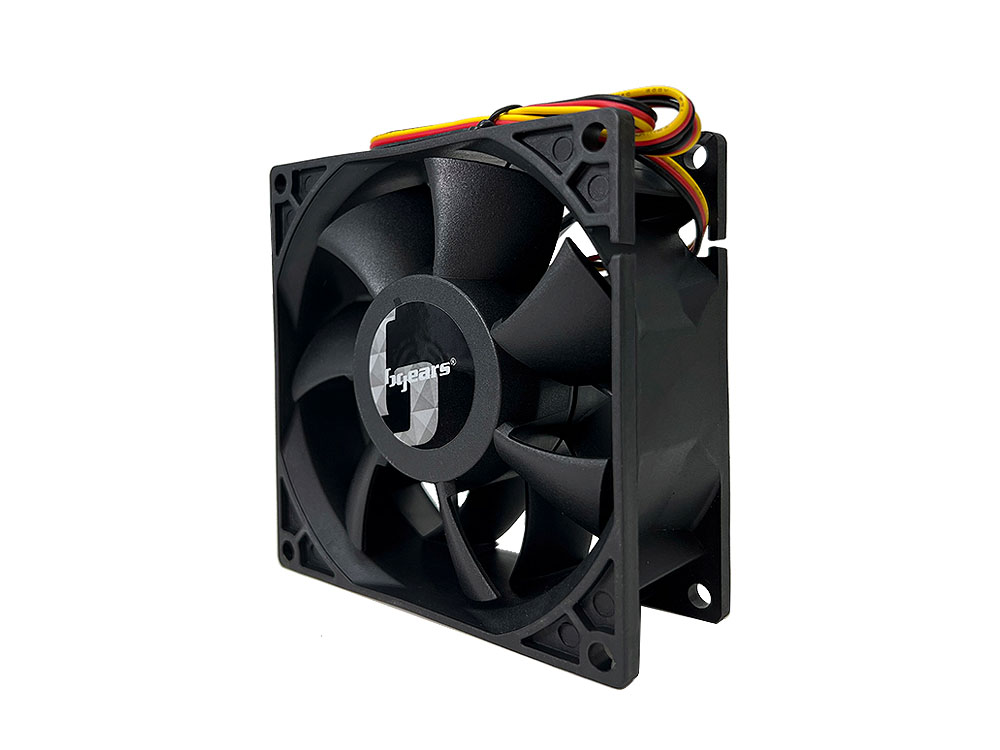

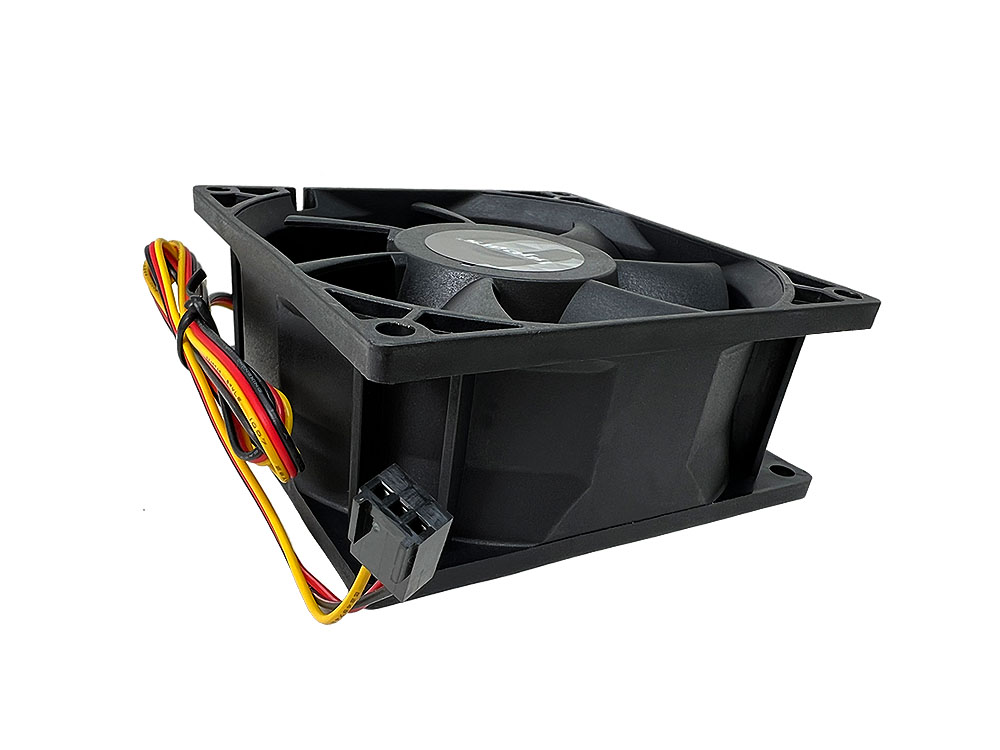

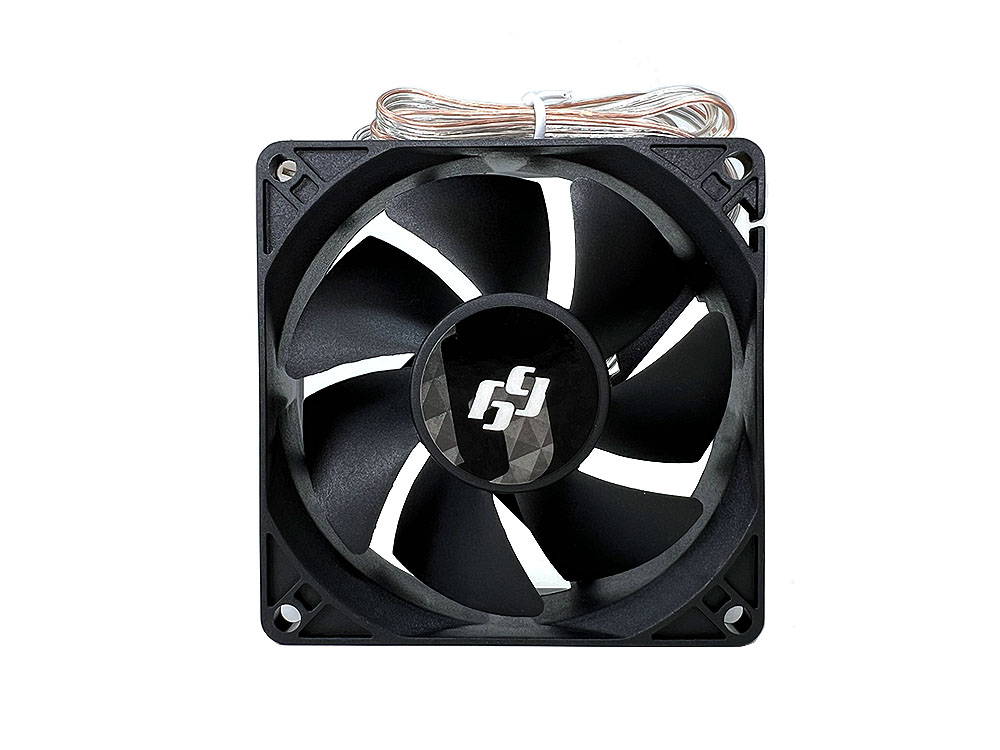

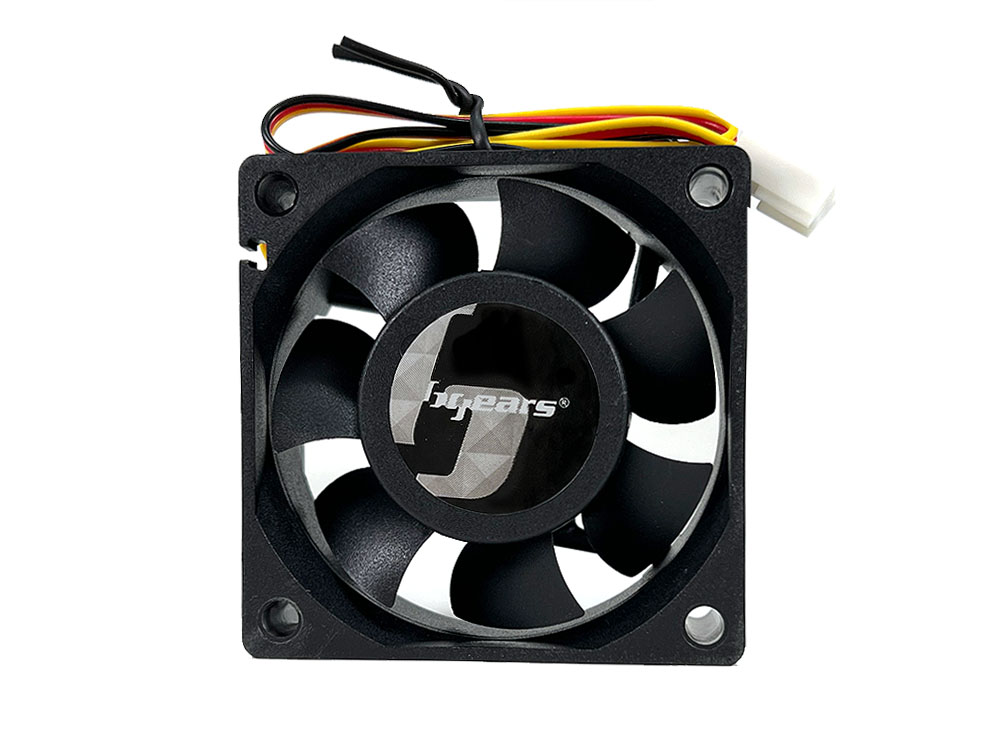

- b-blaster 40/50/60/70/80/90/90×38/120/120×38/140mm / Black Frame and No LED
- All models include a pack of 4 screws
- Include one 3 to 4 pins connector and 4 screws for b-Blaster 80 and 90mm
| b-Blaster Series | 40mm | 50mm | 60mm | 70mm | 80mm | 90mm | 90x38mm | 120mm | 120mmx38 | 140mm | 140x38mm 12V | 140x38mm 24V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UPC Code: | 853704001442 | 853704001459 | 853704001466 | 853704001473 | 853704001534 | 853704001541 | 853704001510 | 853704001558 | 853704001527 | 853704001565 | 853704001831 | 853704001411 |
| Product Number: | BG01442 | BG01459 | BG01466 | BG01473 | BG01534 | BG01541 | BG01510 | BG01558 | BG01527 | BG01565 | BG01831 | BG01411 |
| Speed(RPM): | 9000 | 5000 | 5500 | 4500 | 3500 | 3500 | 4500 | 2000 | 4500 | 1800 | 1200-5200 | 5200 |
| Current(A): | 0.17 | 0.185 | 0.17 | 0.26 | 0.34 | 0.50 | 0.718 | 0.32 | 1.52 | 0.45 | 2.0 | 1.22 |
| Power(W): | 2.04 | 2.22 | 2.04 | 3 | 4.08 | 6.00 | 8.616 | 3.84 | 18.24 | 5.40 | 24.0 | 29.28 |
| Airflow(CFM): | 17 | 17 | 40 | 48 | 62 | 78 | 108 | 103.00 | 218 | 103.00 | 308 | 308 |
| Pressure(mmH20): | 8.6 | 3.6 | 17.8 | 2.3 | 4.0 | 5.50 | 13.5 | 3.00 | 7.1 | 3.50 | 31.08 | 31.08 |
| Voltage(V): | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 24 |
| Noise(dbA): | 36 | 26 | 39 | 24 | 39 | 39 | 45 | 35 | 45 | 36 | 60.7 | 70 |

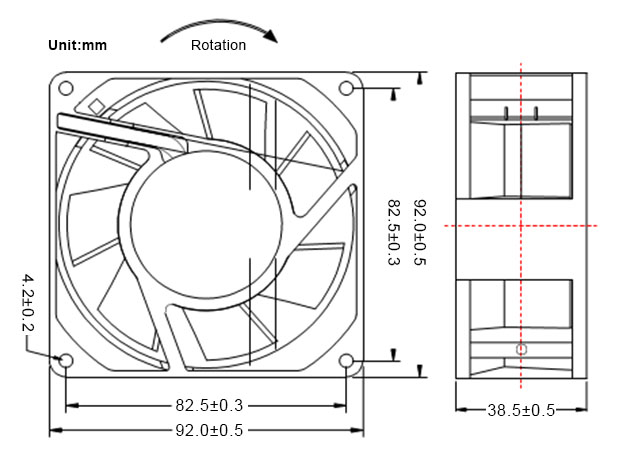

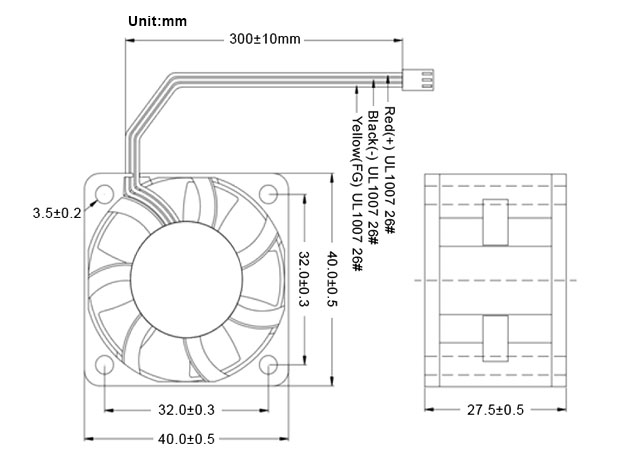

| Frame Size(mm): | 40x40x28 | 50x50x20 | 60x60x25 | 70x70x15 | 80x80x25 | 90x90x25 | 90x90x38 | 120x120x25 | 120x120x38 | 140x140x25 | 140x140x38 | 140x140x38 |
| Bearing: | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball | 2 Ball |
| LED: | None | None | None | None | None | None | None | None | None | None | None | None |
| 3 to 4 pin Molex adapter: | Not included | Not included | Not included | Not included | Included | Included | Not included | Included | Not included | Included | Not included | Not included |
Connection

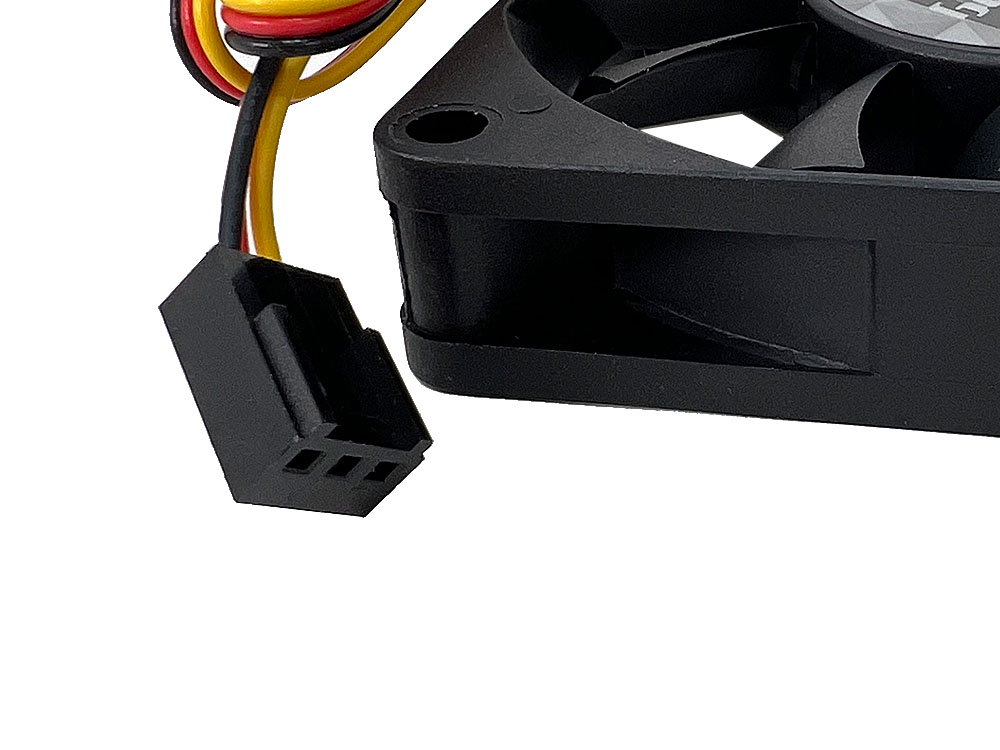

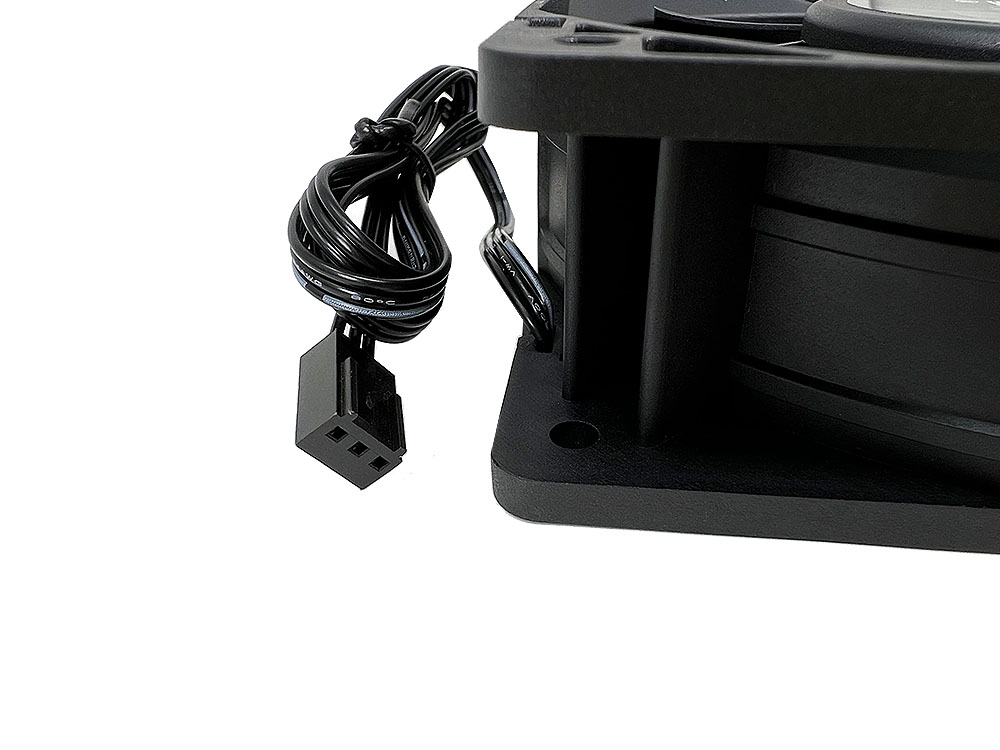

The Bgears Fan (Depending on the model) comes with either a 3-pin connector (Like the b-Blaster Series), or 4-pin PWM (Like the b-PWM series) fan connector for fully automatic speed control via your mainboard’s 4-pin PWM fan headers.

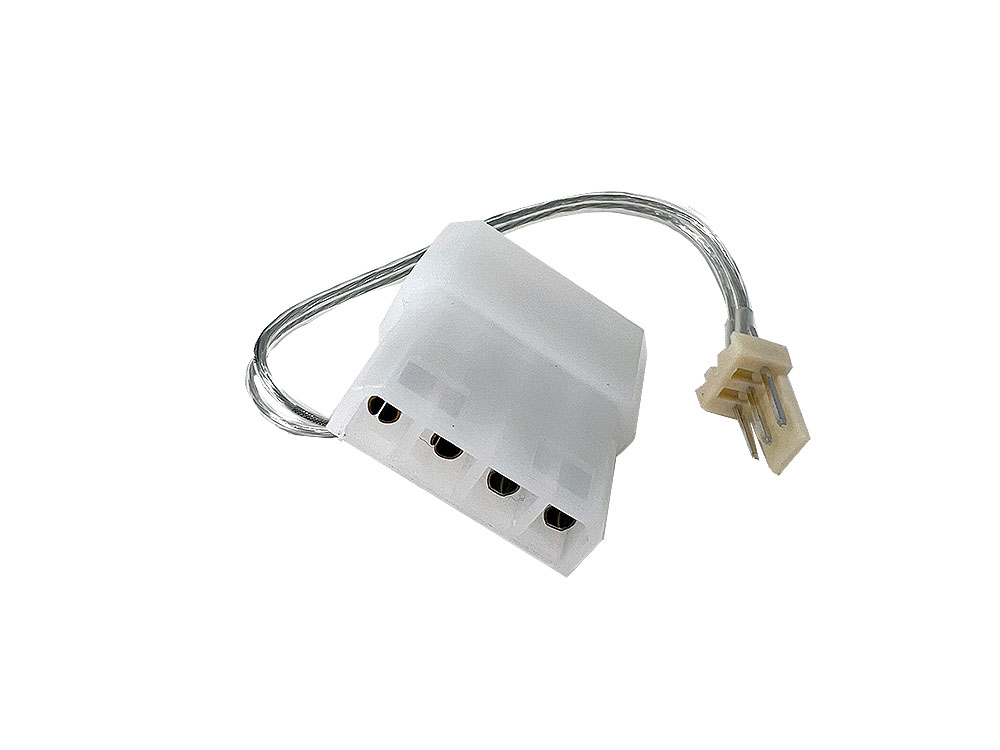

Please check the model you have purchased to verify the type of connector the fan is designed for. The package also come with a 3-pin to 4-pin Molex adapter. This Adapter is to convert the existing 3-pin or 4pin fan connector on the fan into a 4-pin Molex connector so it can be connected directly to a power source that come in 4-pin Molex type connector.
