b-Blaster AC 100V-125V Series
Take a peek inside our COOLING world
b-Blaster AC Series
100V-125V / 2 Ball Bearing
Extreme Airflow Up to 123 CFM
Features
Models / Colors and Accessories
Features
- AC 100 – 125V fan designed for cooling and ventilation projects.
- Heavy Duty Aluminum Frame.
- 2 Ball Bearing for Extended Life and High Performance.
- Impedance Protected to avoid overheat if fan is stuck.
- Extreme Speed with Excellent Airflow.

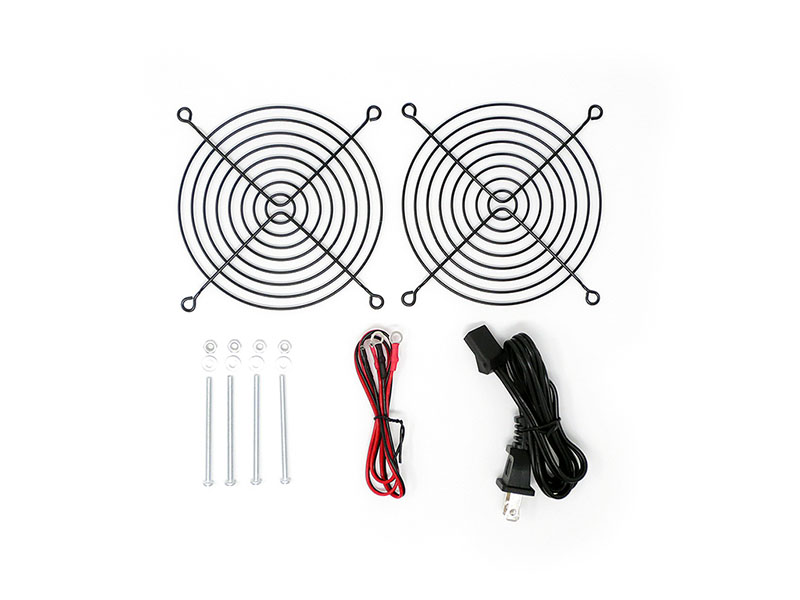

- Include 2 x Fan Guards, 1 x USA Non-Polarized 2 Prong AC Power Cord (4 ft), 1 x 2 pin wire-lead, and 1 x Screws Set (60mm screws x 4; Nuts x 4; Washers x 4)

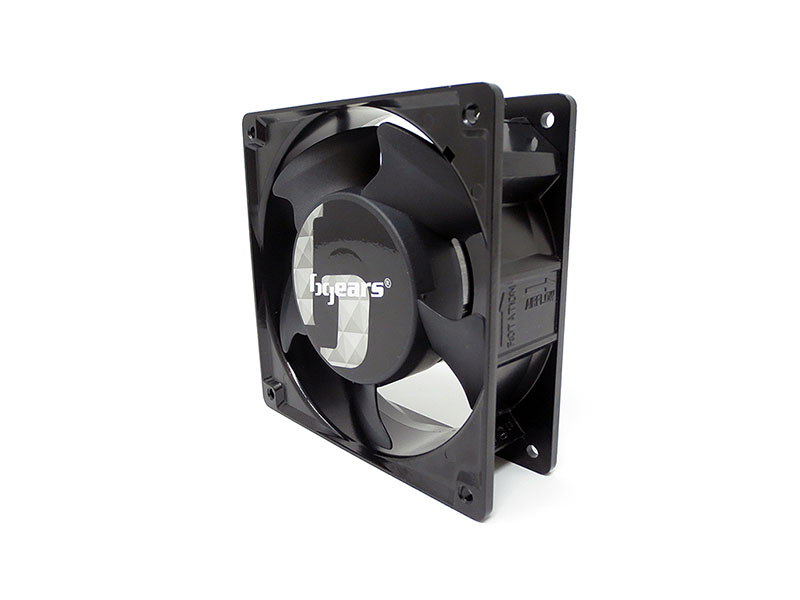

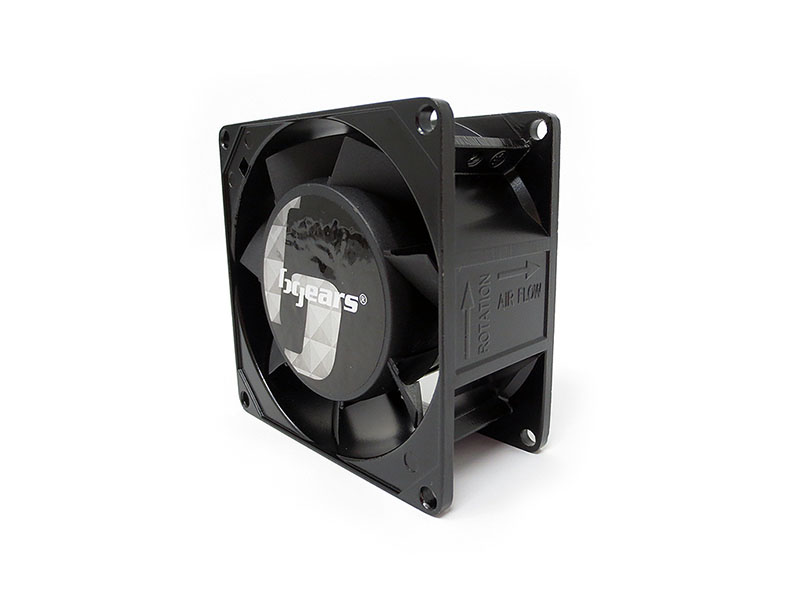

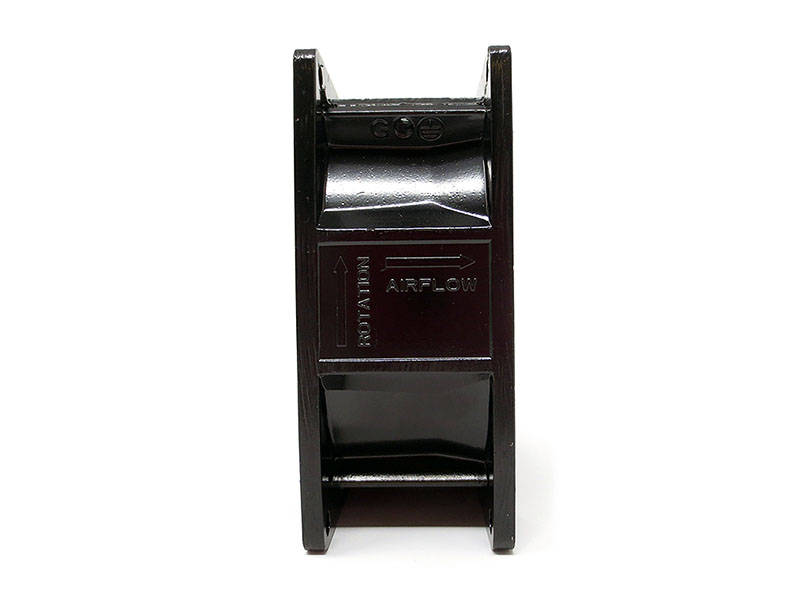

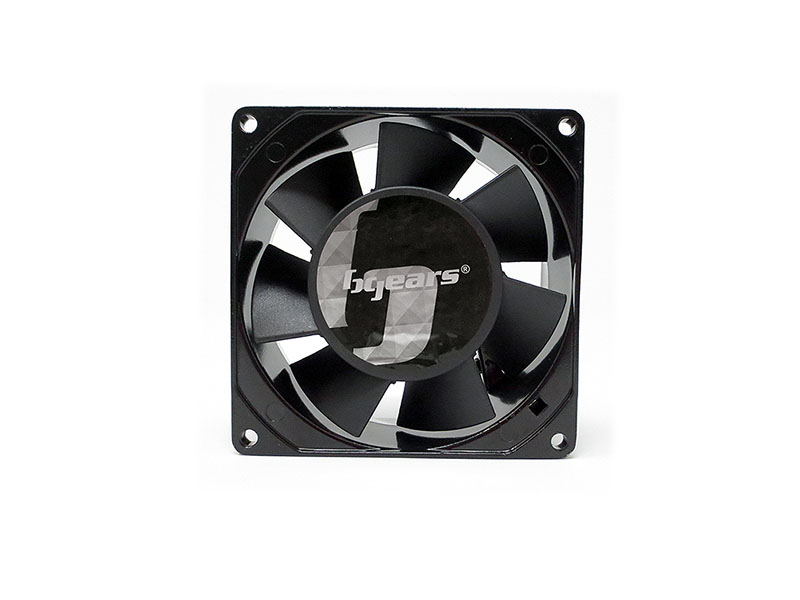

- Available in 80x38mm, 90x38mm and 120x38mm
- Warning: This high speed fan is designed for high airflow performance; therefore, the noise level can be high for some applications.
Models / Colors and Accessories

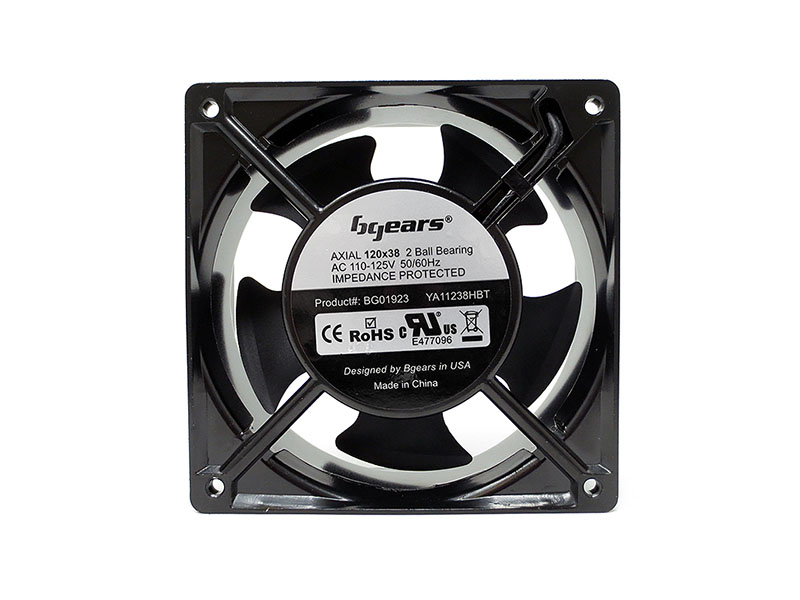

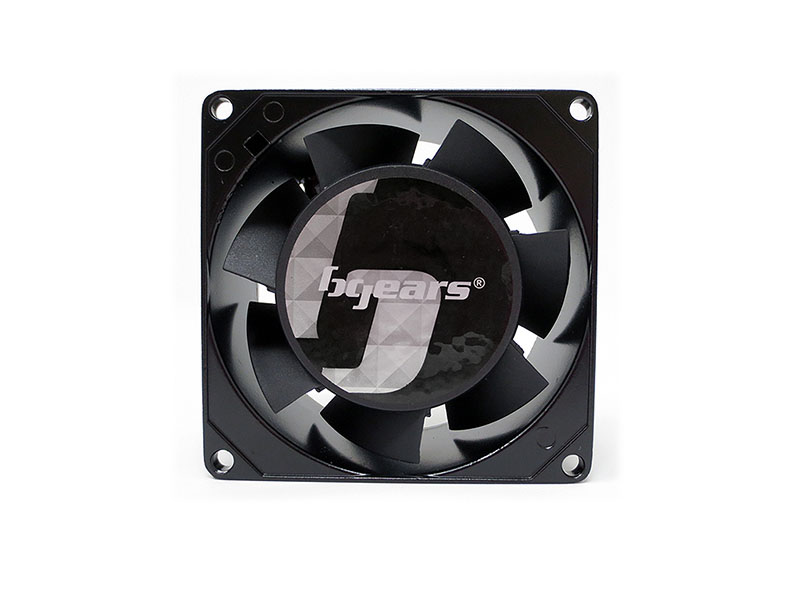

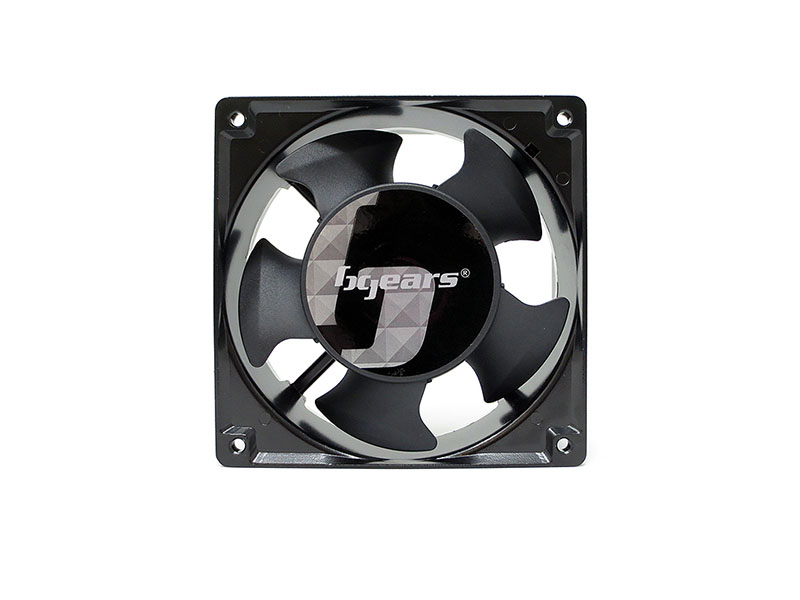

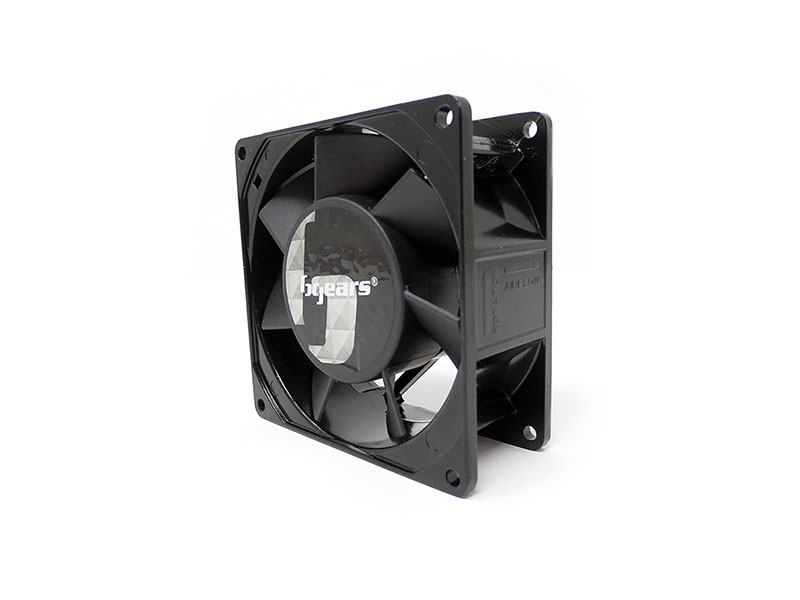

- b-blaster AC 100V-125V 80×38/90×38/120x38mm / Black Frame and No LED
- Include 2 x Fan Guards
- Include 1 x USA Non-Polarized 2 Prong AC Power Cord(4ft)
- Include 1 x 2 pin wire-lead
Include 1 x Screw Set (60mm screws x 4; Nuts x 4; Washers x 4)
| b-Blaster AC 100-125V | 80x38mm | 90x38mm | 120x38mm |
|---|---|---|---|
| UPC Code: | 853704001930 | 853704001916 | 853704001923 |

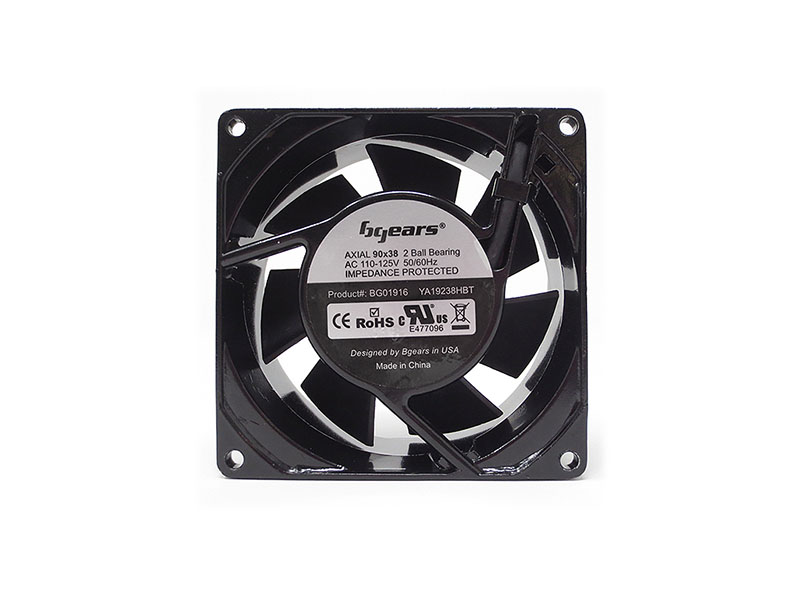

| Product Number: | BG01930 | BG01916 | BG01923 |
| Speed(RPM): | 2900±10% | 2700±10% | 2800±10% |
| Current(A): | 0.21 | 0.18 | 0.22 |
| Power(W): | 24.2 | 20.7 | 25.3 |
| Airflow(CFM): | 33 | 25.3 | 123 |
| Pressure(mmH20): | 3.16 | 4.75 | 8.4 |
| Voltage(V): | 115 | 115 | 115 |
| Noise(dbA): | 30.5 | 36.7 | 44.8 |

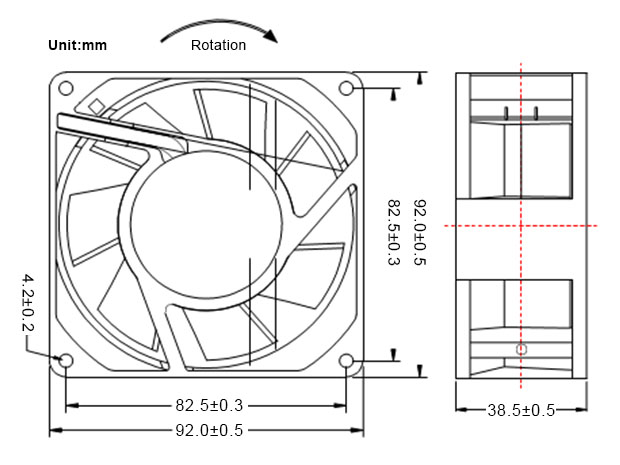

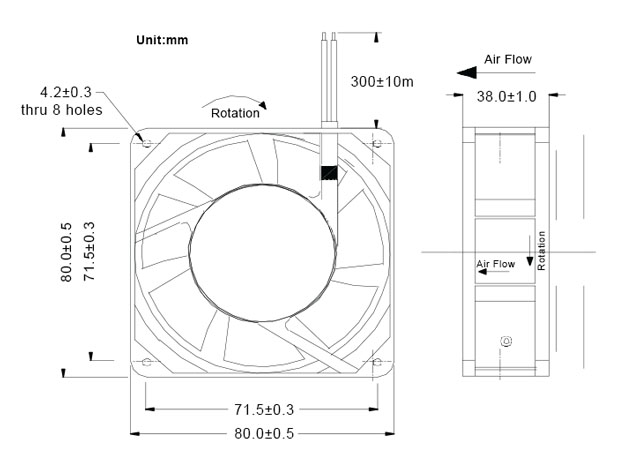

| Frame Size(mm): | 80x80x38 | 90x90x38 | 120x120x38 |
| Bearing: | 2 Ball | 2 Ball | 2 Ball |
| LED: | None | None | None |
