b-BlasterPWM
80 / 80x38 / 90 / 90x38 / 120 / 120x38 / 140 / 140x38mm
Take a peek inside our COOLING world
b-BlasterPWM
Features
Models / Colors and Accessories
Features
- PWM Fan Speed Control Function Design for On Demand Cooling Performance
- Bigger Speed Range Designed for Better and Precise On Demand Cooling Need.
- Massive Airflow of Up To 318 CFM
- Japanese 2 Ball Bearing Designed for Greater Stability at High Speed, and for Higher Performance with Extended Lifespan.
- Certified By: UL, FCC, CE, RoHS, WEEE, REACH
- Available in different sizes: 80 / 80×38 / 90 / 90×38 / 120 / 120×38 / 140 / 140x38mm
Models / Colors and Accessories
- Black

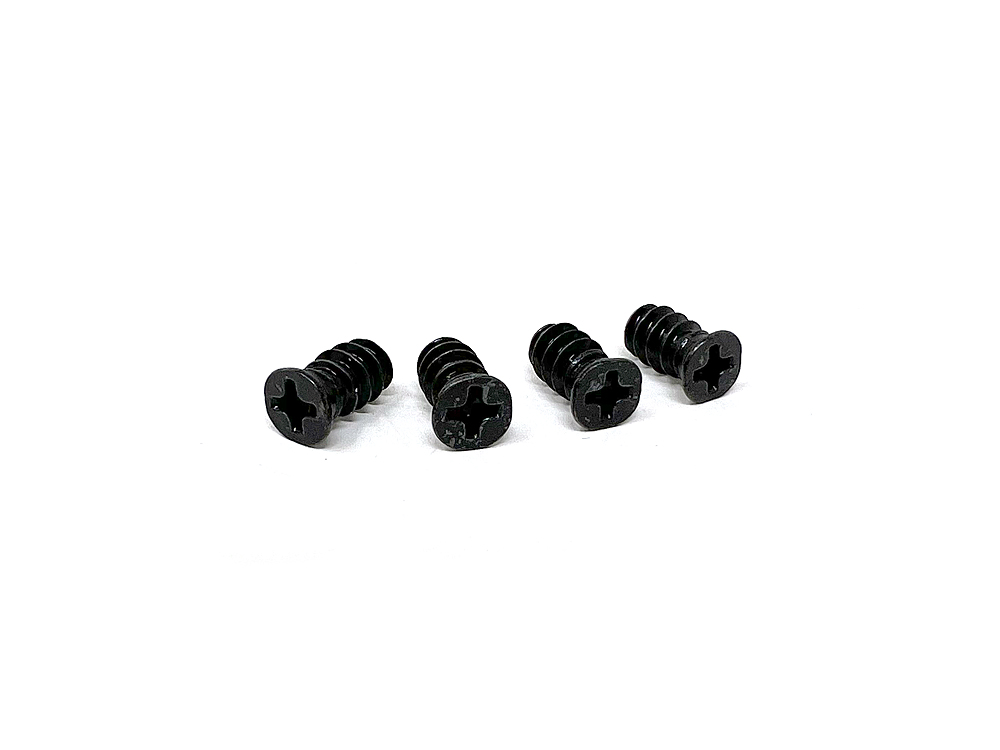

- 4 screws

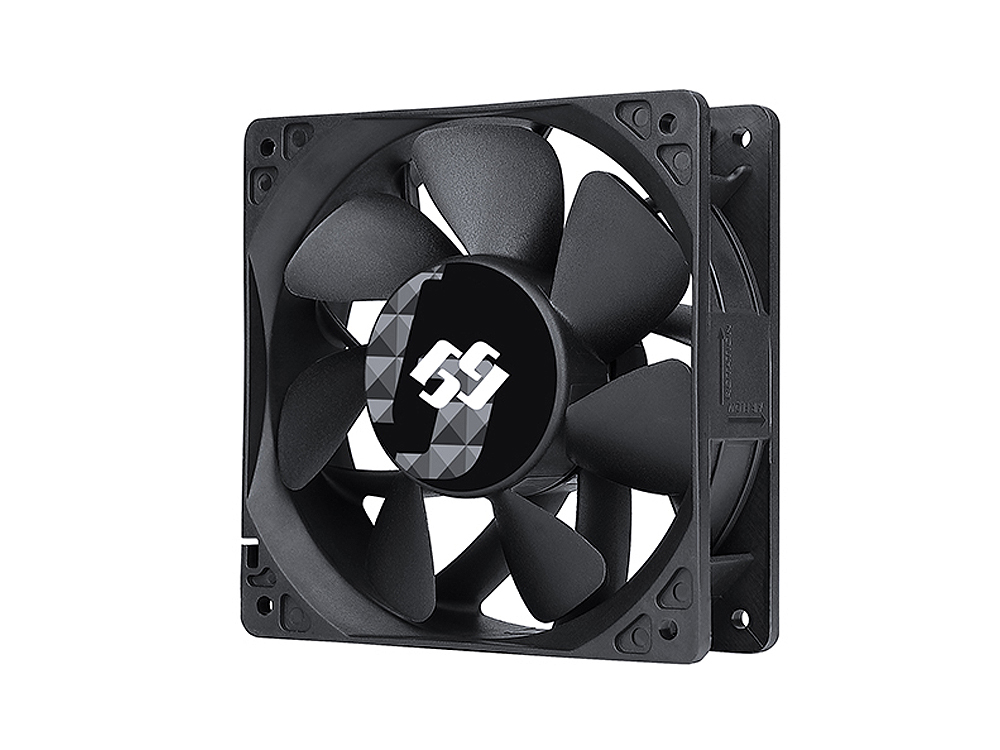

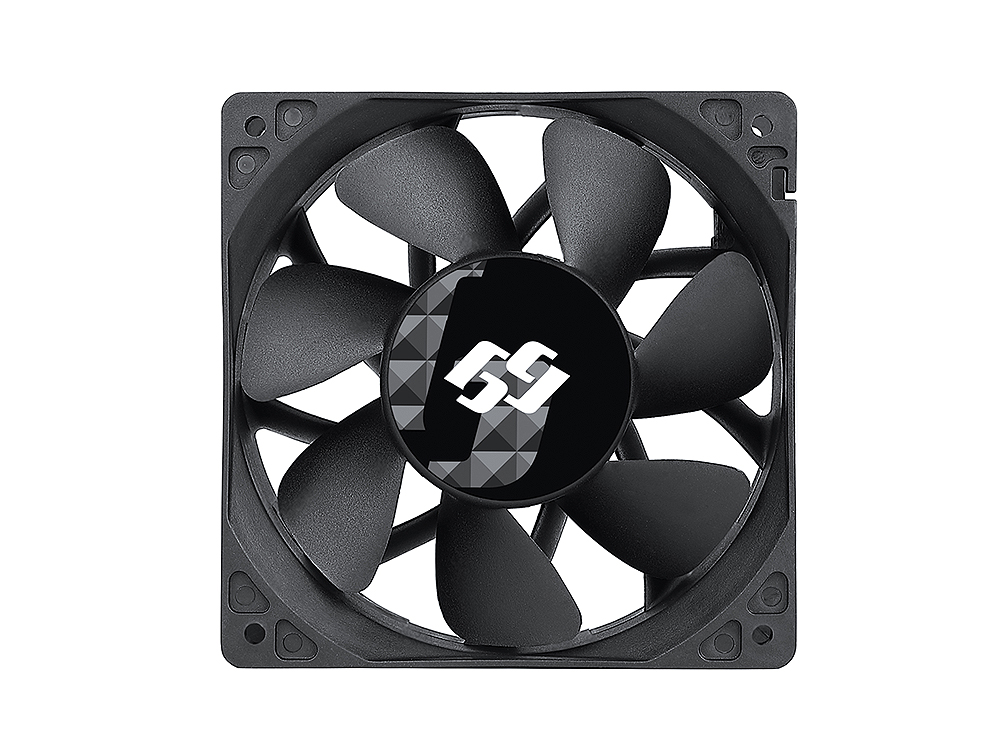

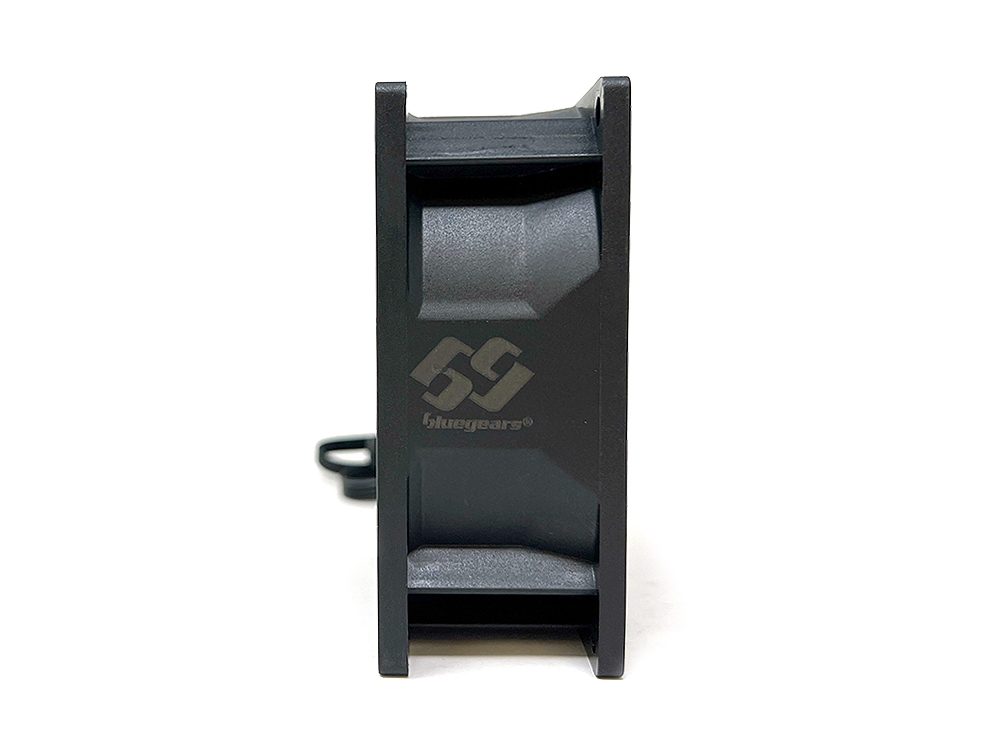

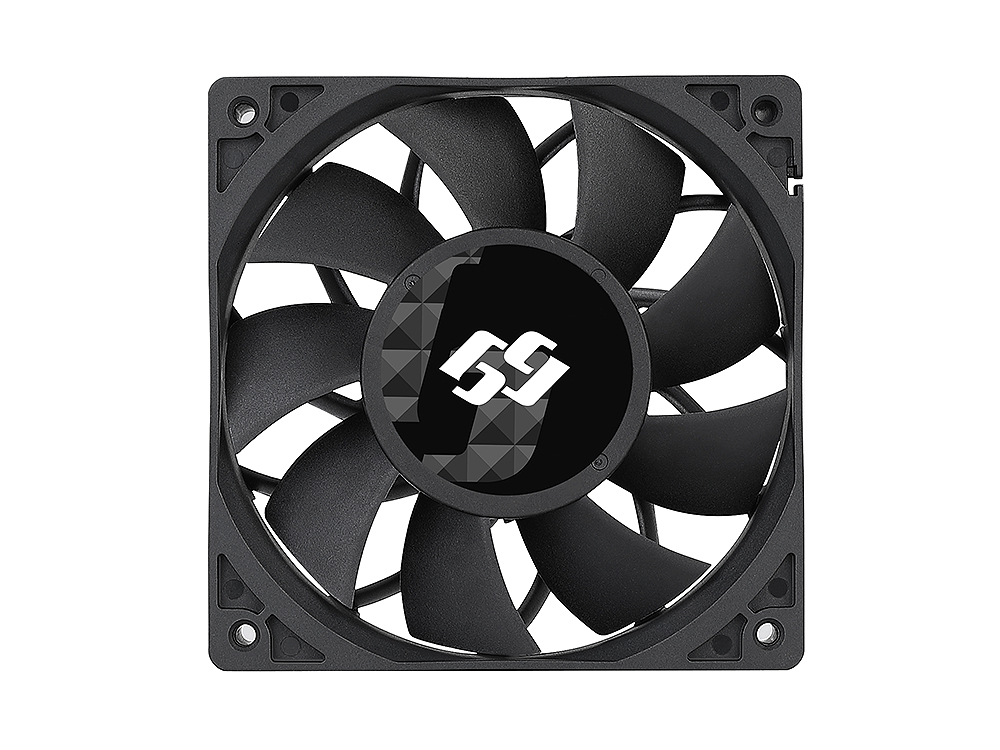

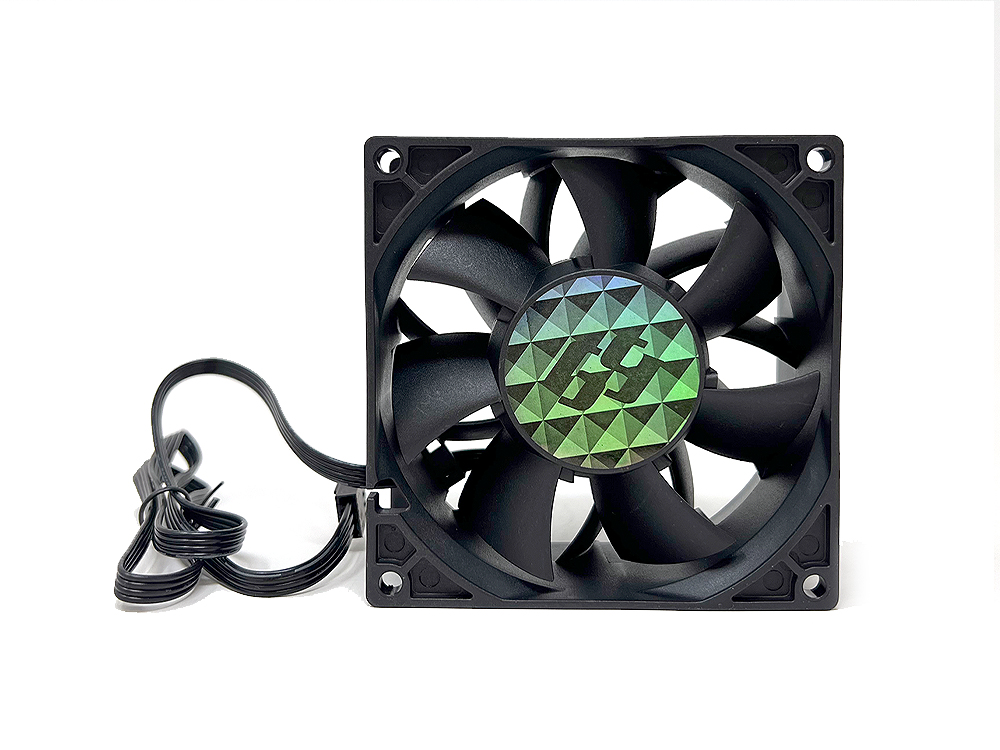

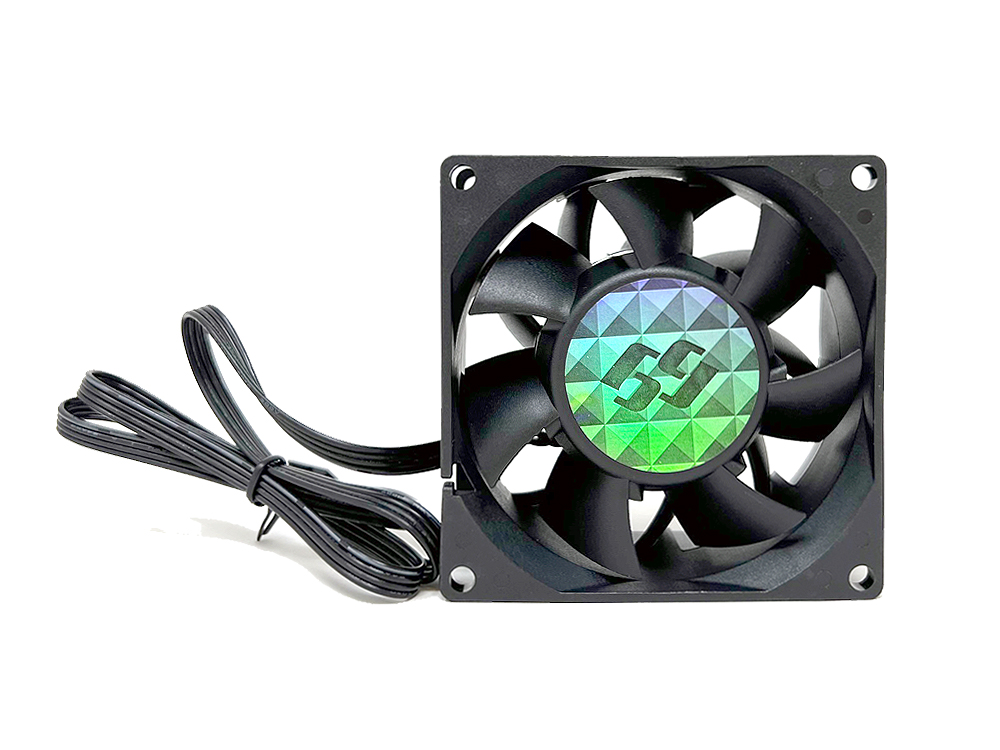

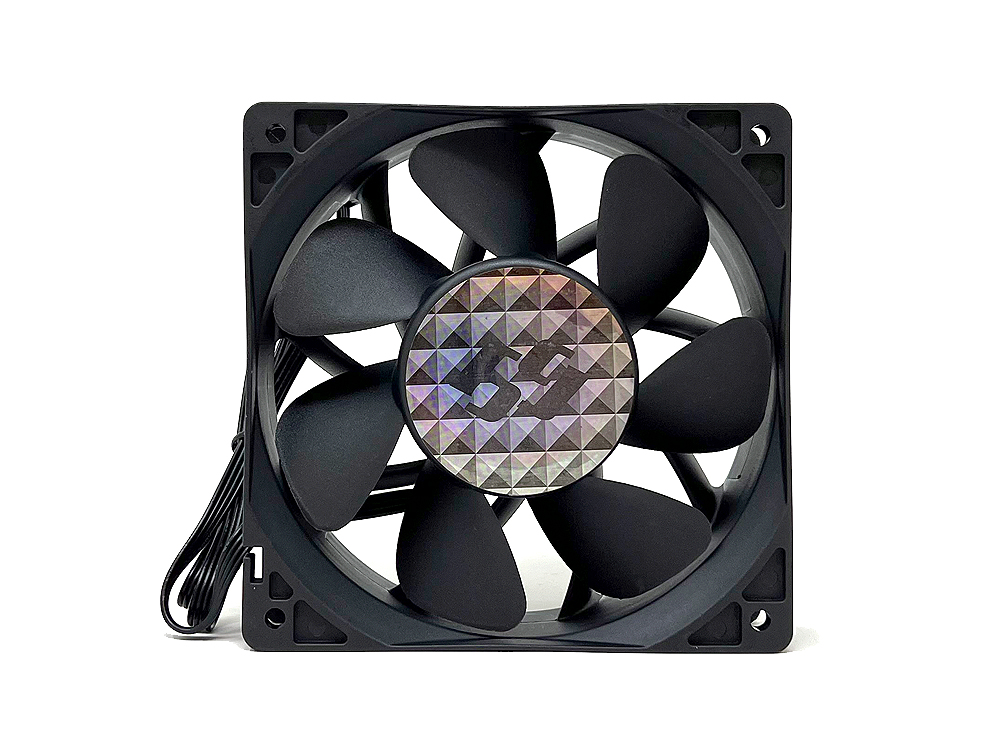

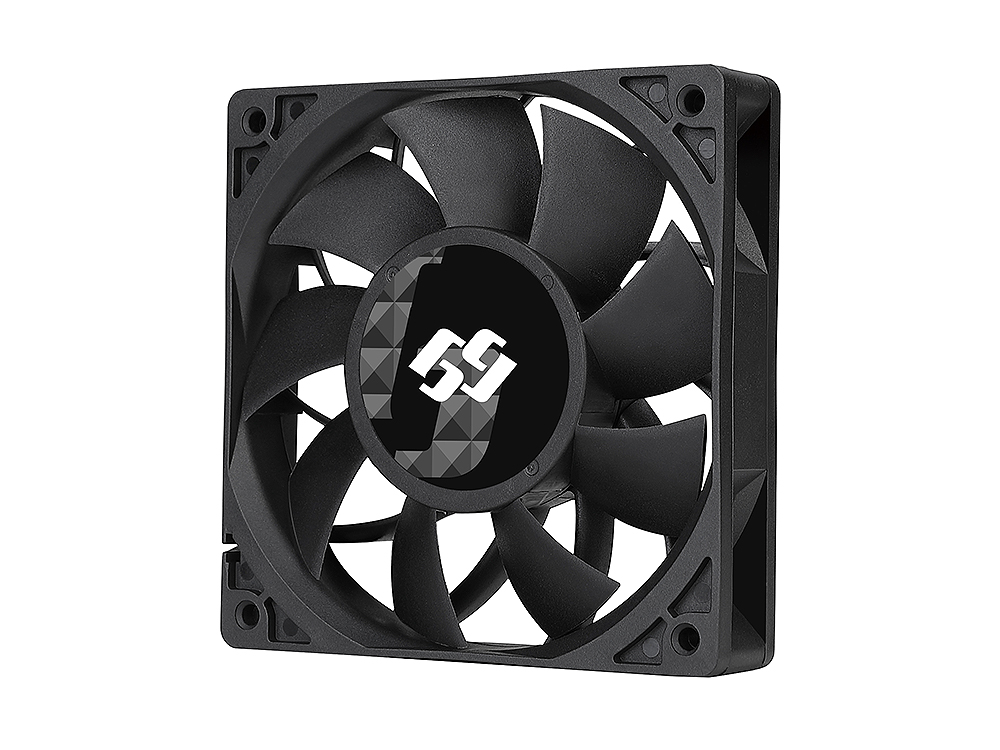

| b-BlasterPWM Series | 80mm | 80x38mm (NEW!) | 90mm | 90x38mm (NEW!) | 120mm | 120x38mm (NEW!) | 140mm | 140x38mm (NEW!) |
|---|---|---|---|---|---|---|---|---|
| UPC Code: | 853704001480 | 850055230088 | 853704001497 | 850055230095 | 853704001503 | 853704001633 | 853704001701 | 850055230101 |
| Product Number: | BG01480 | BG30088 | BG01497 | BG30095 | BG01503 | BG01633 | BG01701 | BG30101 |
| Speed(RPM): | 600 to 5000RPM±10% | 500 to 5000 RPM | 1200 to 5000RPM±10% | 500 to 5000 RPM | 1000 to 5000RPM±10% | 1300 to 6500RPM±10% | 600 to 3000RPM±10% | 1200 to 6500 RPM±10% |
| Current(A): | 0.36±0.03A | 0.6A | 0.52±0.05A | 0.85 | 1.2±0.1A | 1.9A | 1.0±0.1A | 3.5A |
| Power(W): | 4.32 | 7.2 | 6.24 | 10.2 | 14.4 | 22.8 | 12.0 | 42.0 |
| Airflow(CFM): | 98 | 108 | 118.0 | 128 | 203.0 | 318 | 168 | 398 |
| Airflow (CFM): minimum | 8.5 | 6.4 | 13.0 | 10.4 | 21.5 | 44.0 | 28.2 | 53.4 |
| Static Pressure (at zero flow for pwm): | 1.3mmH20 | 0.14mmH20 | 1.5mmH20 | 0.17mmH20 | 1.7mmH20 | 1.35mmH20 | 1.4mmH20 | 1.6mmH20 |
| Static Pressure (max for pwm): | 9.5mmH20 | 13.96mmH20 | 12.0mmH20 | 17.16mmH20 | 13.0mmH20 | 33.99mmH20 | 7.0mmH20 | 47.4mmH20 |
| Rated Voltage(V): | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Operating Voltage Range(V): | 10.2~13.8 | 9.0~14.0 | 10.2~13.8 | 9.0~14.0 | 10.8~13.8 | 9.0~14.0 | 10.2~13.8 | 9.0~14.0 |
| Noise Level at Max Speed(dbA): | 47 | 55.3 | 49 | 57.2 | 50.5 | 64.5 | 53 | 70.8 |
| Operating Temperature: | -10°C~+70°C | -10°C~+70°C | -10°C~+70°C | -10°C~+70°C | -10°C~+70°C | -10°C~+70°C | -10°C~+70°C | -10°C~+70°C |
| Storage Temperature: | -20°C~+70°C | -40°C~+85°C | -20°C~+70°C | -40°C~+85°C | -20°C~+75°C | -40°C~+85°C | -20°C~+75°C | -40°C~+85°C |
| Frame Size(mm): | 80x80x25 | 80x80x38 | 90x90x25 | 90x90x38 | 120x120x25 | 120x120x38 | 140x140x25 | 140x140x38 |
| Weight: | 73.6g | 161.5 | 124g | 170g | 258g | 185.5 | 255g | 404g |
| Bearing: | 2 Ball (Japanese ball bearing) | 2 Ball (Japanese ball bearing) | 2 Ball (Japanese ball bearing) | 2 Ball (Japanese ball bearing) | 2 Ball (Japanese ball bearing) | 2 Ball (Japanese ball bearing) | 2 Ball (Japanese ball bearing) | 2 Ball (Japanese ball bearing) |

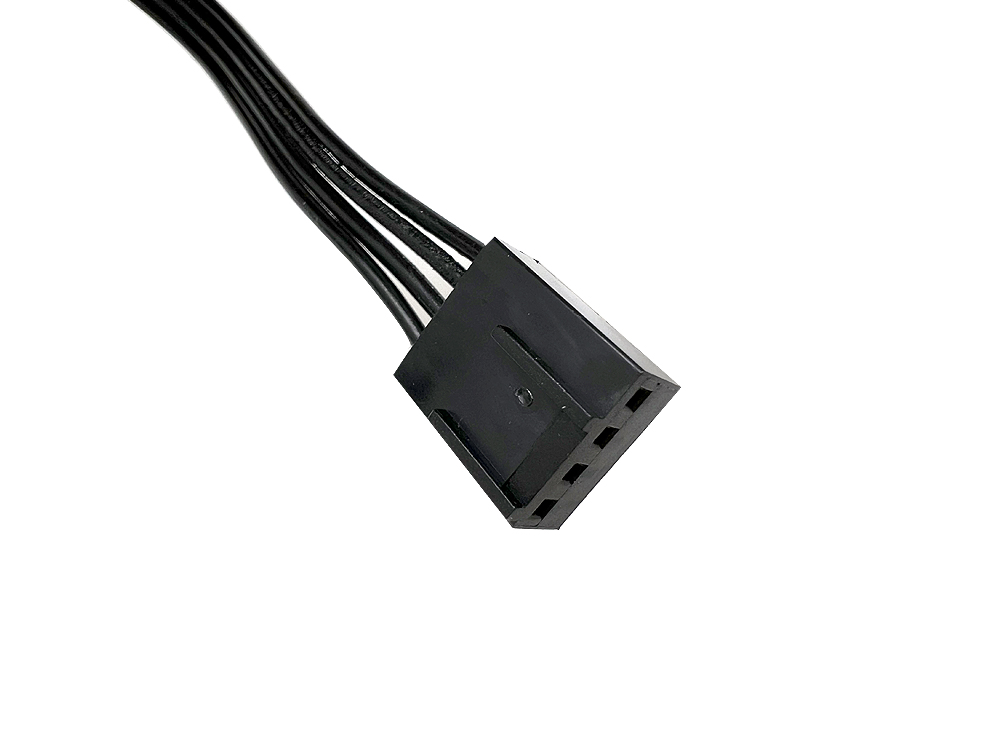

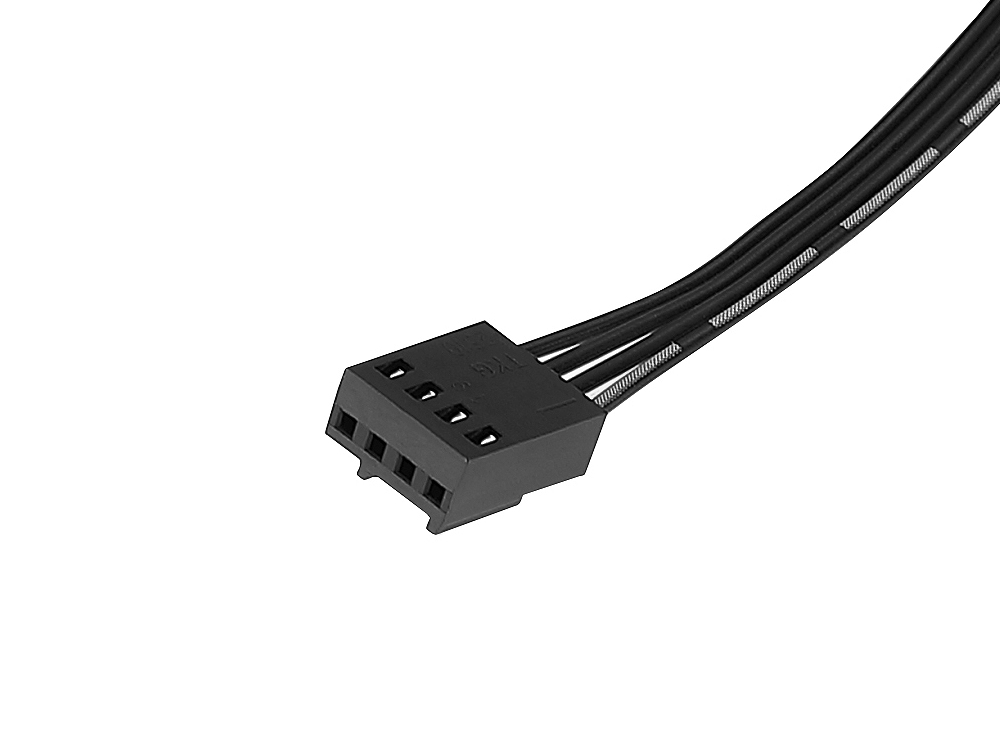

| PWM Connector | Mini 4 pin 4 wires | Mini 4 pin 4 wires | Mini 4 pin 4 wires | Mini 4 pin 4 wires | Mini 4 pin 4 wires | Mini 4 pin 4 wires | Mini 4 pin 4 wires | Mini 4 pin 4 wires |
| Life Expectancy : | 60000 | 60000 | 60000 | 60000 | 60000 | 60000 | 60000 | 60000 |
| LED: | None | None | None | None | None | None | None | None |
