b-Cooler LGA115X
Take a peek inside our COOLING world
b-Cooler LGA115X

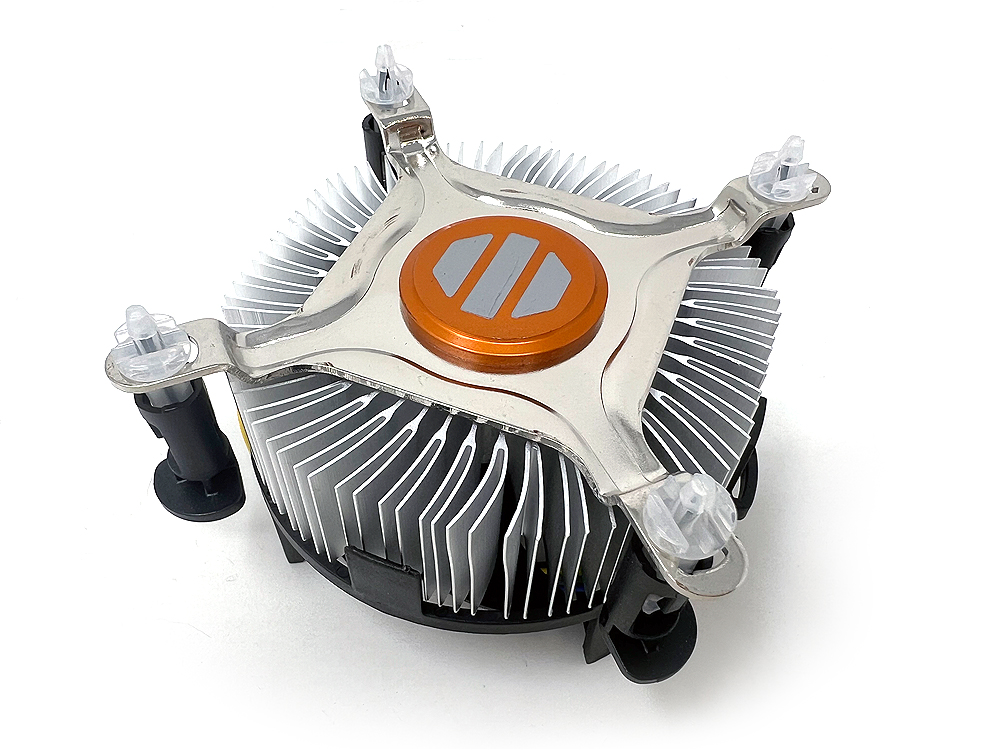

Aluminum Heatsink with Copper Core
Features
Models / Colors and Accessories
Features
- Unique high efficiency fins with Copper Core for Maximum Thermal Performance
- PWM 4-Pin 90mm Fan with High Speed Range 1000-2400 RPM
- Compatible with Intel CPU: LGA 775/1150/1151/1155/1156
- TDP (Thermal Design Power) up to 90W
- Ready to Install with Pre-Applied Thermal Grease

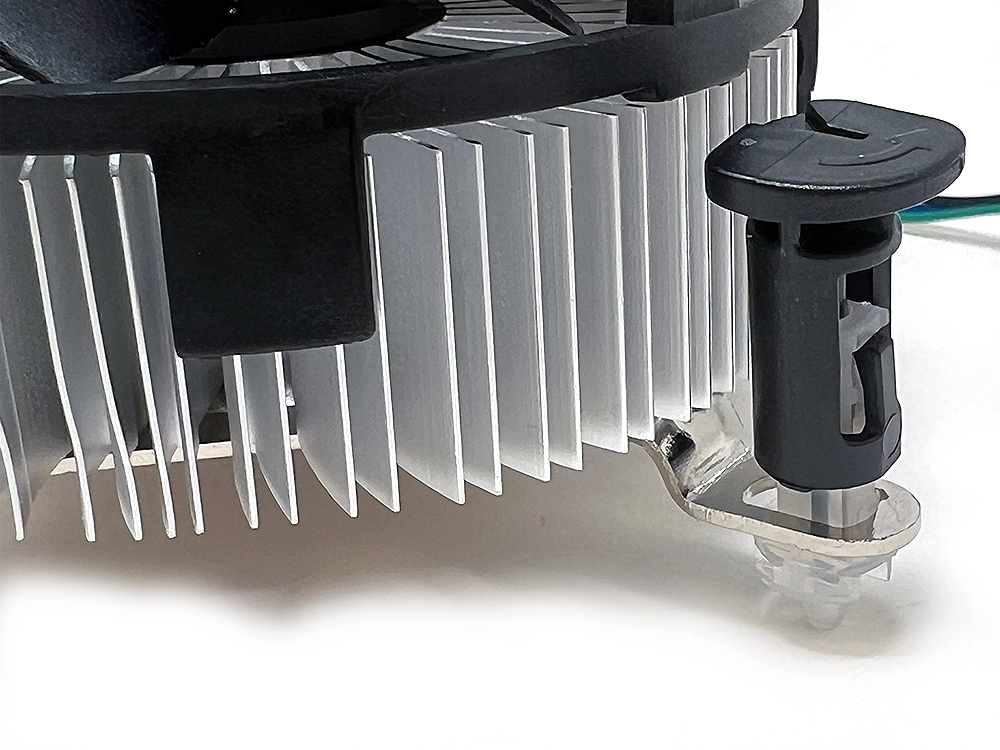

- Push Pin design for effortless installation
Models / Colors and Accessories

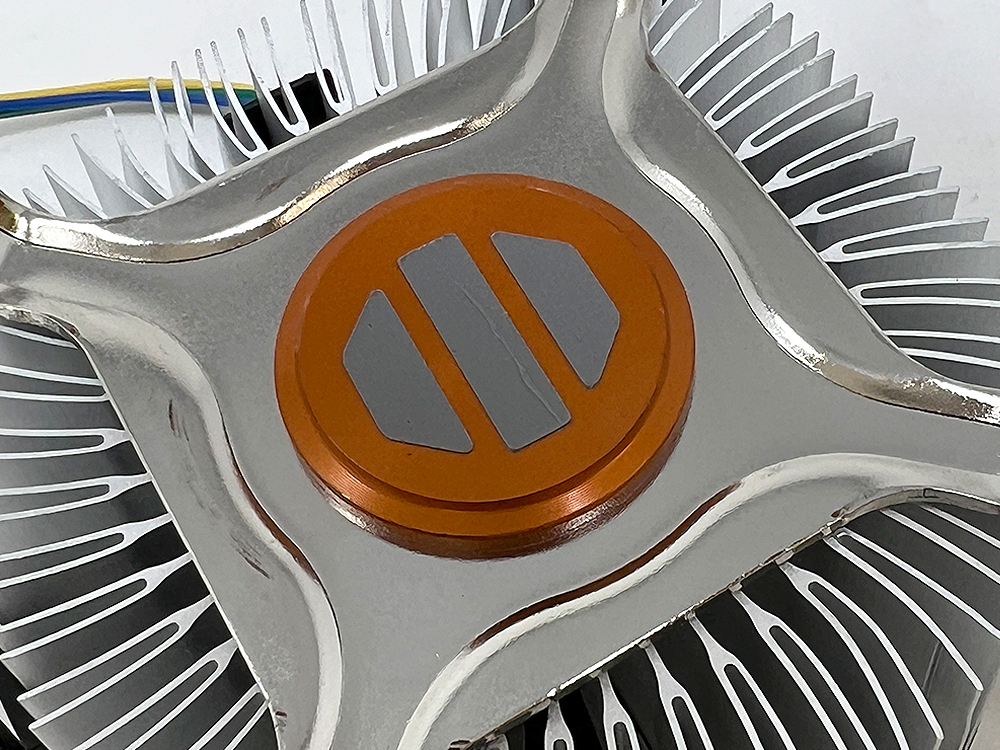

- Aluminum Heatsink with Copper Core
Ultimate Cooling

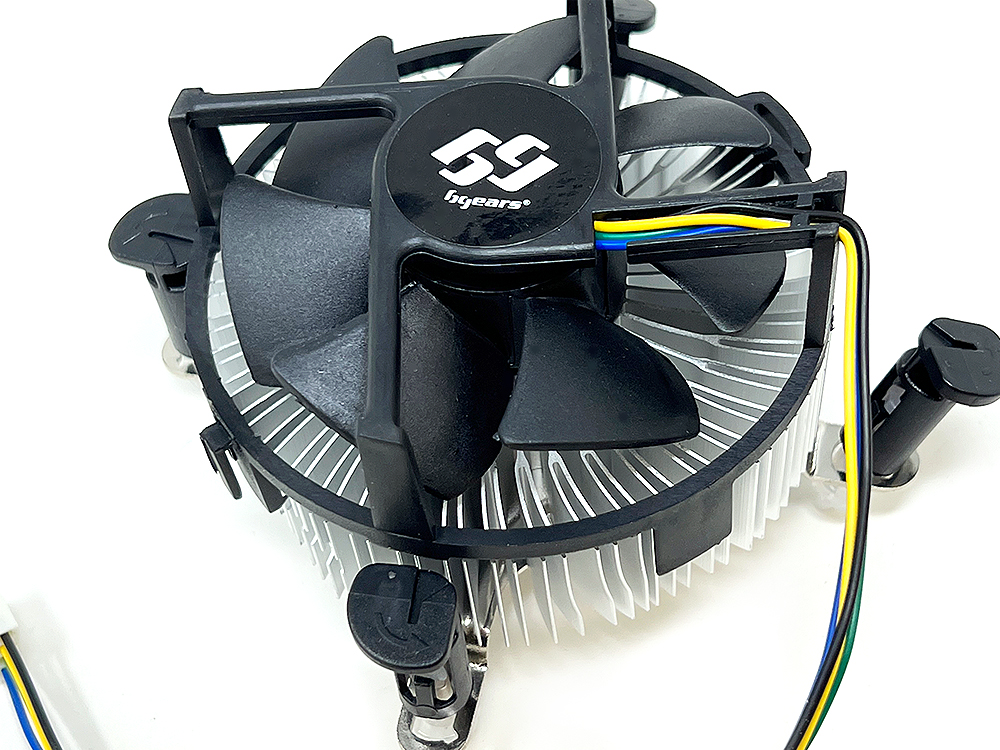

Equipped with a 90mm high efficiency 4-Pin PWM fan
High Efficiency Fins
Unique 1 Inch (26mm) Thick Aluminum Fins design incorporated with Copper Core for Ultimate Thermal Performance of up to 90W TDP
Compatibility
Compatible with Intel CPU: LGA 775/1150/1151/1155/1156
Quality
| b-Cooler LGA115X | |
|---|---|
| UPC Code: | 853704001862 |
| Product Number: | BG01862 |
| Base Material: | Aluminum Heatsink with Copper Core |
| Overall Dimensions: | 94 x 94 x 57mm |
| TDP (Thermal Design Power): | 90W |
| Fan Speed: | 1000-2400 rpm ±10% |

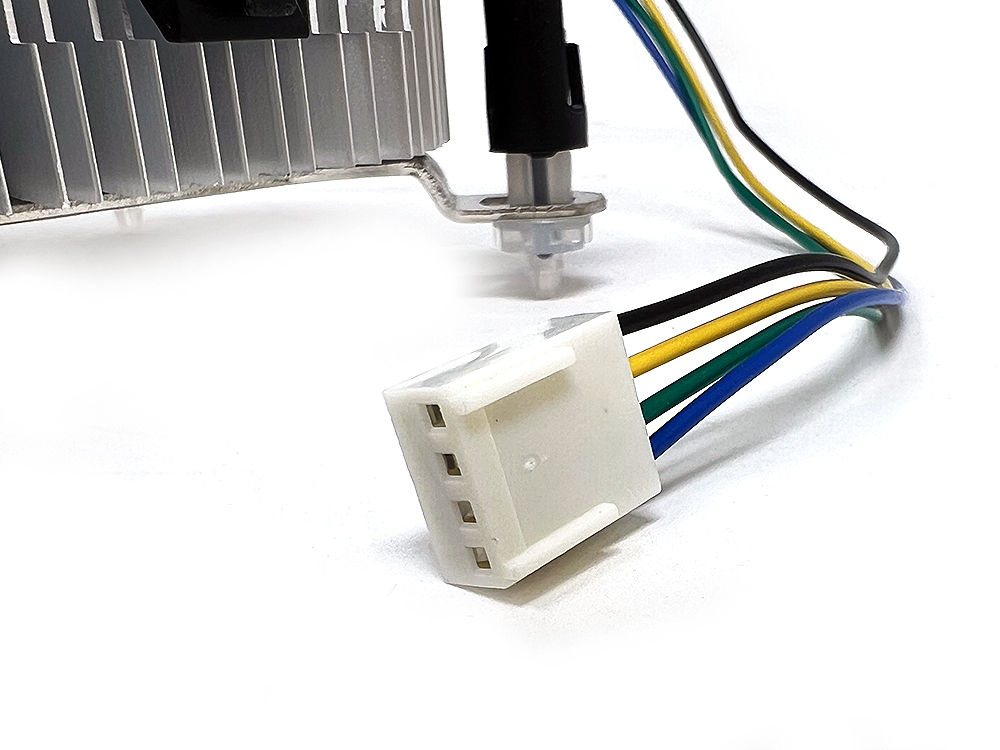

| Fan Connector Type: | PWM 4 Pin |
| Fan Dimensions: | 90 x 90 x 25mm |
| Fan Bearing Type: | Fluid Bearing |
| Starting Voltage: | 6V |
| Rated Voltage: | 12V |
| Rated Current: | 0.25A |
| Power Consumption: | 3W |
| Air Pressure: | 0.42-0.91mm-H2O |
| Air Flow: | 26 to 52 CFM ±10% |
| Noise: | 16 to 24 dBA ±10% |
| MTBF (Mean Time Before Failure): | 60000 hrs. |
| Socket: | Intel CPU: LGA 775/1150/1151/1155/1156 |
