b-Draco5907-RGB

Take a peek inside ouR ATTRACTIVE CASES

b-Draco5907-RGB

INCLUDES:

3 x 120mm ARGB Fan
1 x 10 Fan Port Hub
1 x RGB LED Strip
1 x Remote Controller
Power Supply is not included.

Middle Tower ATX

PRODUCT SUMMARY

FEATURE

RGB LED with multi-mode setting Front Panel
Access to 14 RGB lighting modes via conveniently located RGB-LED control button on the front panel:
6 RGB flow lighting modes / 7 solid color modes / 1 LED OFF mode
5mm thickness Tempered Glass Side Window Panel
Separate Power Supply cage for better cooling
Support E-ATX/ATX/Micro-ATX/mini-ITX motherboards
Support WaterCooling: Front-240mm, Top-240mm, Rear-120mm
Includes:
3 x 120mm ARGB Fan
1 x 10 Fan Port Hub
1 x RGB LED Strip
1 x Remote Controller
Power Supply is not included.

COMPONENT SUPPORT

CPU Cooler Max Height: 160mm
VGA Card Max Length: 370mm
(When the front panel is installed with water cooling, the length of the graphics card is limited to 310mm)
The power supply can support within 190mm
Motherboards: E-ATX/ATX/Micro-ATX/mini-ITX

FAN POSITION AND AIRFLOW

FAN POSITION

FRONT: 3 x 120mm or 3 x 140mm (optional)
TOP: 2 x ARGB 120mm (included)
Rear: 1 x ARGB 120mm (included)
PSU Cover: 13 x 120mm (optional)
1 x RGB LED Strip (included)

RADIATOR

FRONT: 240mm Radiator
TOP: 240mm Radiator
Rear: 120mm Radiator

RGB LED Strip x 1 included

FAN HUB

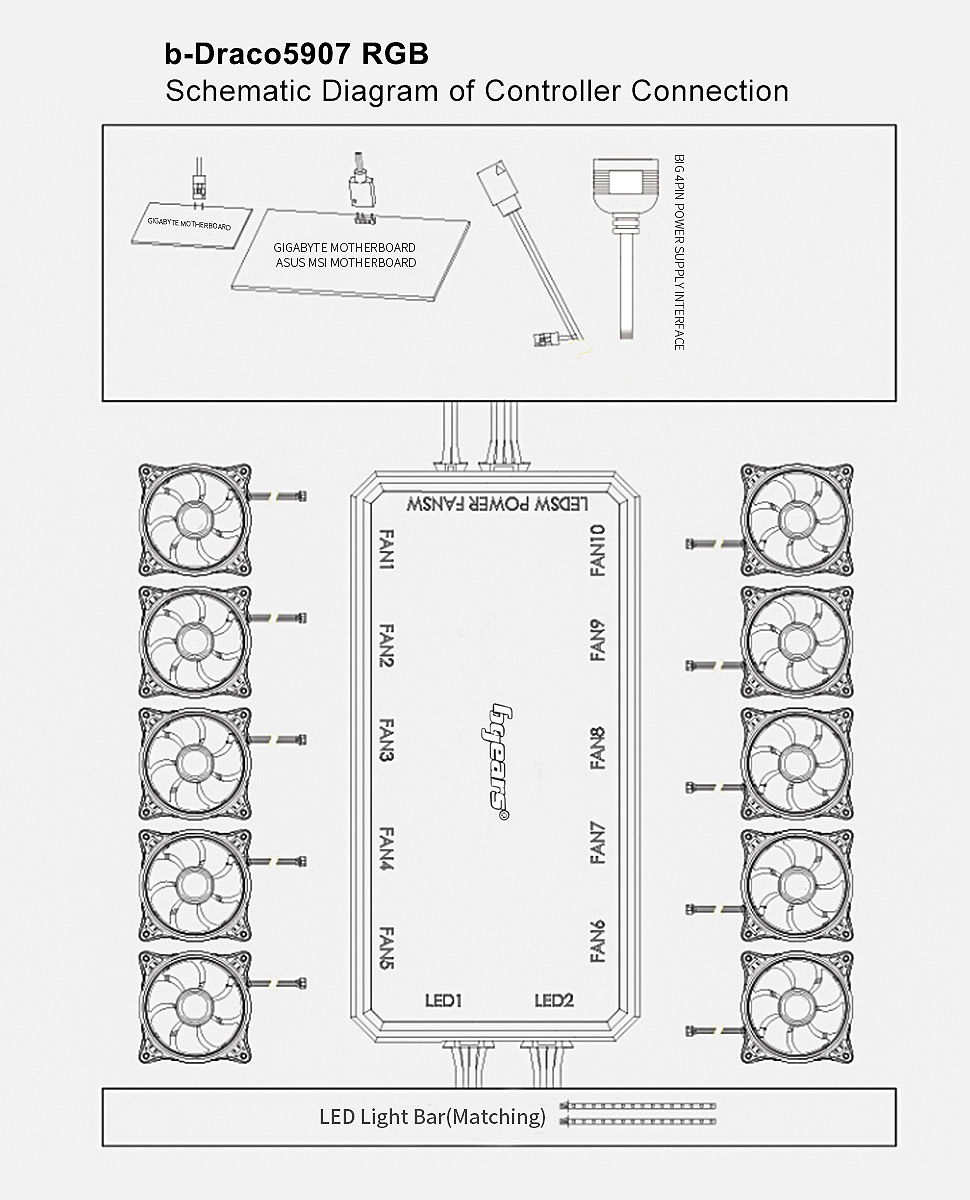

Schematic Diagram of Controller Connection

ARGB LED STRIP WITH MULTI-MODE SETTING FRONT PANEL

VARIOUS LIGHT EFFECTS

The light mode can be switched by gently pressing the remote control buttons. (fans and radiators are not included.)
