b-Masstige
Take a peek inside ouR ATTRACTIVE CASES
b-Masstige
- Massive Airflow with Removable Steel Mesh Front Panel and Washable Front and Top Magnetic Dust Filter.
- Massively Thick Steel Chassis for Sturdy PC Built.
- Prestige and Superb Airflow System Design for Ultimate Cooling.
- Swivel Door Hinge Side Tempered Glass for Easy Access and Installation.
- Built-in USB Type C + USB 3.0 x 2
- Support up to 8 Fans
- Support up to 240mm Water Cooling Radiator
- Support ATX Power
- Supply up to 180mm depth.
- Support MicroATX and ITX Motherboards.
MicroATX Case
b-masstige
Massive Airflow with Removable Steel Mesh Front Panel and Washable Front and Top Magnetic Dust Filter.
FEATURE
- Massive Airflow with Removable Steel Mesh Front Panel and Washable Front and Top Magnetic Dust Filter.
- Massively Thick Steel Chassis for Sturdy PC Built.
- Prestige and Superb Airflow System Design for Ultimate Cooling.
- Swivel Door Hinge Side Tempered Glass for Easy Access and Installation.
- Built-in USB Type C + USB 3.0 x 2
- Support up to 8 Fans
- Support up to 240mm Water Cooling Radiator
- Support ATX Power
- Supply up to 180mm depth.
- Support MicroATX and ITX Motherboards.
Micro ATX and ITX Motherboards
Drive Bay and Power Supply
VGA Card
Water Cooling
Fans (Not Included)

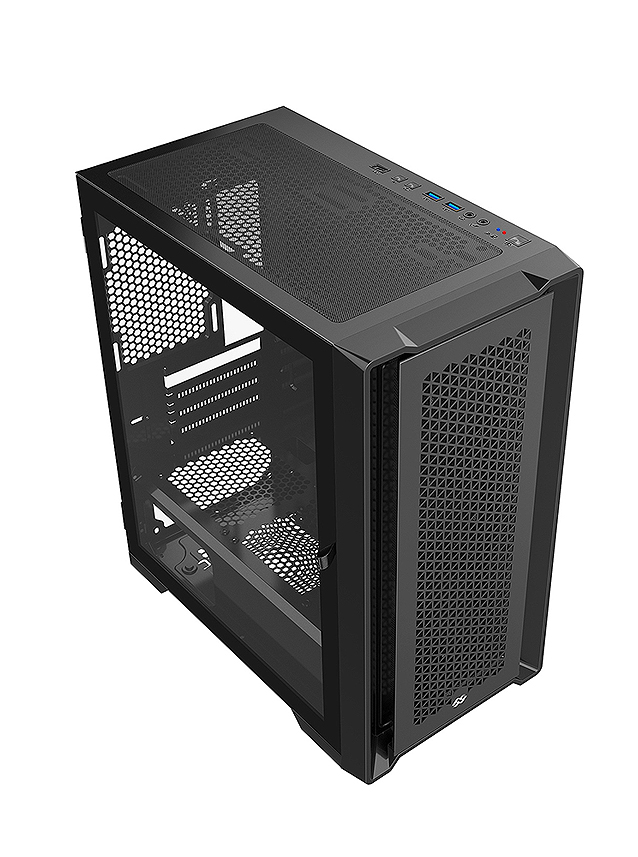

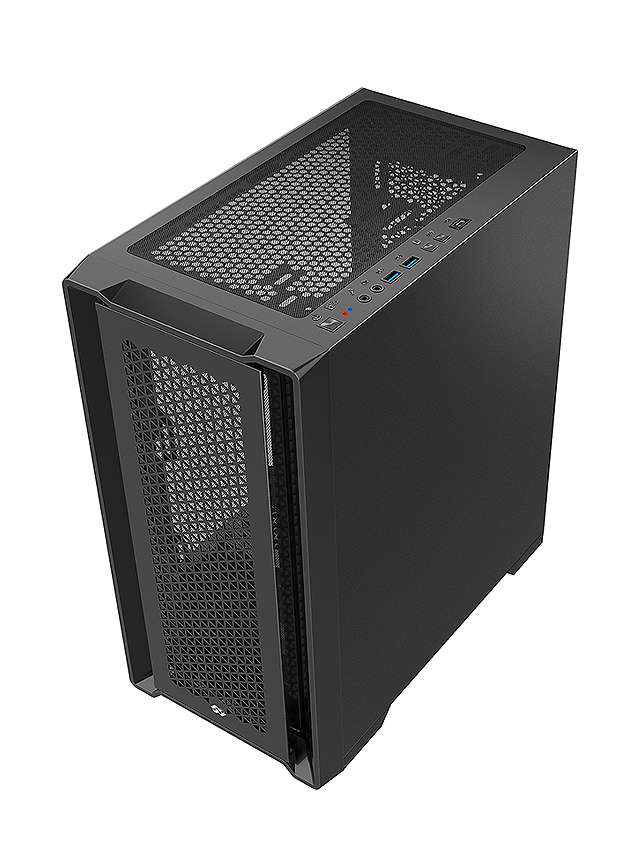

Top View

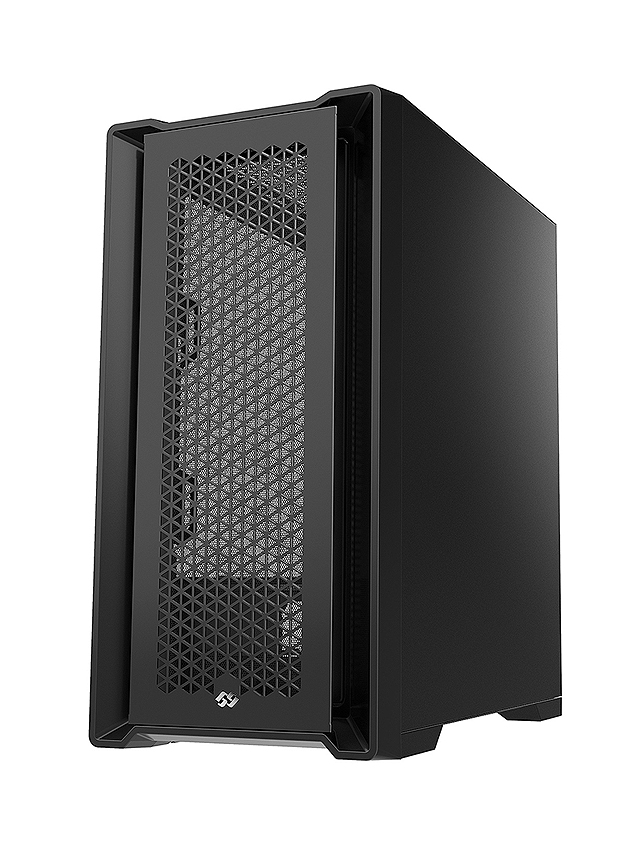

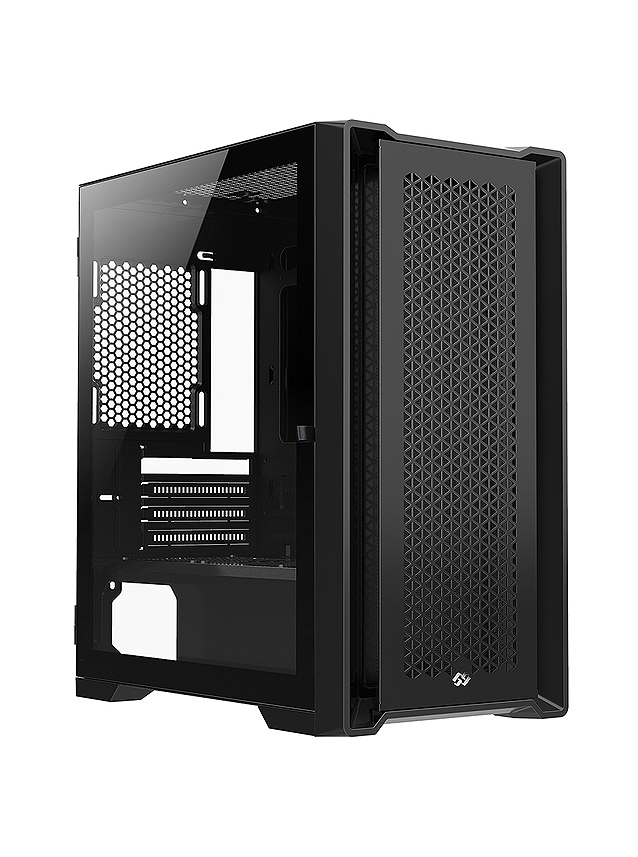

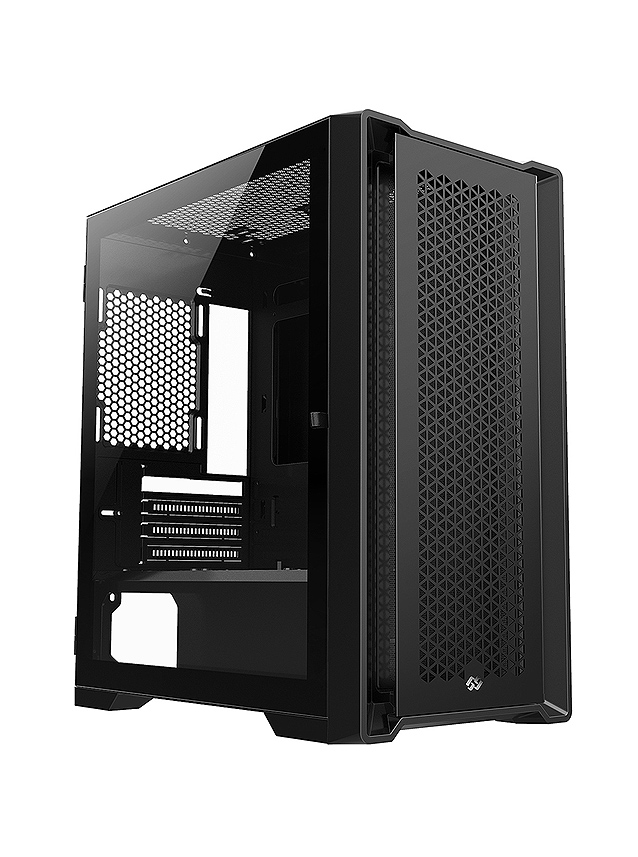

Front & Tempered Glass Side Panel
Back & Steel Side Panel
Features
Models / Colors and Accessories
Features
- Massive Airflow with Removable Steel Mesh Front Panel and Washable Front and Top Magnetic Dust Filter.
- Massively Thick Steel Chassis for Sturdy PC Built.
- Prestige and Superb Airflow System Design for Ultimate Cooling.
- Swivel Door Hinge Side Tempered Glass for Easy Access and Installation.
- Built-in USB Type C + USB 3.0 x 2
- Support up to 8 Fans
- Support up to 240mm Water Cooling Radiator
- Support ATX Power
- Supply up to 180mm depth.
- Support MicroATX and ITX Motherboards.
- Power Supply is not included.
Models / Colors and Accessories
- Black
| b-Masstige | |
|---|---|
| UPC Code: | 853704001770 |
| Product Number: | BG01770 |
| Case Type: | MicroATX Tower |
| Chassis Thickness: | 0.5mm with black coating |
| Motherboards: | Micro-ATX / ITX |
| Dimension (Internal): | 407 (H) x 210 (W) x 330 (D)mm |
| 16.0 (H) x 8.3 (W) x 13.0 (D)inch | |
| Dimension (Overall): | 422 (H) x 210 (W) x 368 (D)mm |
| 16.6 (H) x 8.3 (W) x 14.5 (D)inch | |
| Front Panel: | ABS + Steel plate + Magnet mesh, Triangular Hole design Front Steel panel |
| Side Panel Left: | Swivel Door Hinge Tempered Glass |
| Side Panel Right: | Steel |
| Drive Bay HDD / SSD | 1 x 3.5” HDD + 2 x 2.5” SSD or 2 x 3.5” HDD + 1 x 2.5” SSD |
| I/O Port: | USB Type C + USB 3.0 x 2 + MIC + HD Audio |
| Fan Front: | 120mm x 3 or 140mm x 2 (Not Included) |
| Fan Top: | 120mm x 2 or 140mm x 2 (Not Included) |
| Fan Rear: | 120mm x 1 (Not Included) |
| PSU Cover: | 120mm x 2 (Not Included) |
| CPU Cooler Height: | Max. 160mm |
| VGA Card Length: | Max. 330mm |
| Water Cooling: | Front 120/240mm, Top 120/240mm, Rear 120mm (All Not Included) |
| Dust Cover: | Top Magnetic Dust Filter |
| PCI Expansion Slots: | 4 |
| PSU Compatibility | Standard ATX / ATX12V up to 180mm Depth (PSU Not Included) |
