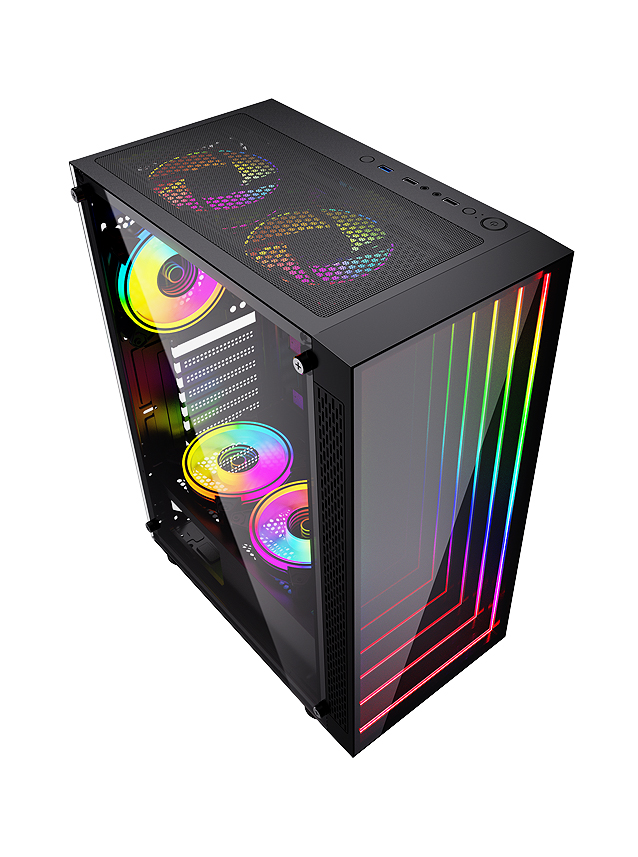

b-Optillusion
FEATURE
- Intrigue optical illusion front panel design
- ARGB LED front panel with Multi-mode setting
- 5mm thickness tinted Tempered Glass side panel
- Extreme Airflow design support up to 8 fans
- Support water cooling up to 360mm radiator
- Support EATX, ATX, MicroATX, ITX motherboard
LIQUID COOLING RADIATOR
Radiators are not included.
Top panel will not be able to install any radiators:
1. If front panel is installed with a 360mm radiator.
2. If back panel is installed with a 120mm radiator.
VGA CARD

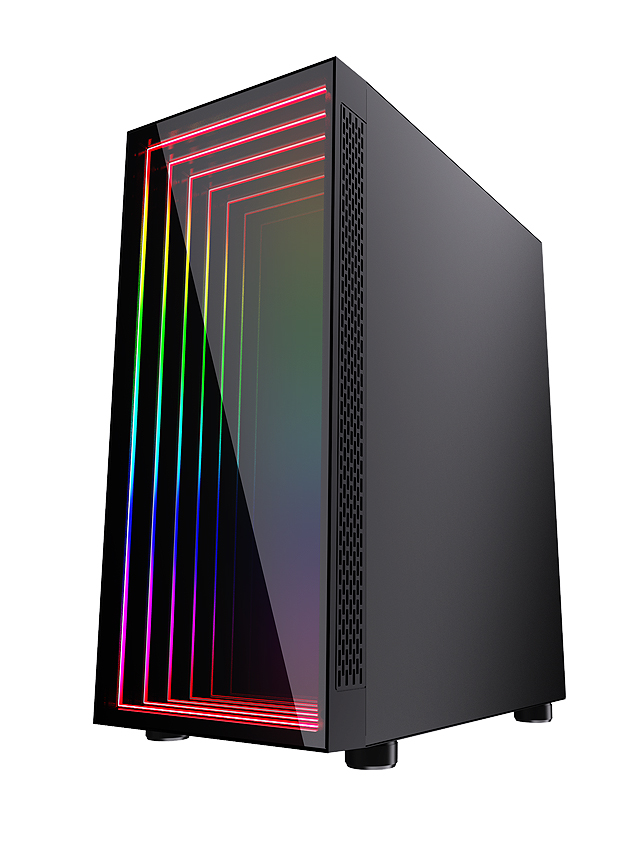

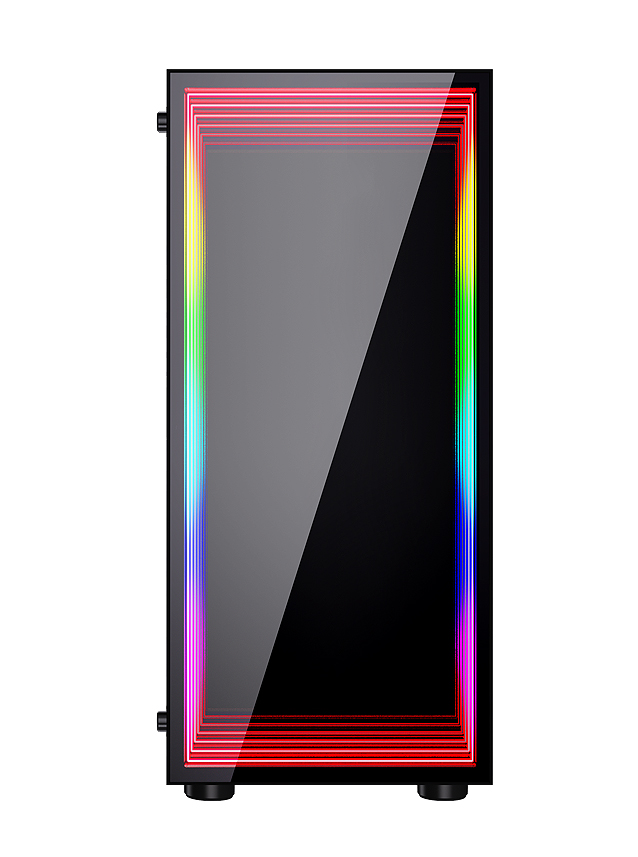

CHASSIS DIMENSIONS (Front)
(Back)

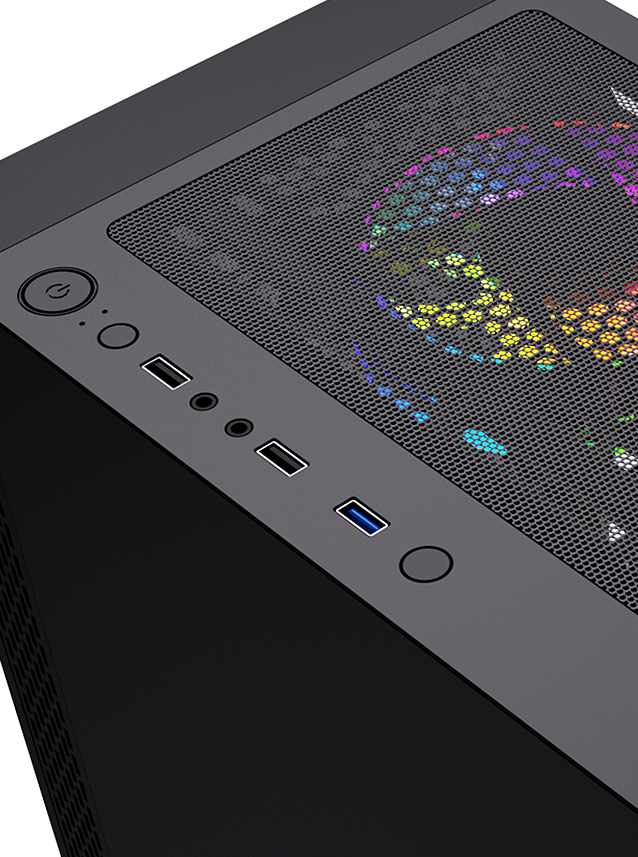

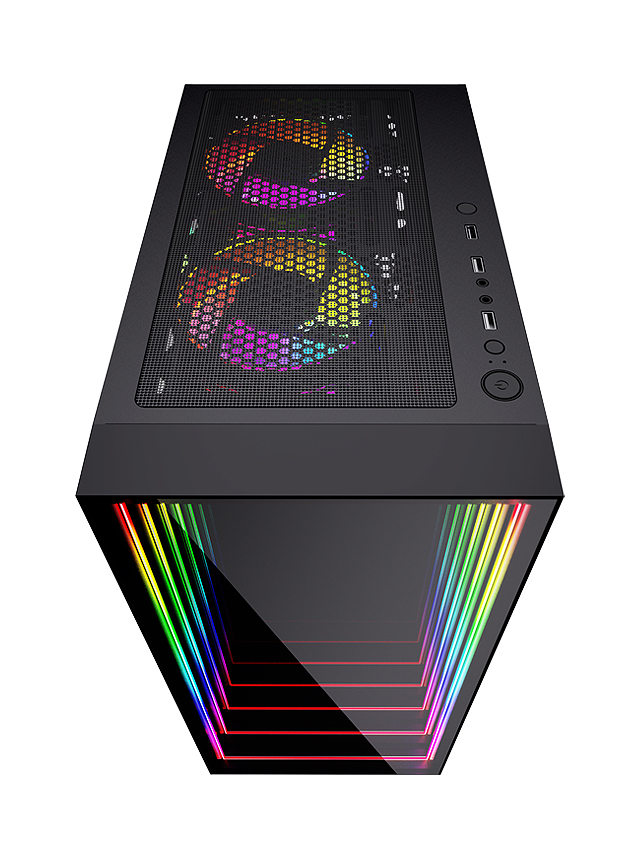

TOP PANEL FEATURE

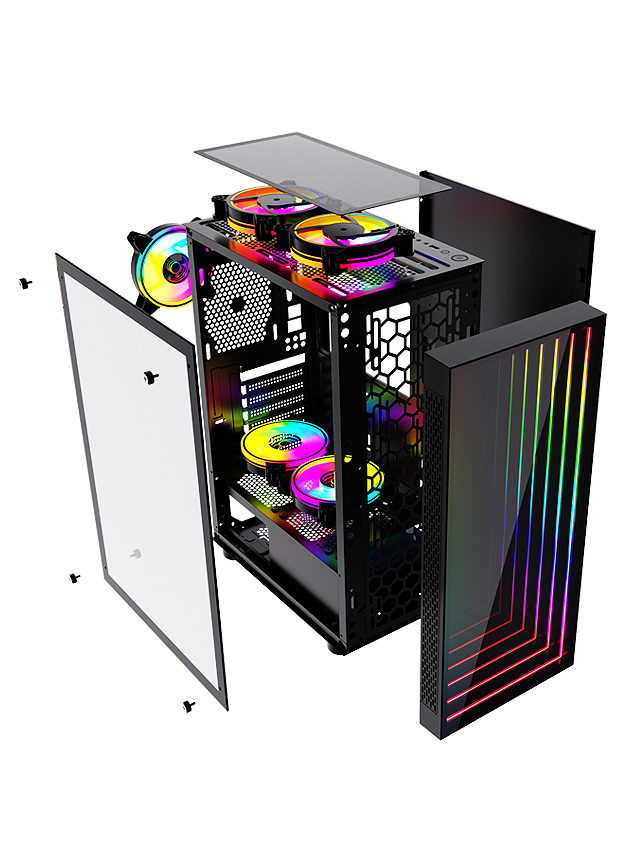

CHASSIS
COMPONENT SUPPORT
EATX – Maximum motherboard length of 275mm without
any fan installed in front panel
2 x 2.5″ SSD
1 x 3.5 HDD

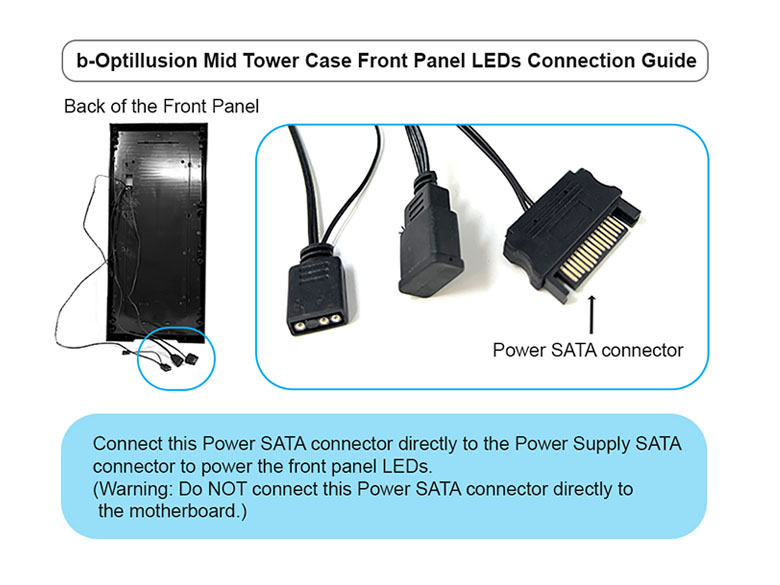

FRONT PANEL LEDS CONNECTION GUIDE

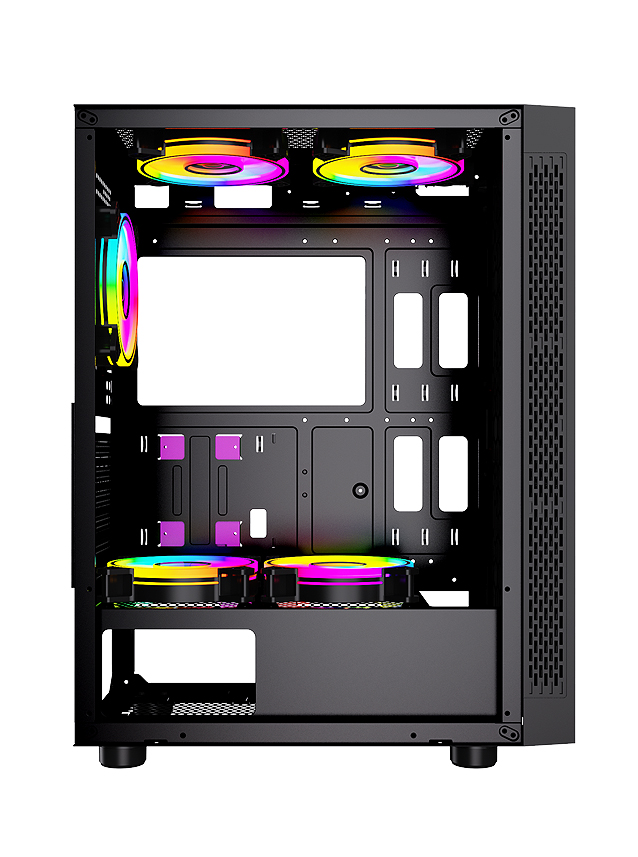

FAN INSTALLATION GUIDE
Features
Models / Colors and Accessories
Features
- Intrigue optical illusion front panel design
- ARGB LED front panel with Multi-mode setting
- 5mm thickness tinted Tempered Glass side panel
- Extreme Airflow design support up to 8 fans
- Support water cooling up to 360mm radiator
- Support EATX, ATX, MicroATX, ITX motherboard
Models / Colors and Accessories
- Black
| b-Optillusion | |
|---|---|
| UPC Code: | 853704001961 |
| Product Number: | BG01961 |
| Case Type: | Middle Tower ATX |
| Chassis Thickness: | 0.5mm Black interior |
| Motherboards: | E-ATX/ATX/Micro-ATX/ITX |
| Dimension (Internal): | 212(W) x 330(D) x 470(H) mm |
| Dimension (Overall): | 212(W) x 380(D) x 480(H)mm |
| Front Panel: | ABS + Glass + Mirror + Mirror LED (Controlled by LED button) |
| Side Panel Left: | Tinted Tempered Glass with 4 screws |
| Side Panel Right: | Steel |
| Drive Bay HDD (3.5"): | 1 |
| Drive Bay SSD (2.5"): | 2 |
| I/O Port: | USB 3.0 x 1 / USB 2.0 x 2 / Mic / HD AUDIO, Cable Length 750mm + AUDIO 750 mm |
| Fan Front: | 3 x 120mm or 3 x 140mm (Not included) This model support: 120mm x 1 if install with EATX M/B (Max 275mm) |
| Fan Top: | 2 x 120mm or 2 x 140mm (Not included) |
| Fan Rear: | 1 x 120mm (Not included) |
| PSU Cover: | 2 x 120mm (Not included) |
| CPU Cooler Height: | Max. 160mm |
| VGA Card Length: | Max. 300mm |
| Water Cooling: | front 240mm or 360mm, top 240mm or 280mm, rear 120mm |
| Dust Cover: | top magnet dust filter |
| Expansion Slots: | 7 |
| PSU Compatibility: | Standard ATX (PSU Not Included) |
