b-Pellucid Mini - Black / White
Take a peek inside ouR ATTRACTIVE CASES

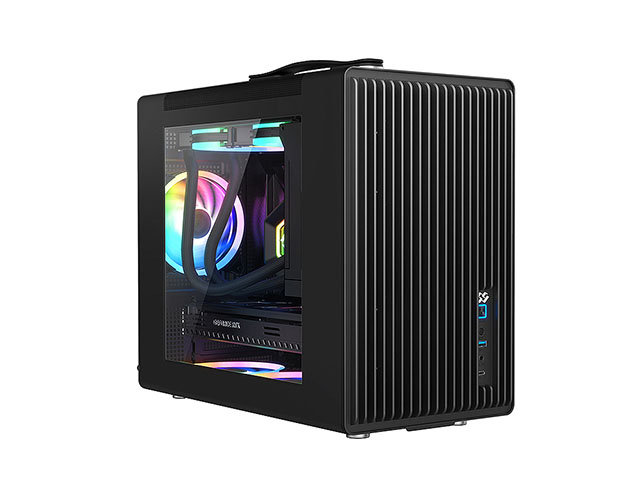

b-Pellucid Mini - Black / White
Micro ATX
FEATURE
- Stylish Micro-ATX Case
- Space Saver
- Easy to carry around
ITX and Micro ATX Motherboards
Drive Bay and Power Supply

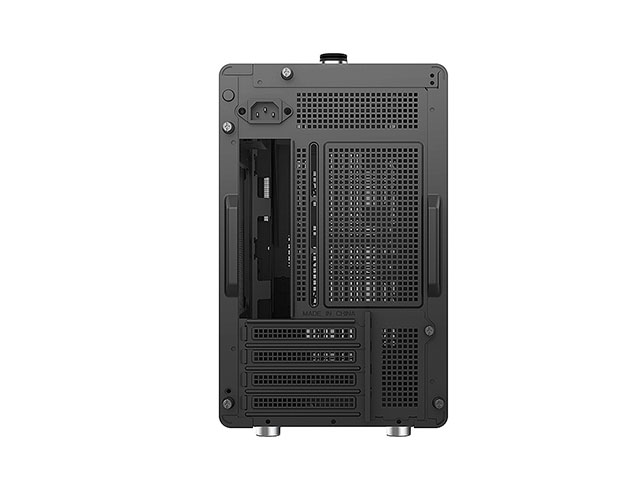

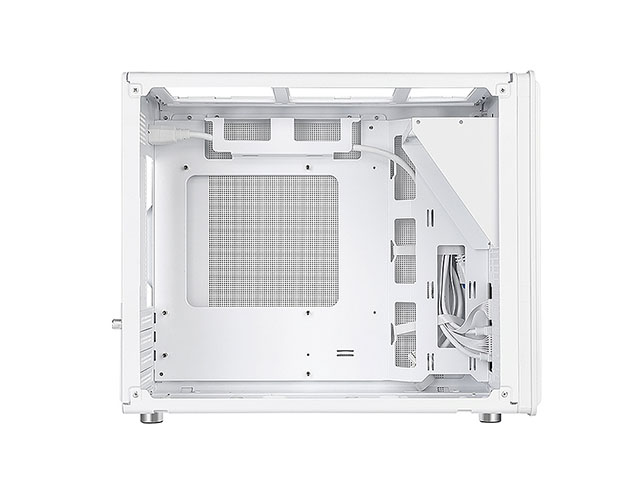

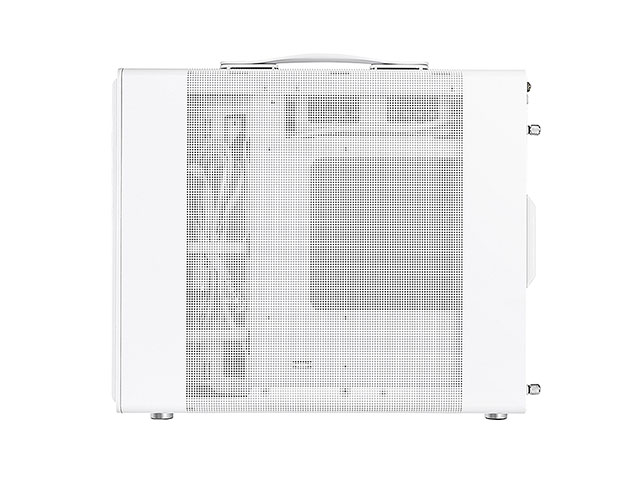

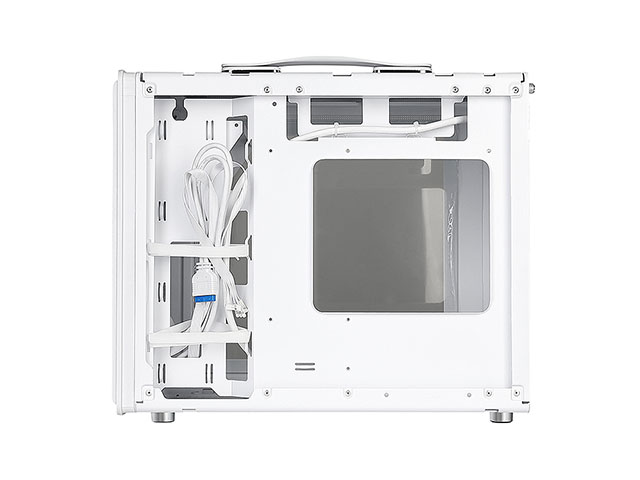

Rear and Right Side View

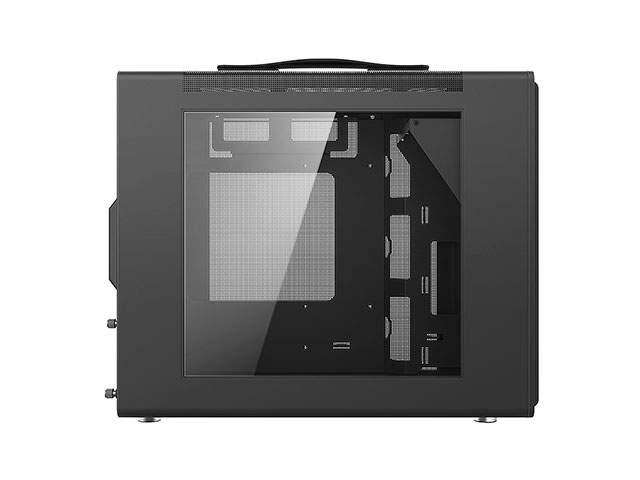

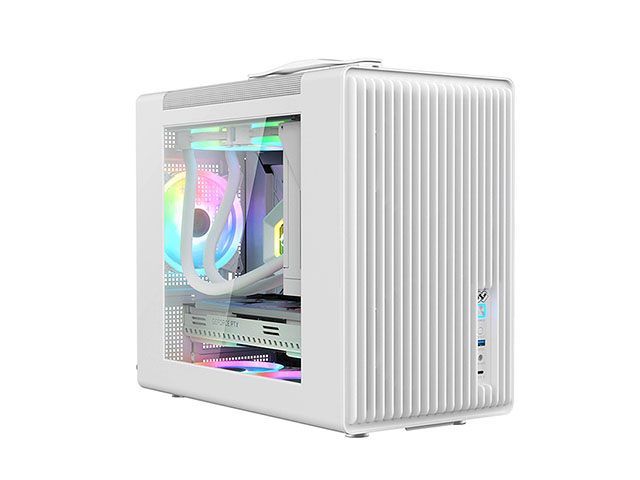

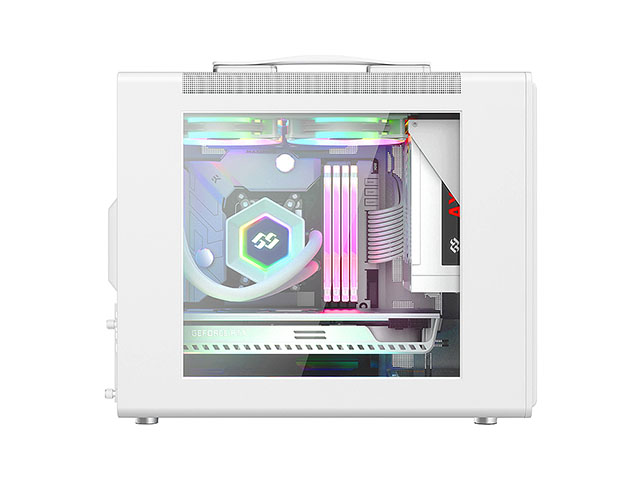

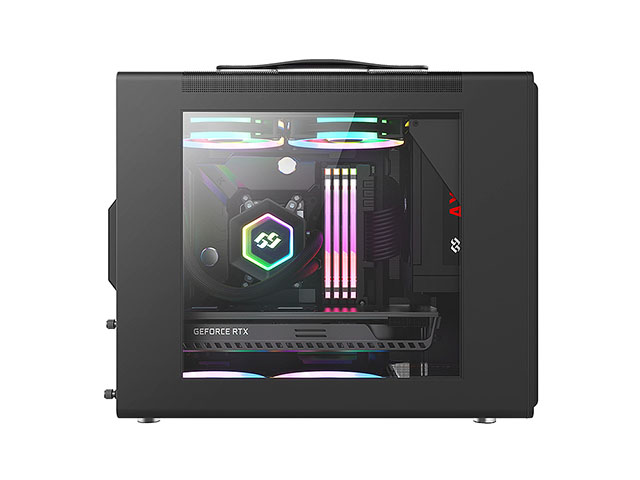

Front and Left Side View
Graphic Card and CPU Cooler
Water Cooling
Fan Installation
Power Supply Bracket

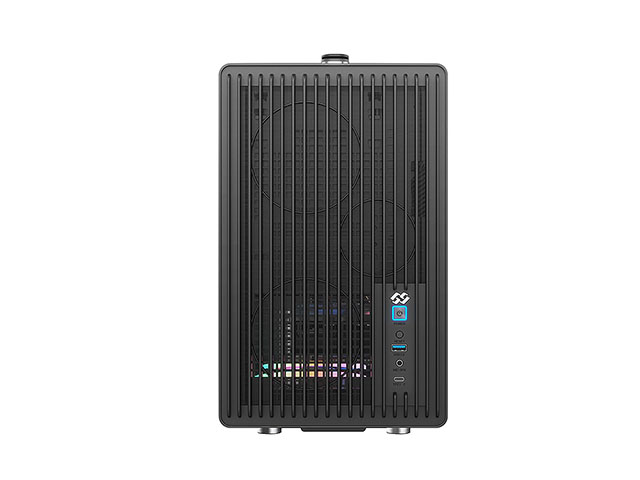

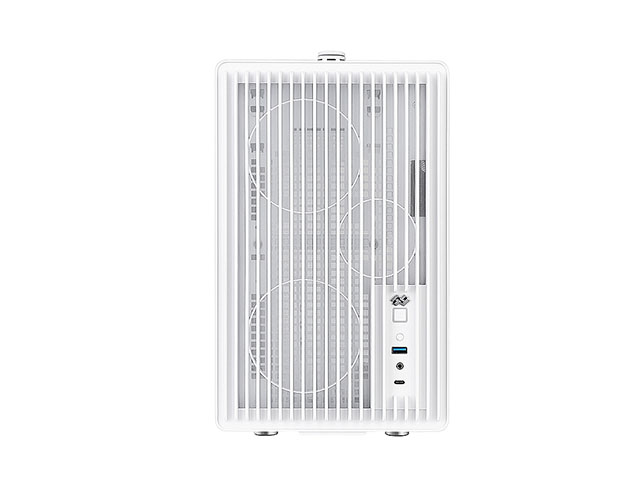

Front I/O Ports
Remove the Top and Tempered Glass Panel

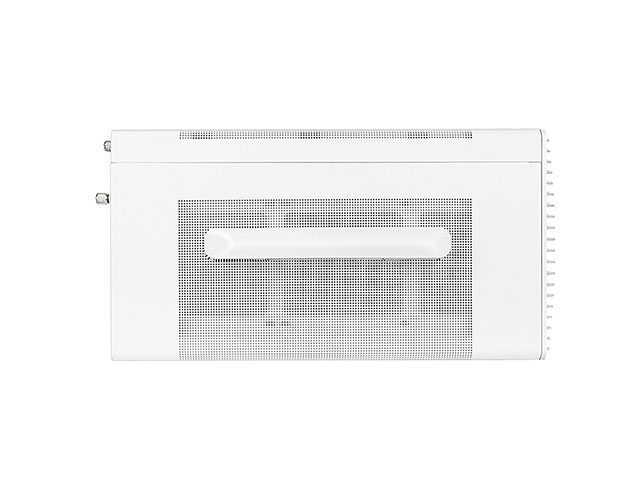

Top View (Black and White)

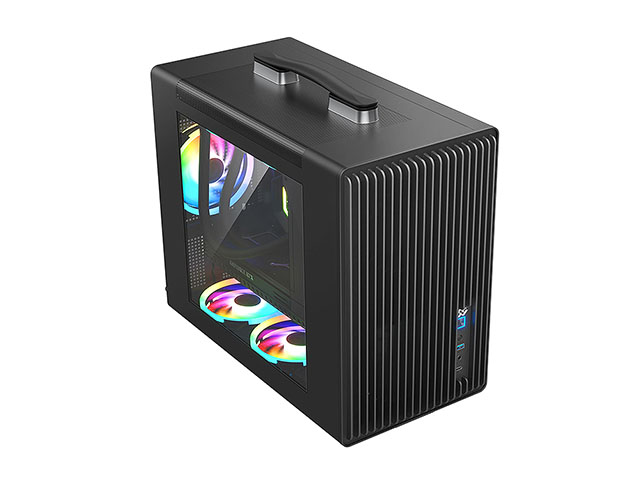

Handle
Features
Models / Colors and Accessories
Features
- Stylish Micro-ATX Case
- Space Saver
- Easy to carry around
Models / Colors and Accessories

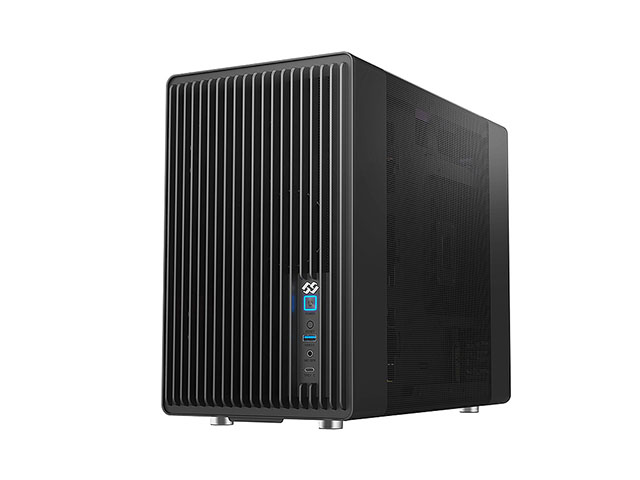

- Black

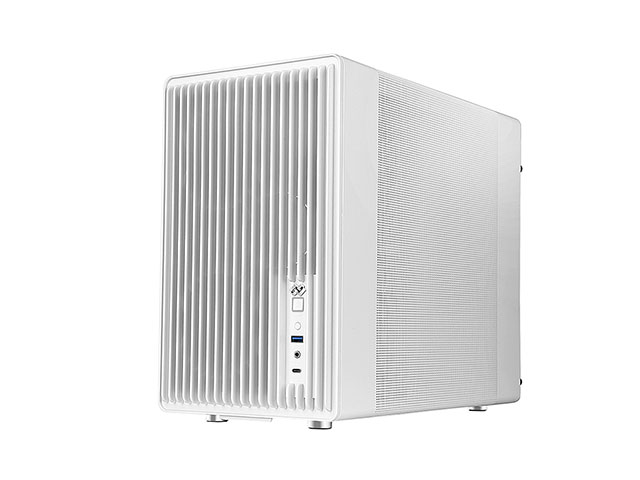

- White
| b-Pellucid Mini | |
|---|---|
| UPC Code: | 850055230132(Black) / 850055230149 (White) |
| Product Number: | BG30132 (Black) / BG30149 (White) |
| Case Type: | Micro ATX |
| Chassis Thickness: | 0.9mm |
| Motherboards: | Micro-ATX / ITX |
| Dimension (Internal): | 378(W) x 200(D) x 322(H) mm |
| Dimension (Overall): | 395(W) x 200(D) x 332(H)mm |
| Front Panel: | ABS + Mesh |
| Side Panel Left: | Steel + Tempered Glass |
| Side Panel Right: | Steel |
| Drive Bay HDD (3.5"): | 1 |
| Drive Bay SSD (2.5"): | 1 + 1 (Using the HDD Space) |
| I/O Port: | USB3.0 + Type C + Mic / HD Audio |
| Fan Front: | 1 x 120mm (Depends on PSU Installed Position) |
| Fan Top: | 2 x 120mm (Not Included) |
| Fan Rear: | 1 x 120mm (Not Included) |
| Fan Bottom: | 2 x 120mm (Not Included) |
| CPU Cooler Height: | Max. 165mm |
| VGA Card Length: | Max. 355mm |
| Water Cooling Top: | 240mm |
| Expansion Slots: | 4 |
| PSU Compatibility: | PSU length max 160mm (PSU Not Included) |
