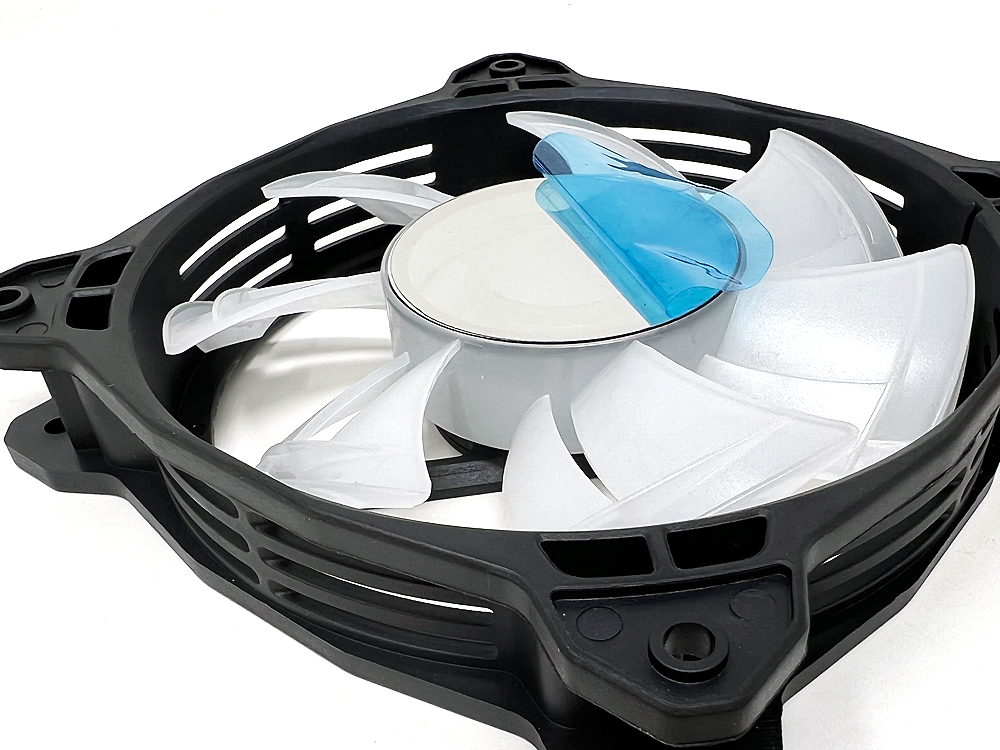

b-PWM Vortex 120mm
Take a peek inside our COOLING world
b-PWM Vortex 120mm
Features
Models / Colors and Accessories
Features
- PWM fan with Extreme Airflow

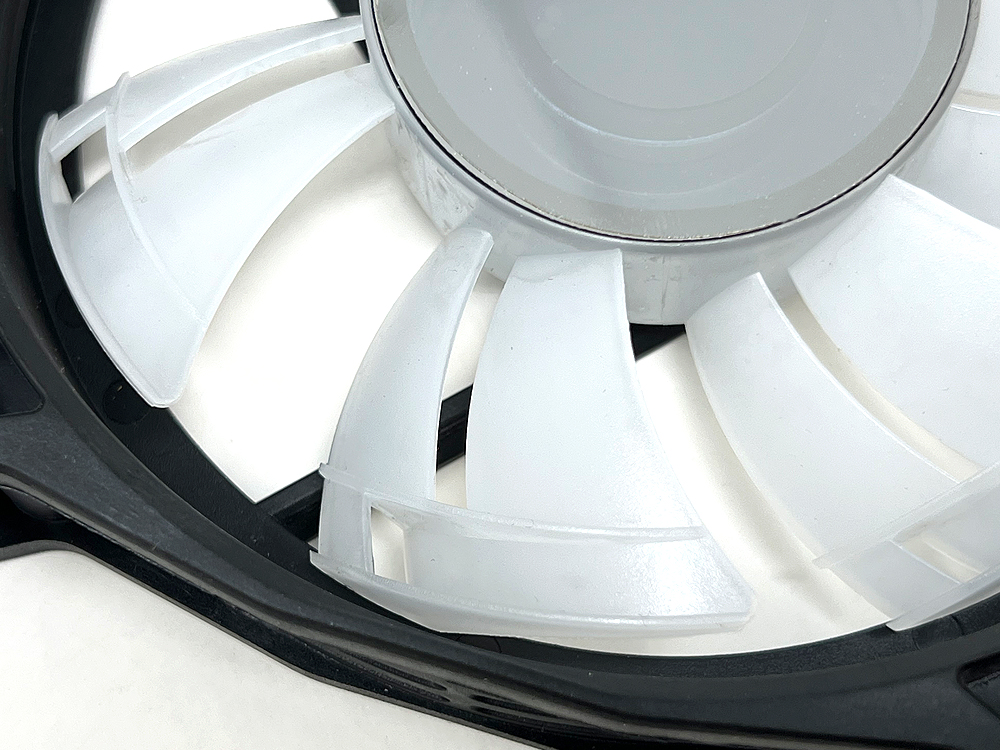

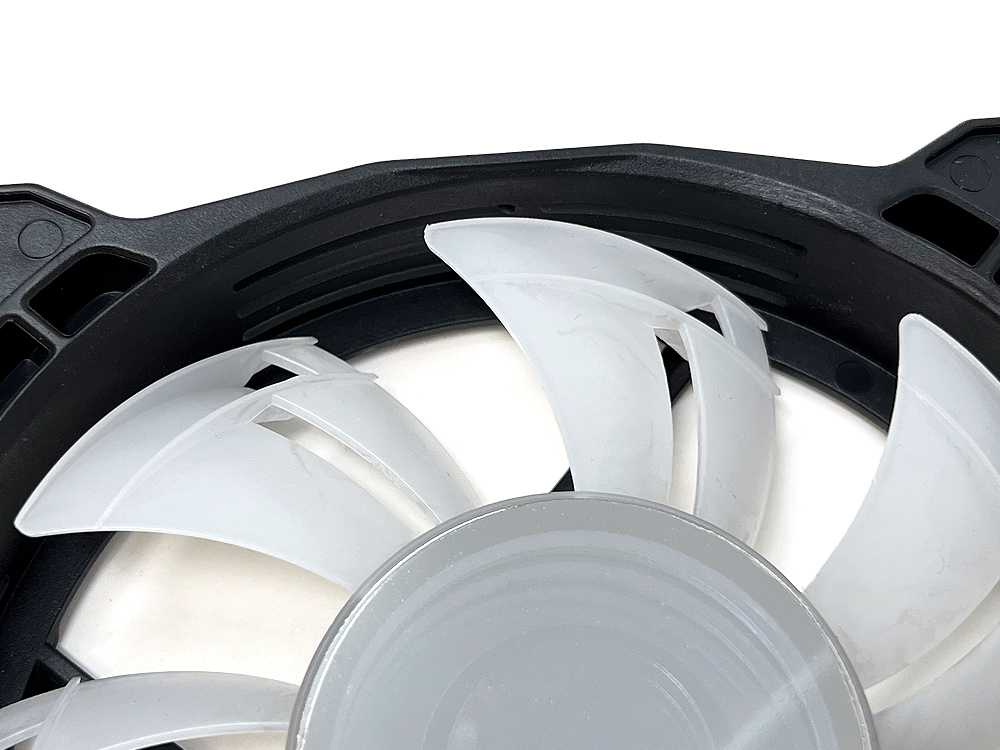

- Fan blade with unique dual air channel design to generate massive airflow

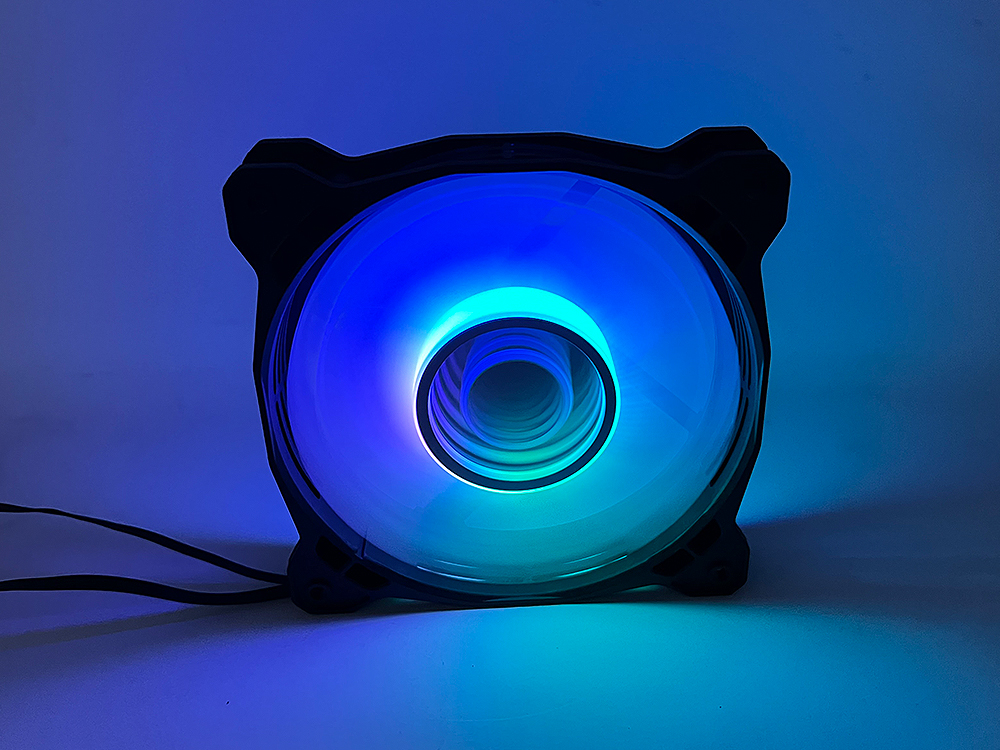

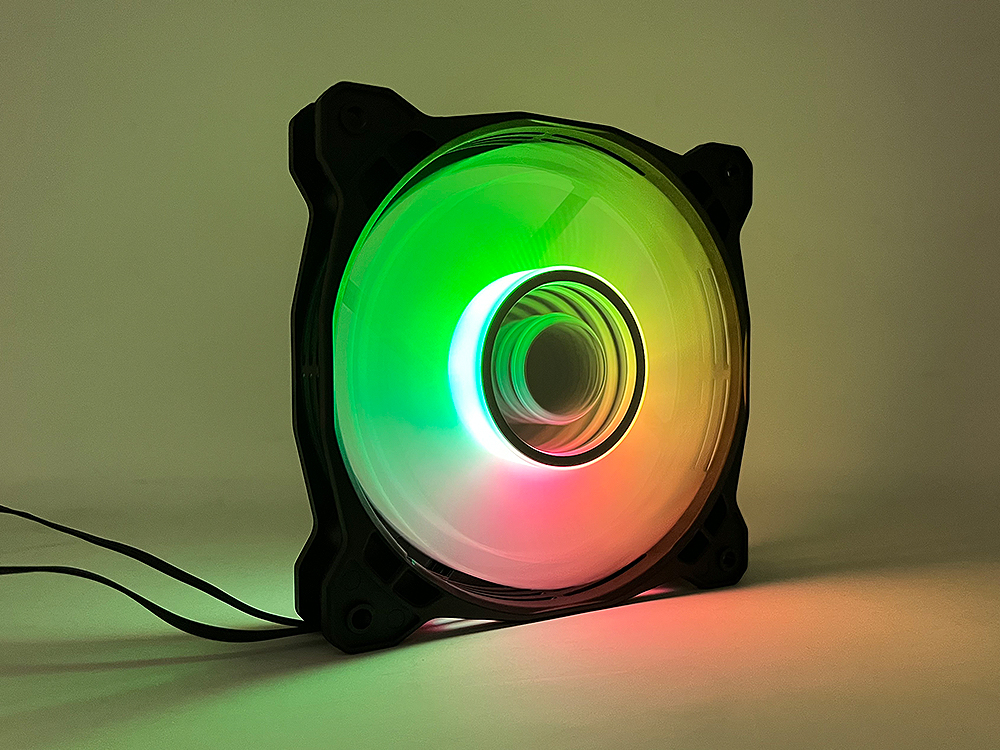

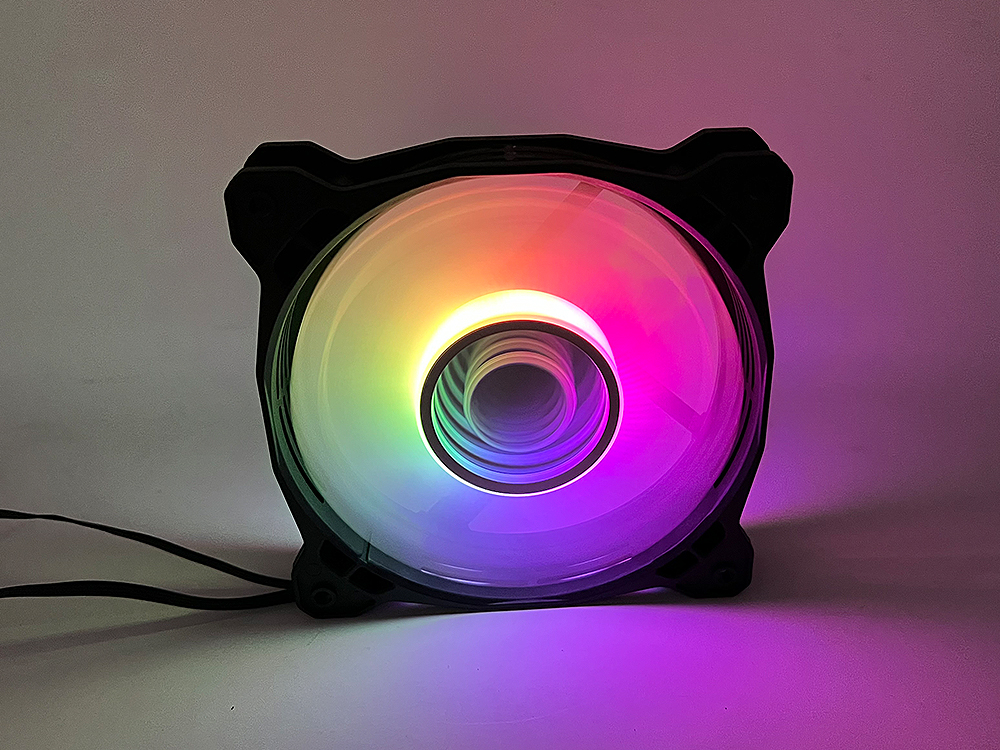

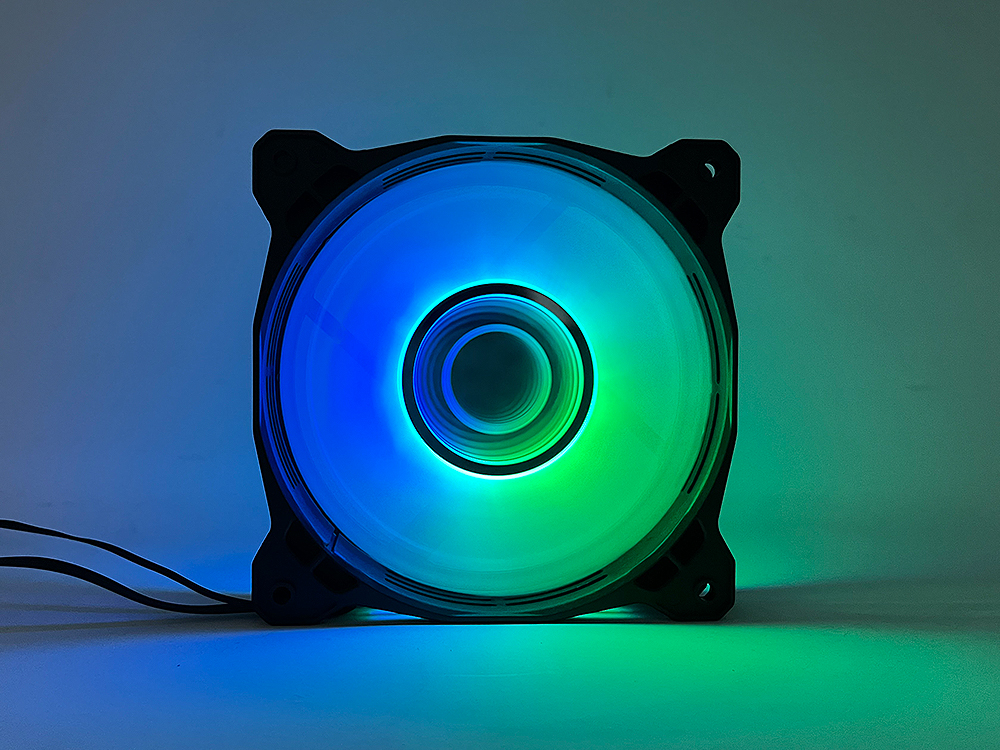

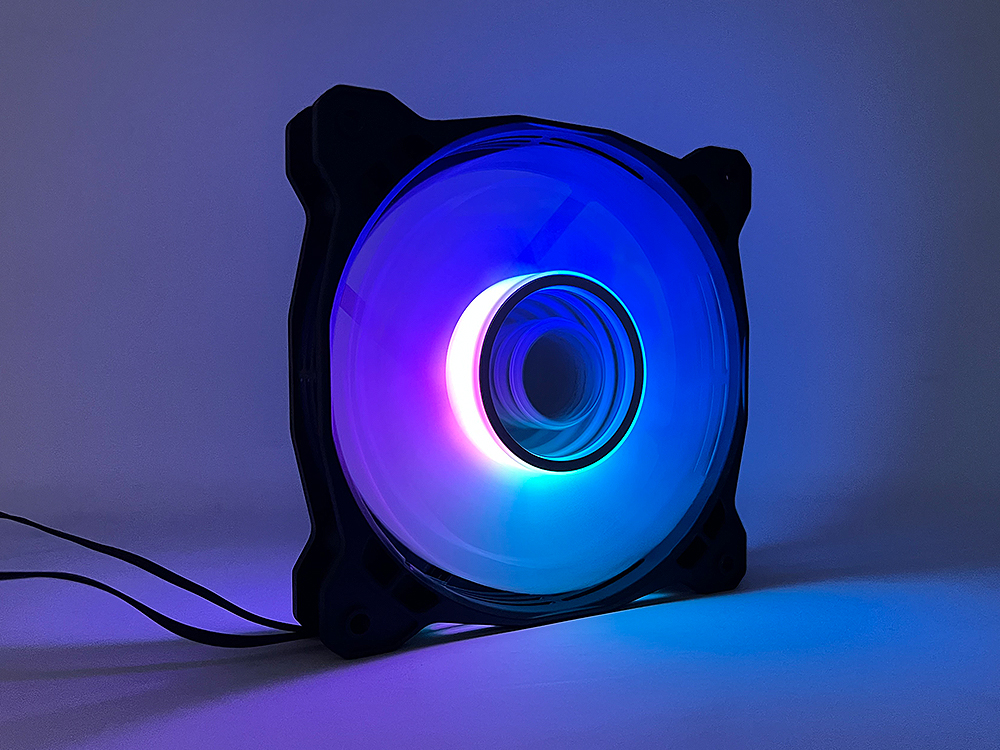

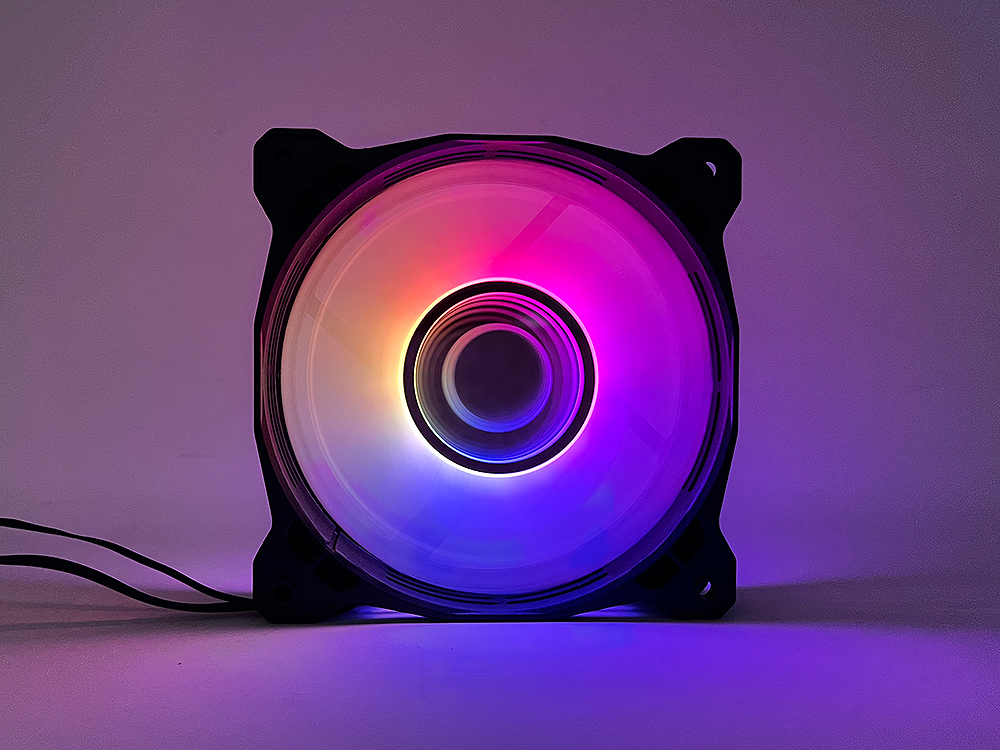

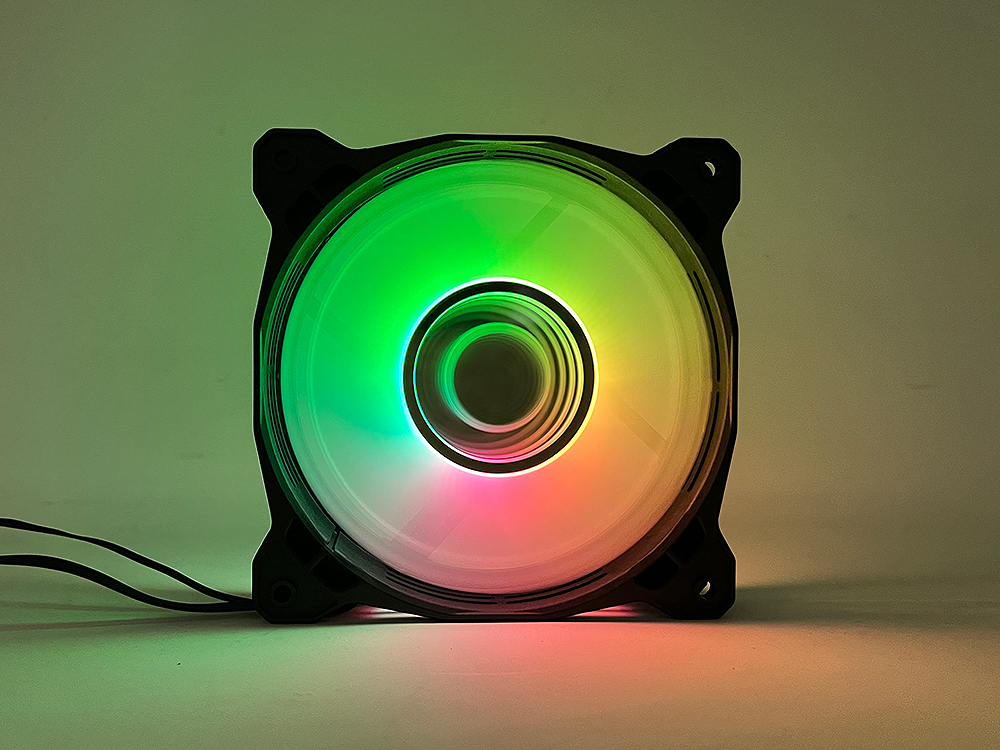

up to 101 CFM - Mesmerizing ARGB LED Vortex lighting effect
- Better Cooling and Silent system performance thru PWM fan speed control function

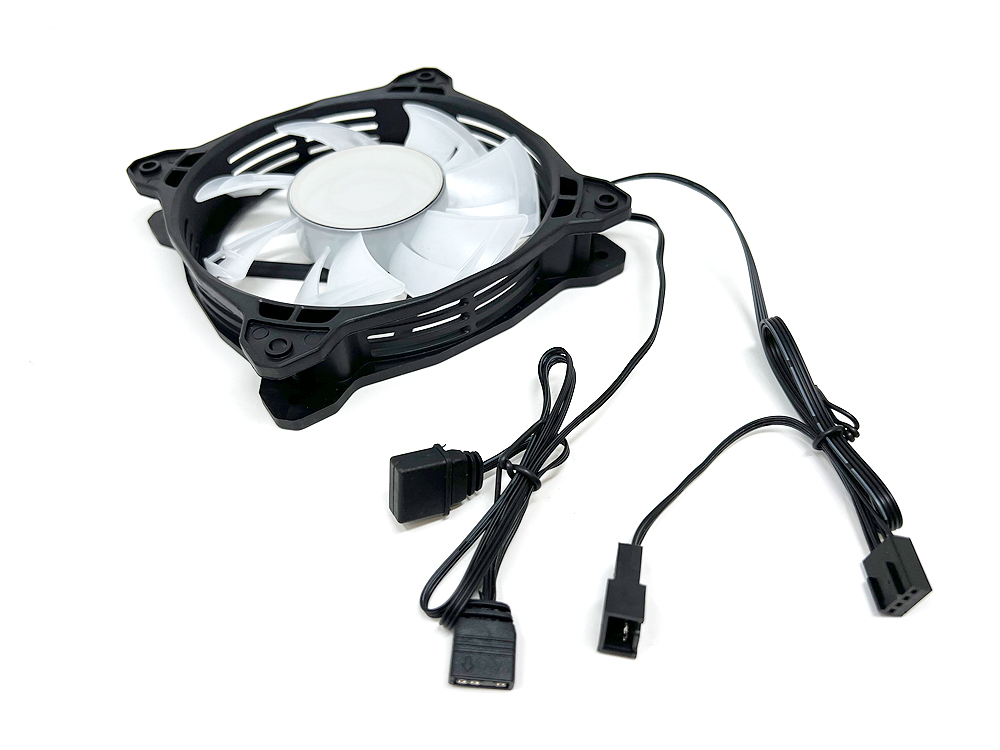

Models / Colors and Accessories
- Black

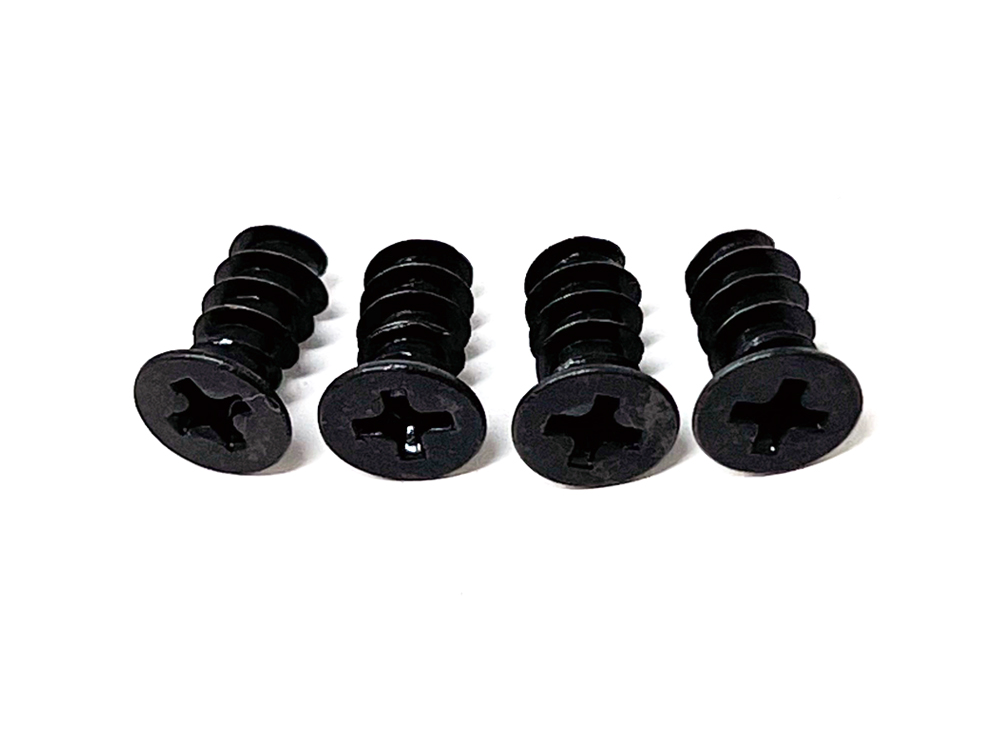

- 4 screws
b-PWM Vortex 120mm | |
---|---|
UPC Code: | 853704001732 |
Product Number: | BG01732 |
Speed(RPM): | 600 to 1800RPM±10% |
Current(A): | 0.145±0.05A |
Power(W): | 1.7 |
Airflow(CFM): | 101 |
Airflow (at zero static pressure for pwm): | 10 |
Static Pressure (at zero flow for pwm): | 2.5 mmH20 |
Static Pressure (max for pwm): | 13 mmH20 |
Rated Voltage(V): | 12 |
Operating Voltage Range(V): | 10.8~13.2 |
Noise Level at Max Speed(dbA): | 28 |
Operating Temperature: | -10°C~70°C |
Storage Temperature: | -10°C~70°C |
Frame Size(mm): | 120x120x25 |
Weight: | 125g |
Bearing: | Hydraulic Bearing |

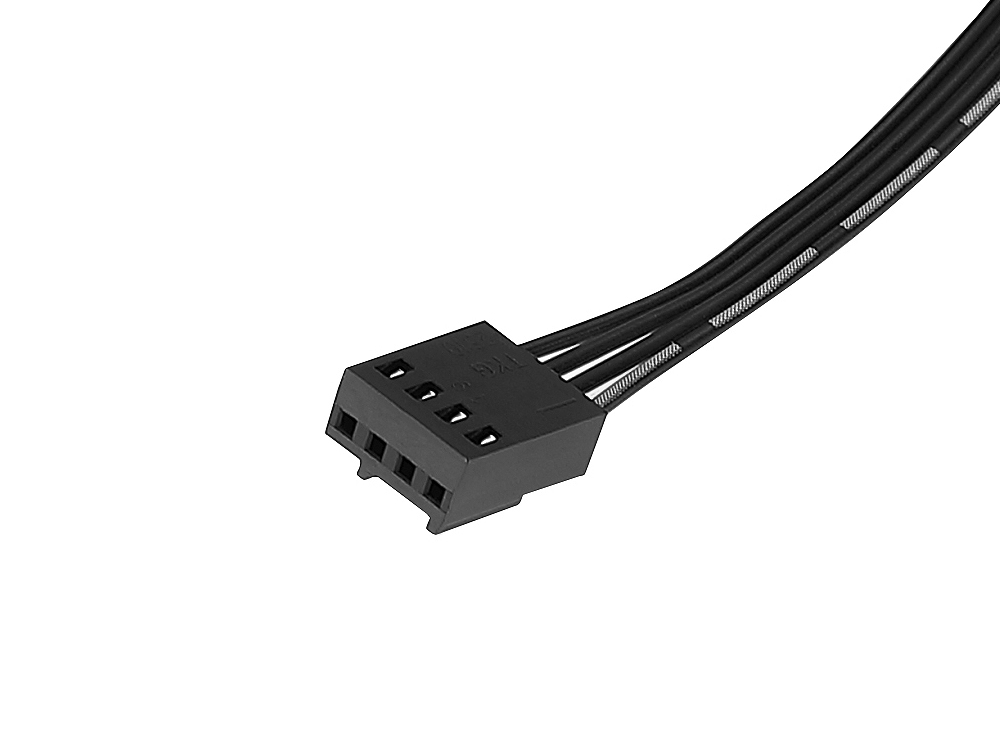

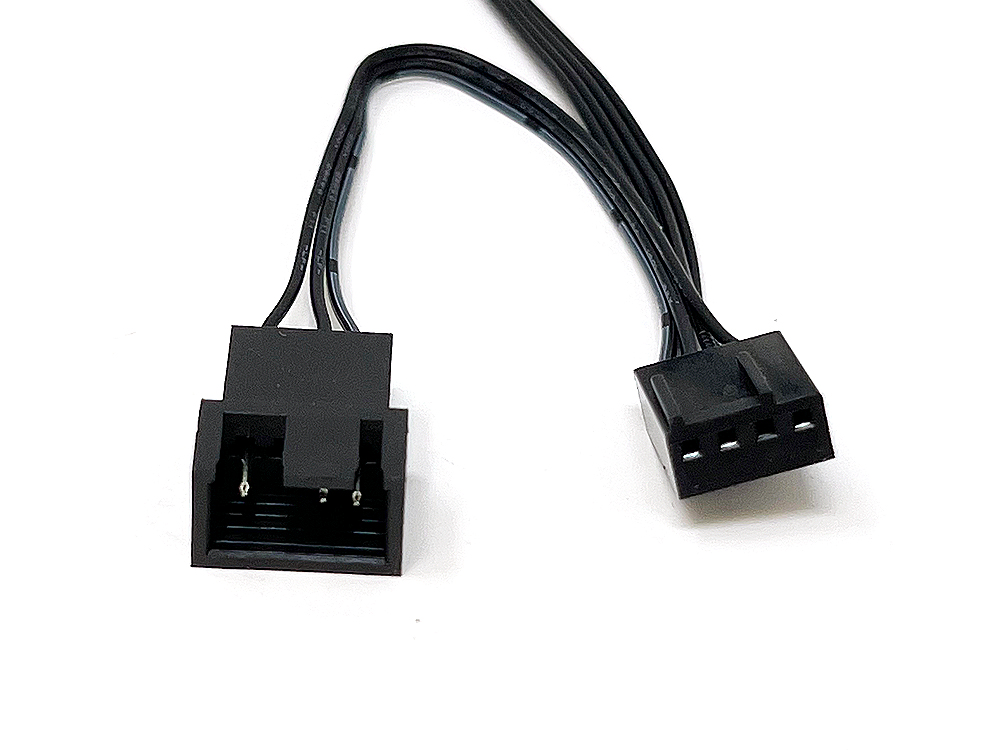

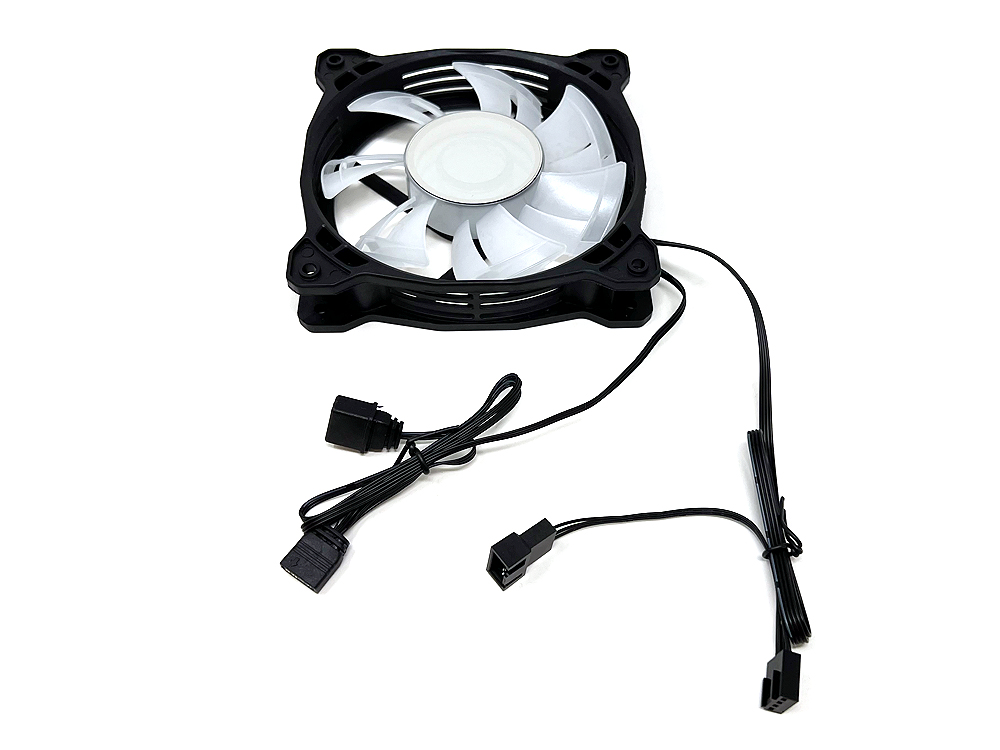

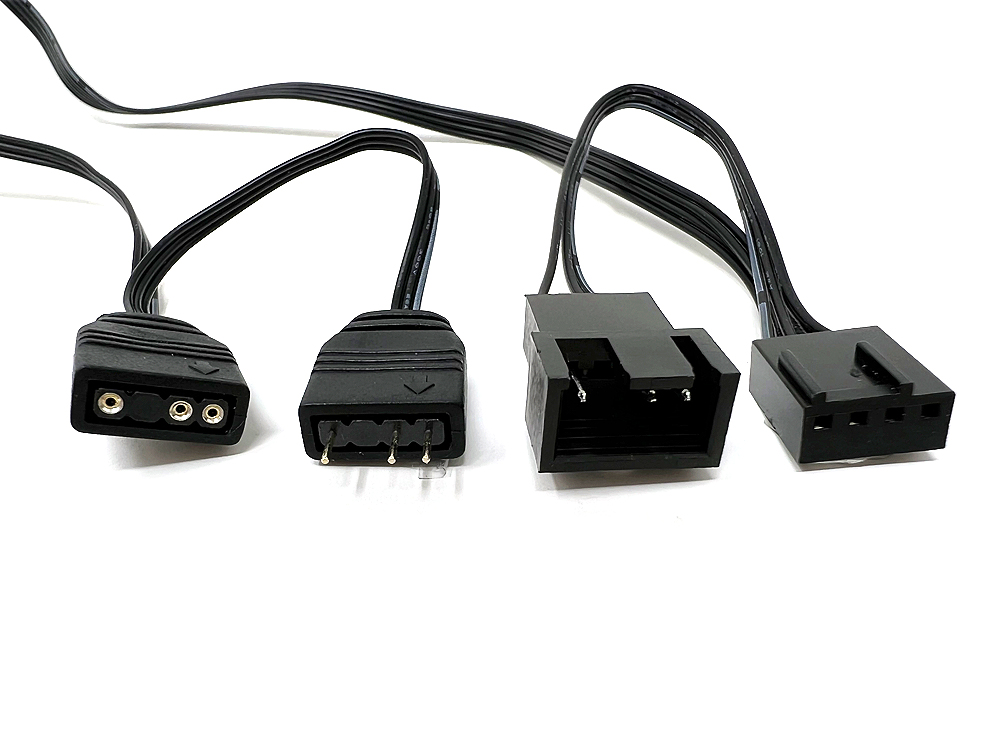

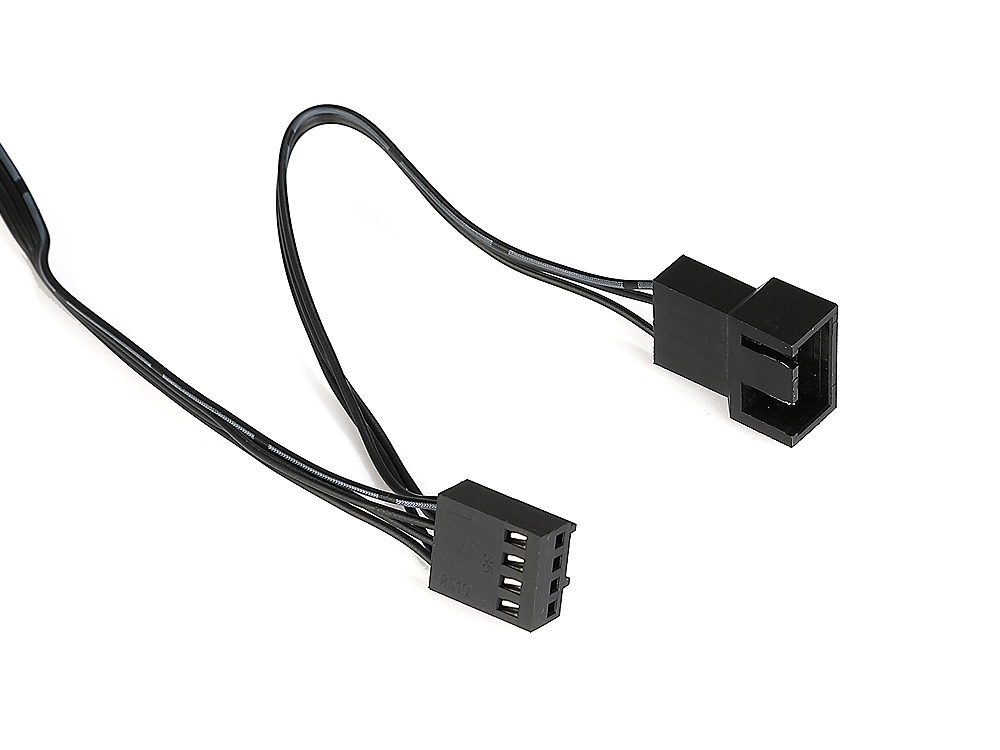

Fan Connector: | Mini 4 pin PWM |
Life Expectancy : | 60000 hours |

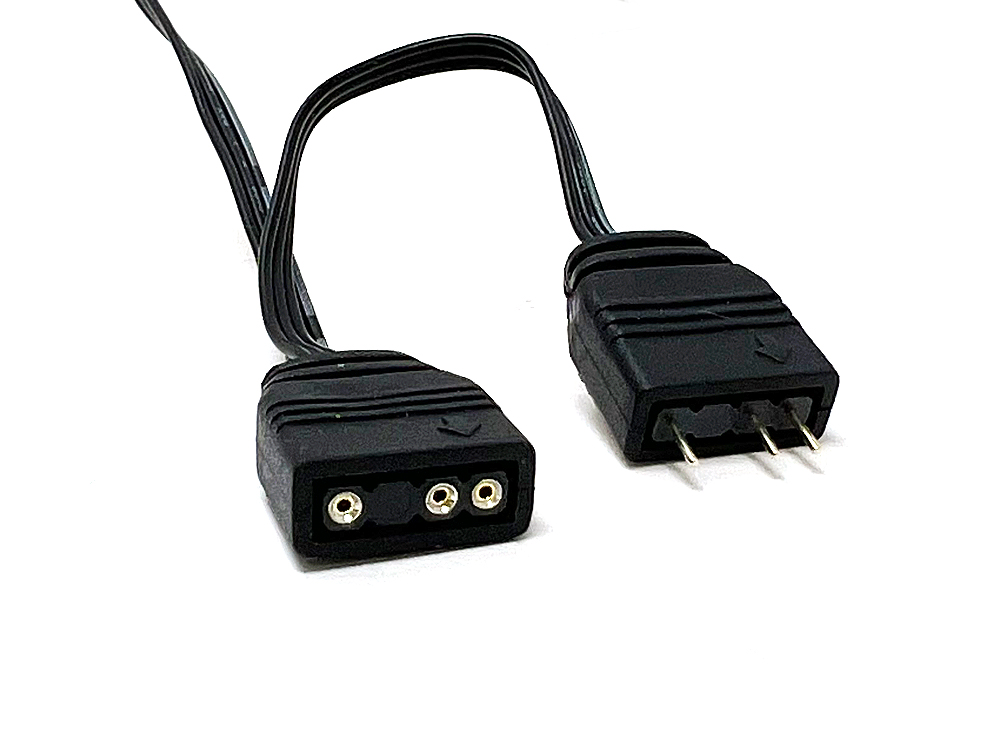

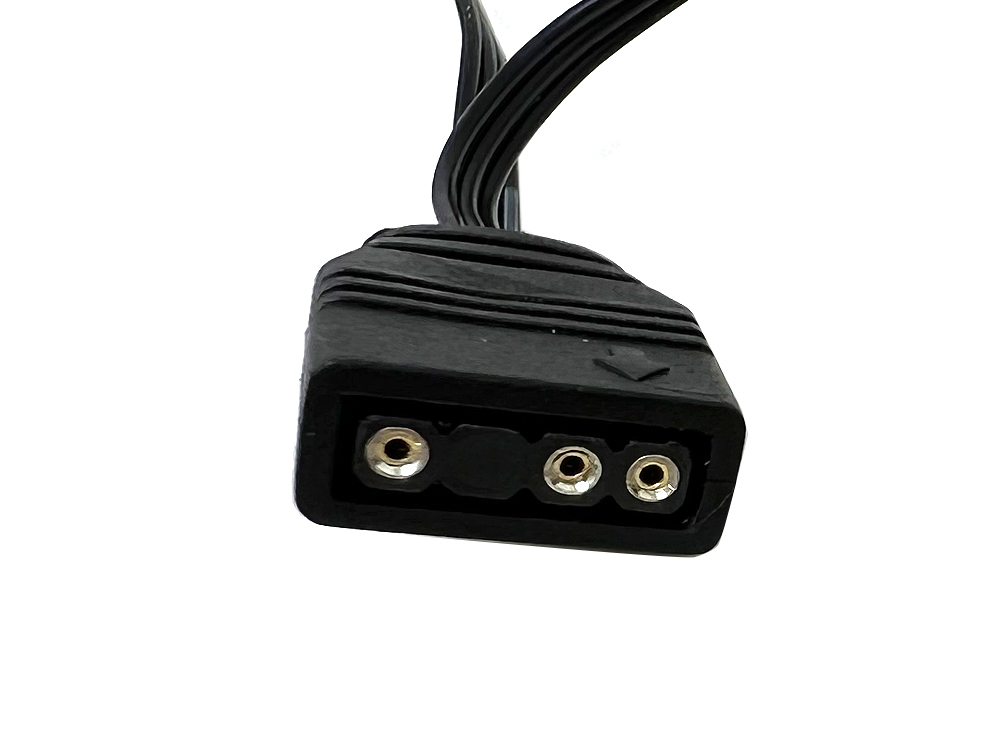

LED: | ARGB |
Certifications: | CE, RoHS, WEEE |
