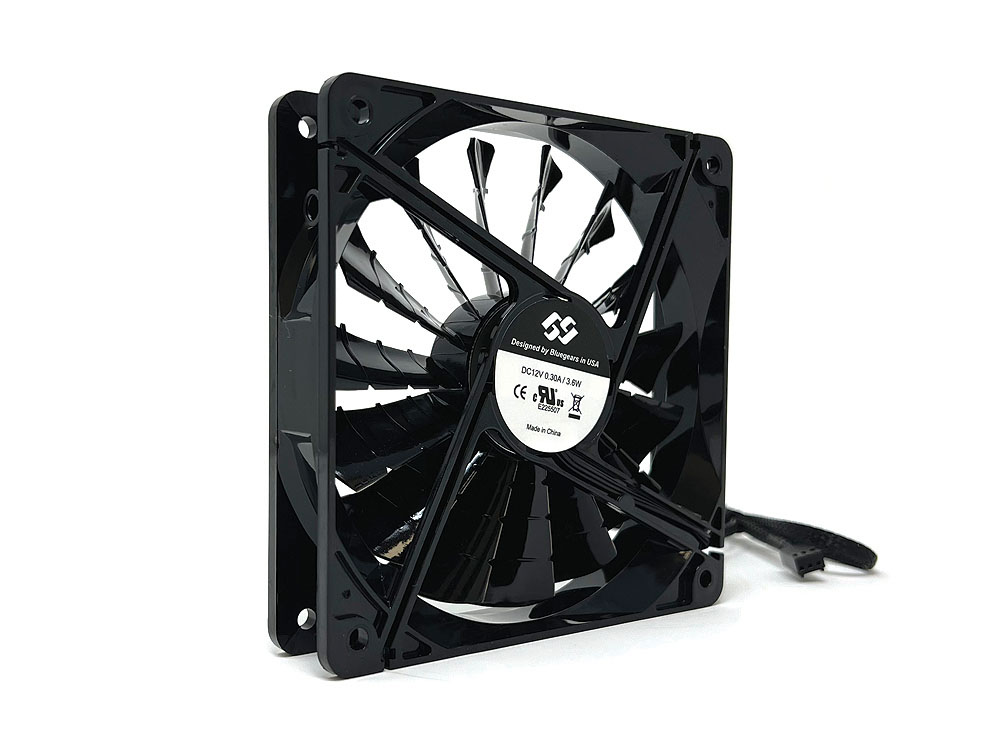

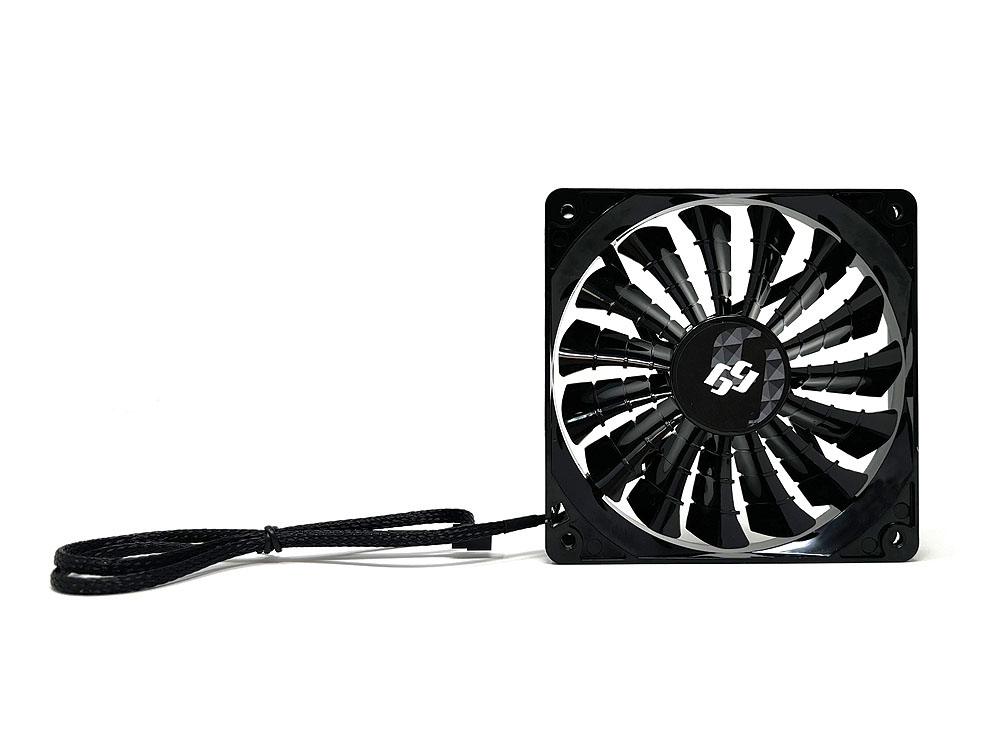

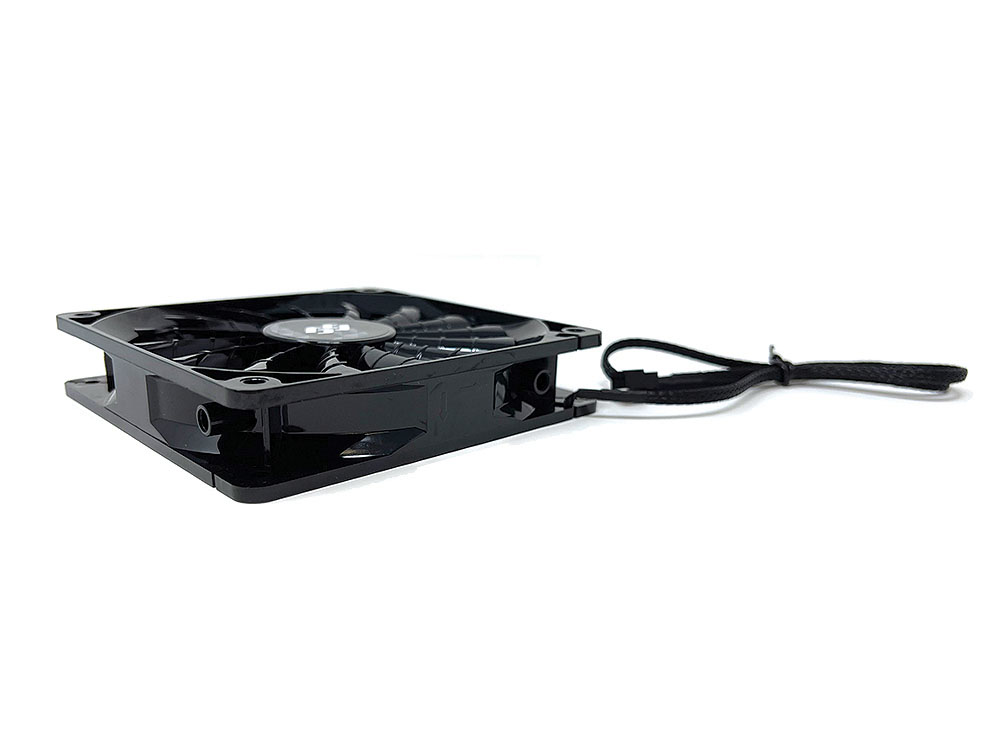

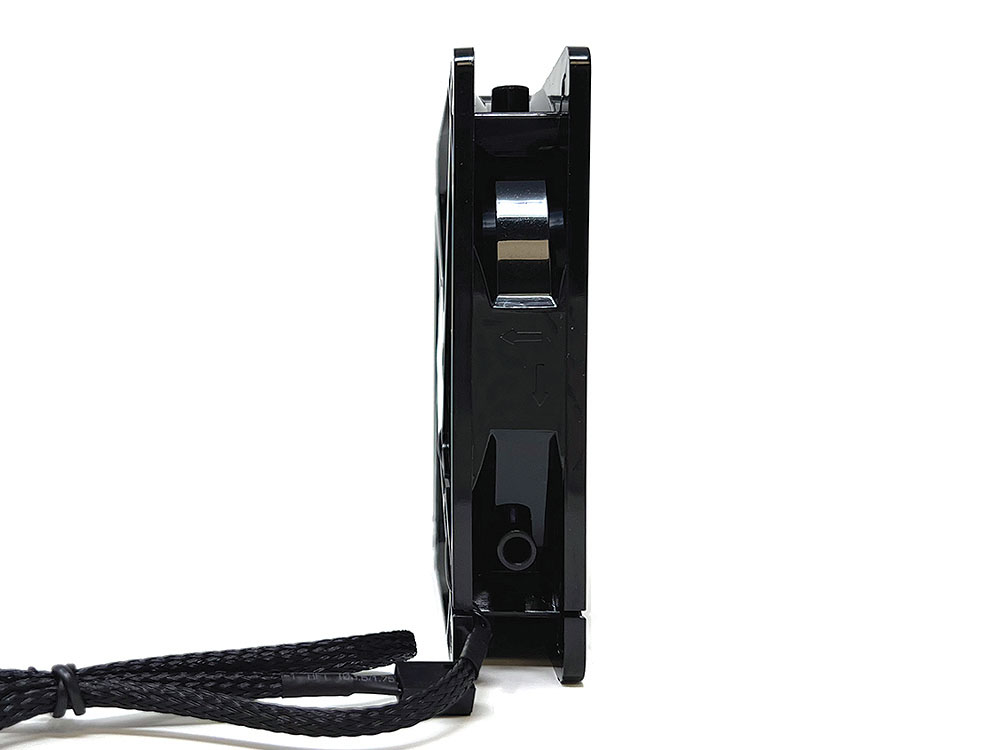

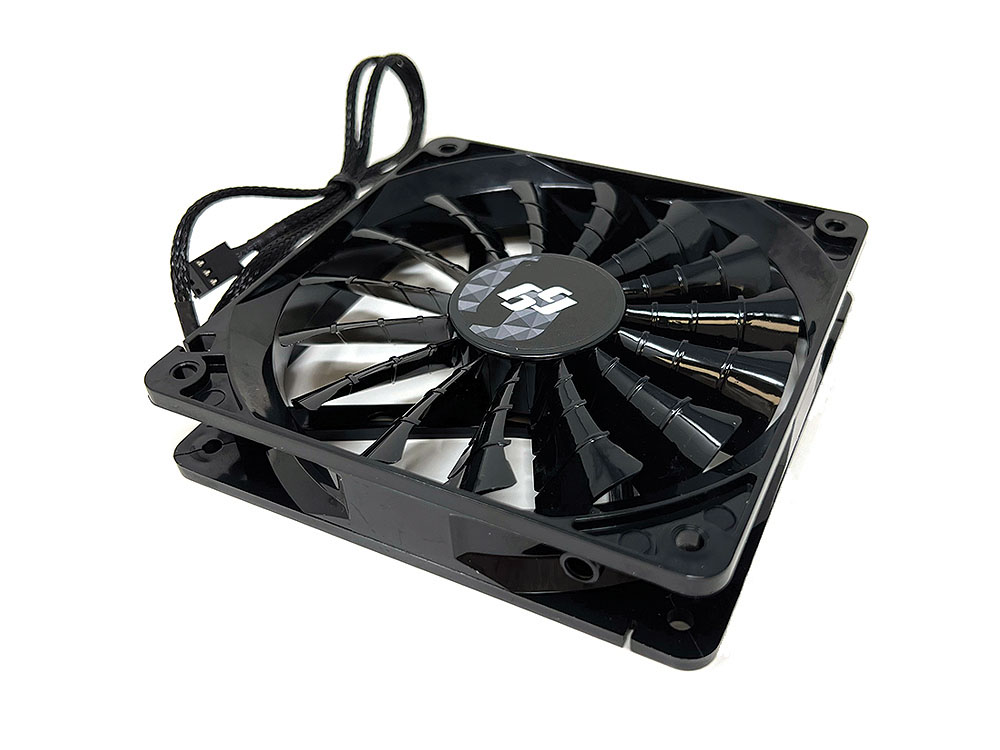

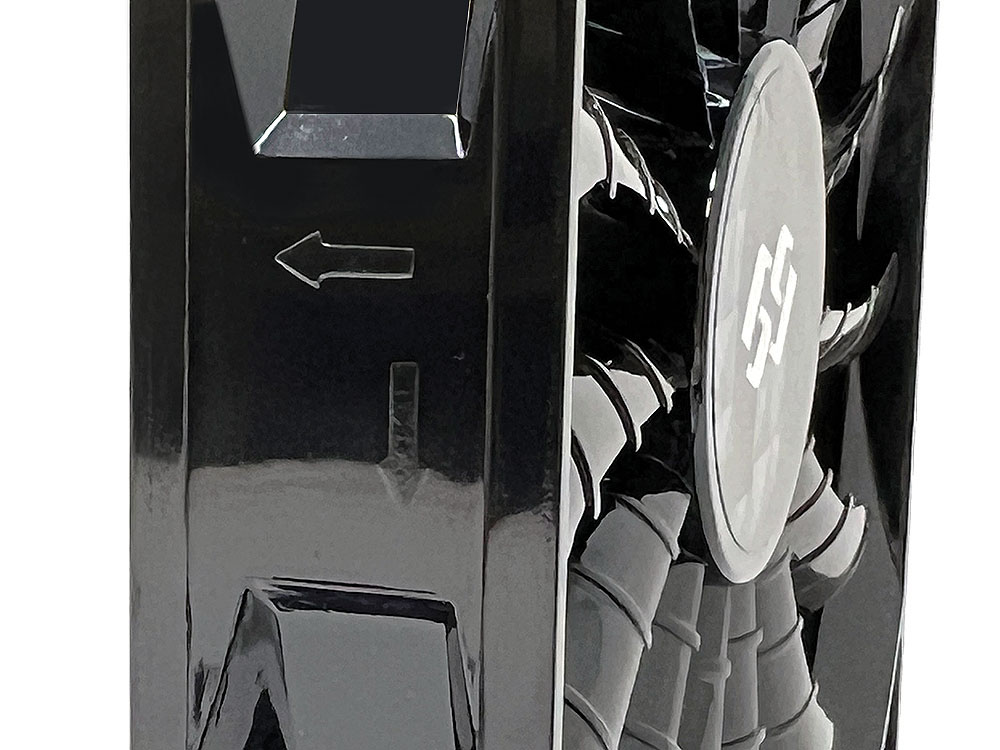

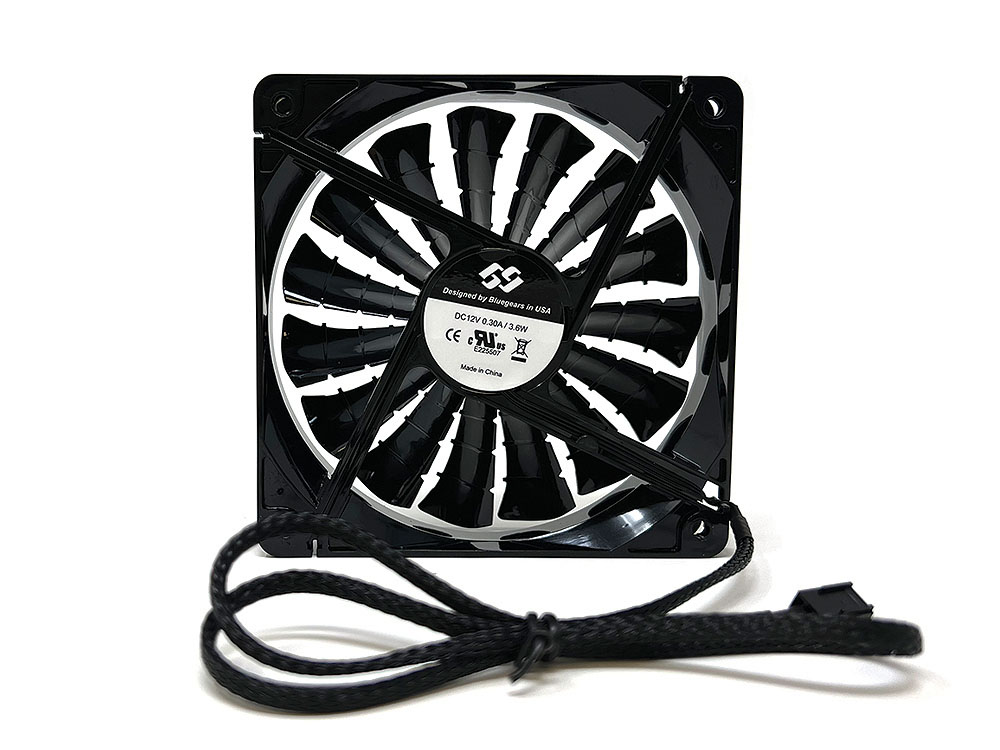

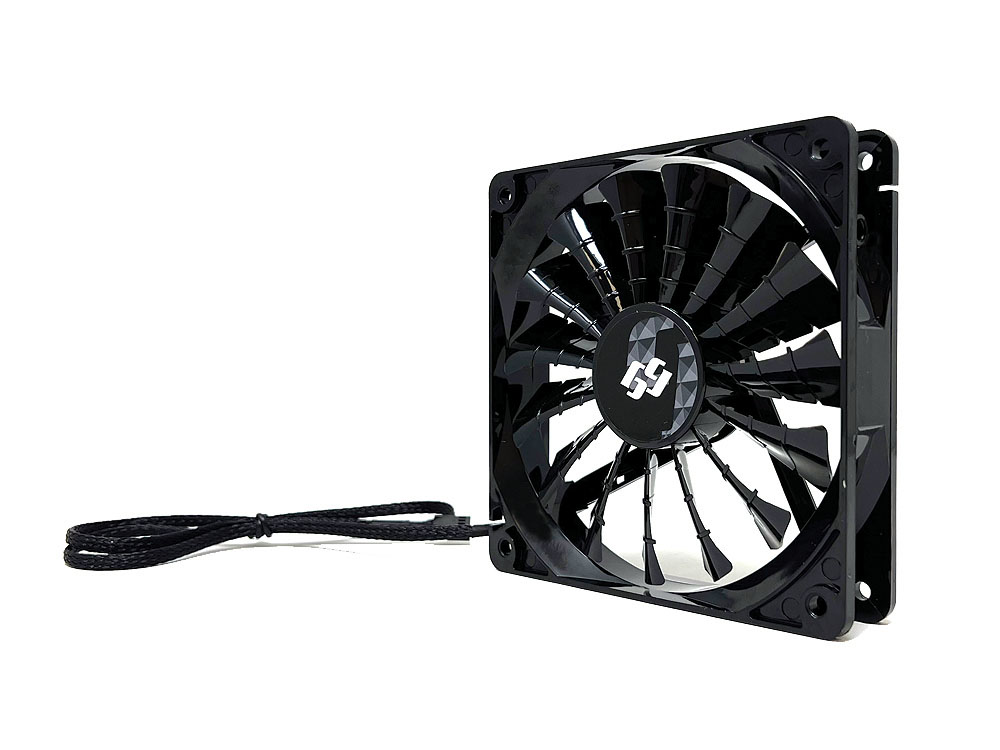

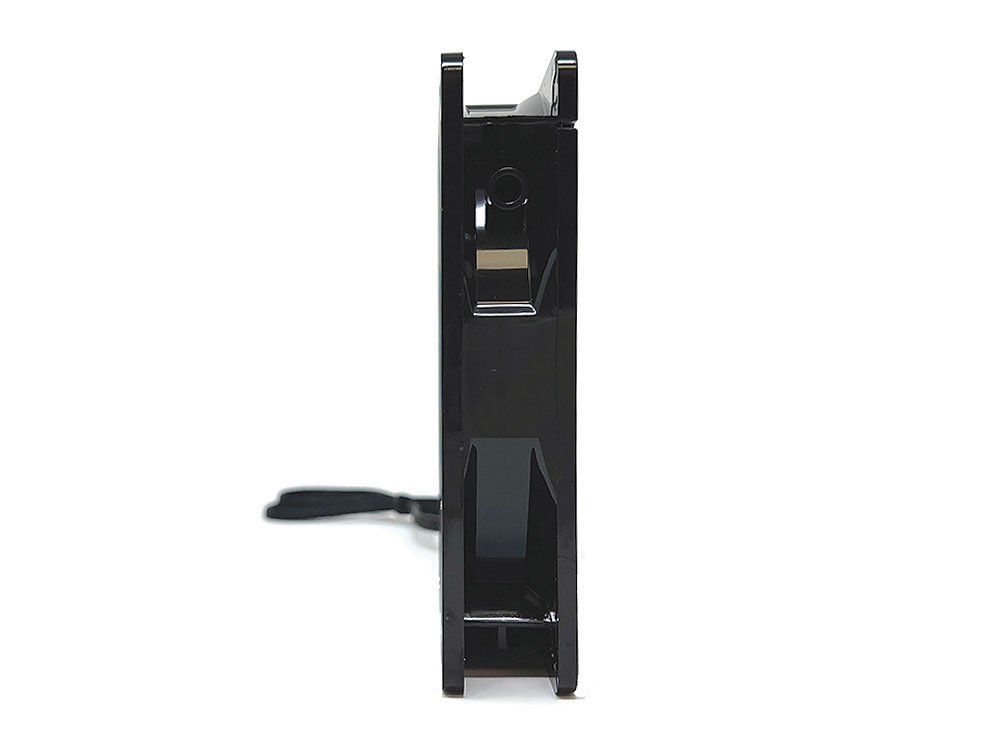

b-Shark 120-Black

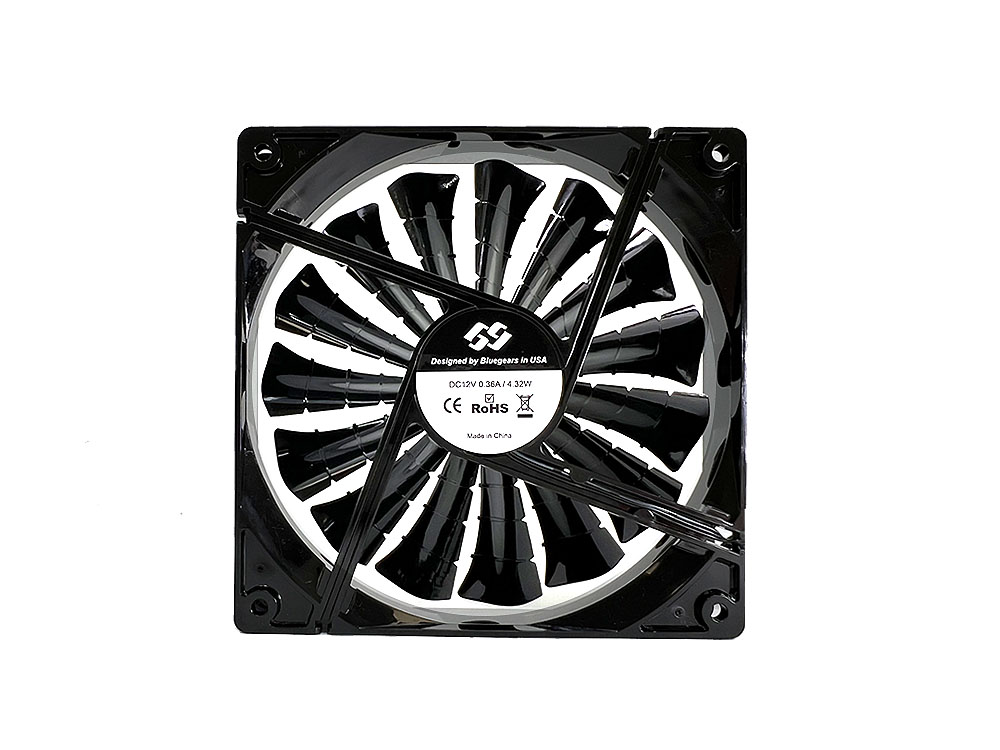

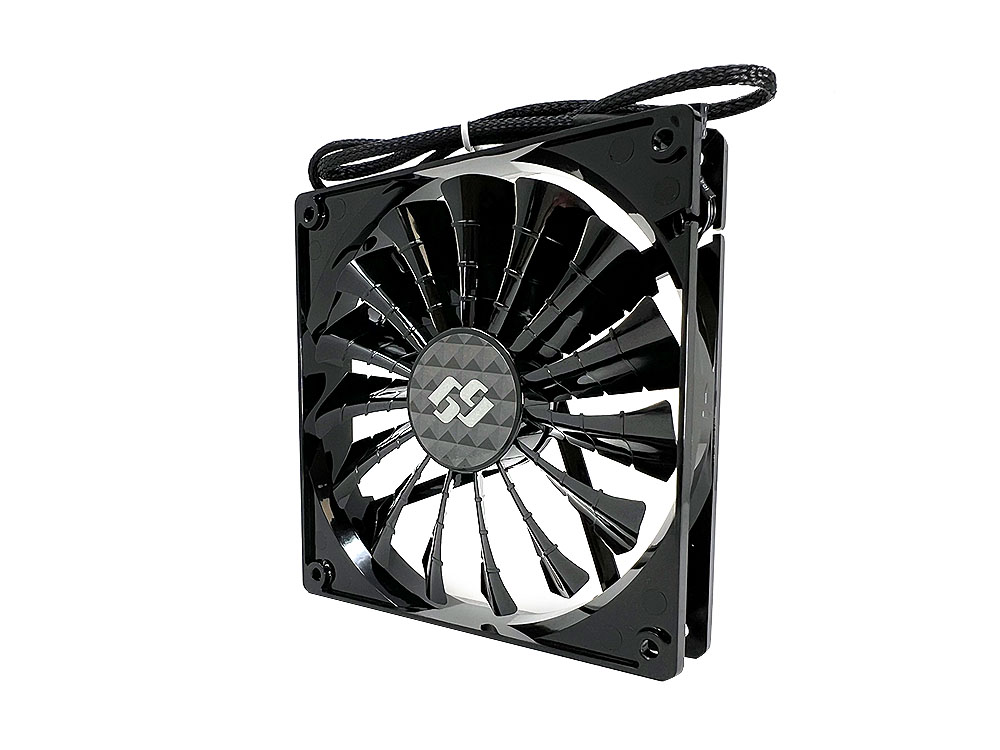

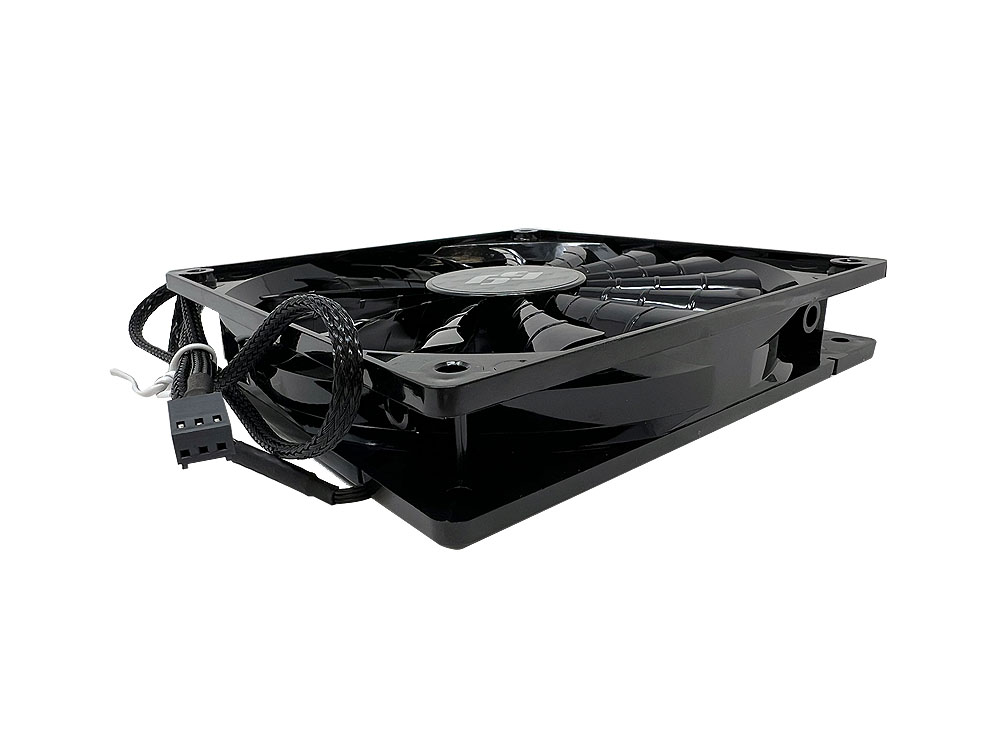

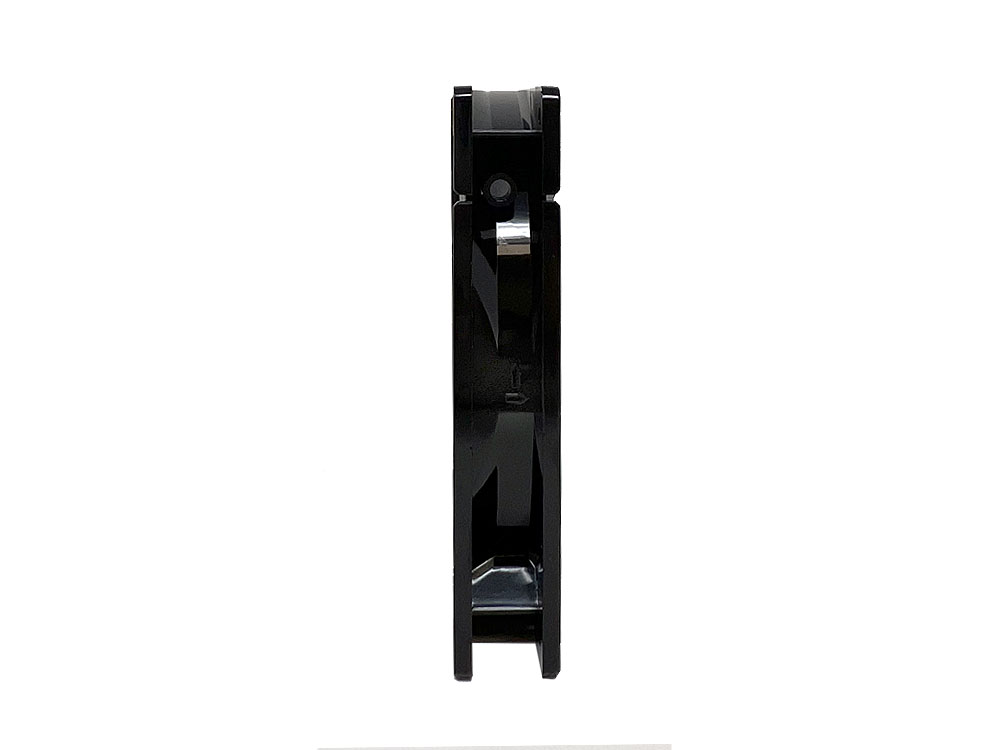

b-Shark 140-Black
Features
Models / Colors and Accessories
Features

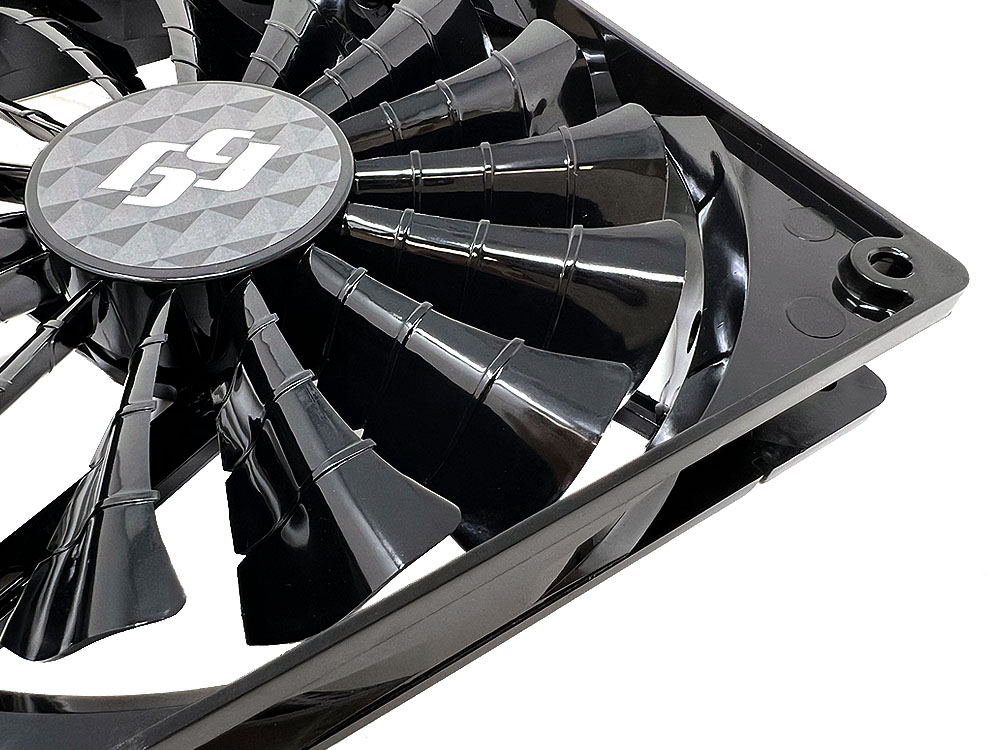

- Special 15 fan blades design for high performance high airflow for maximum cooling effect
- Generate airflow of 83CFM at only 26.5dBA.
- Innovative Fluid Dynamic Bearing design for longer life span, higher precision rotation with anti-shock function.
- All cables are sleeve wrapped.
Models / Colors and Accessories

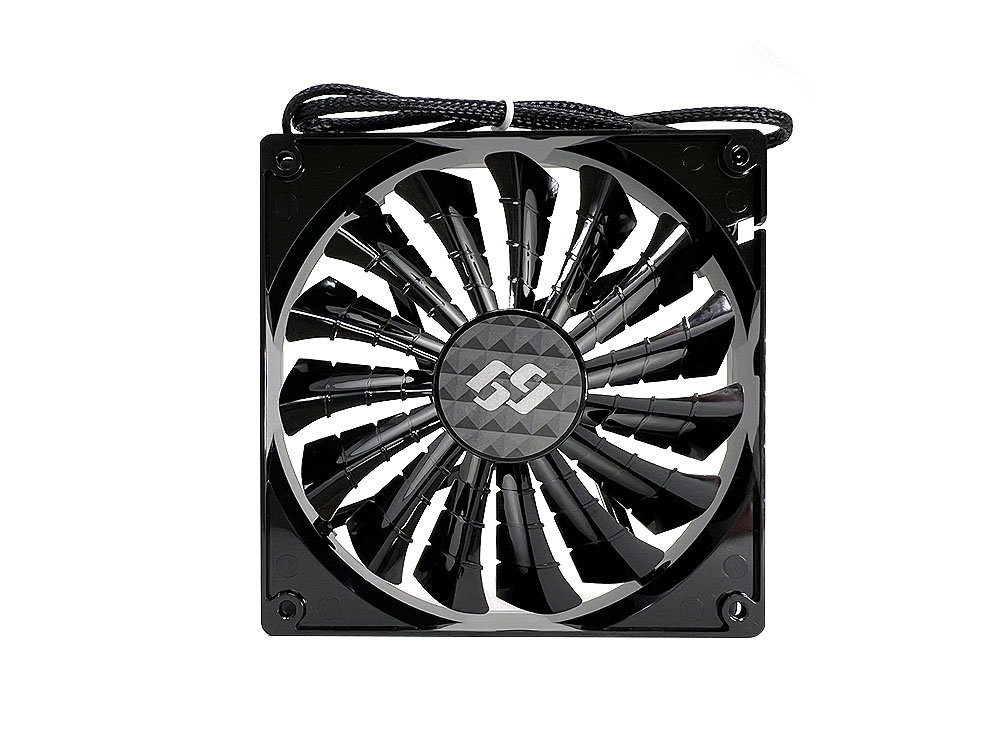

- 120mm / 140mm Black

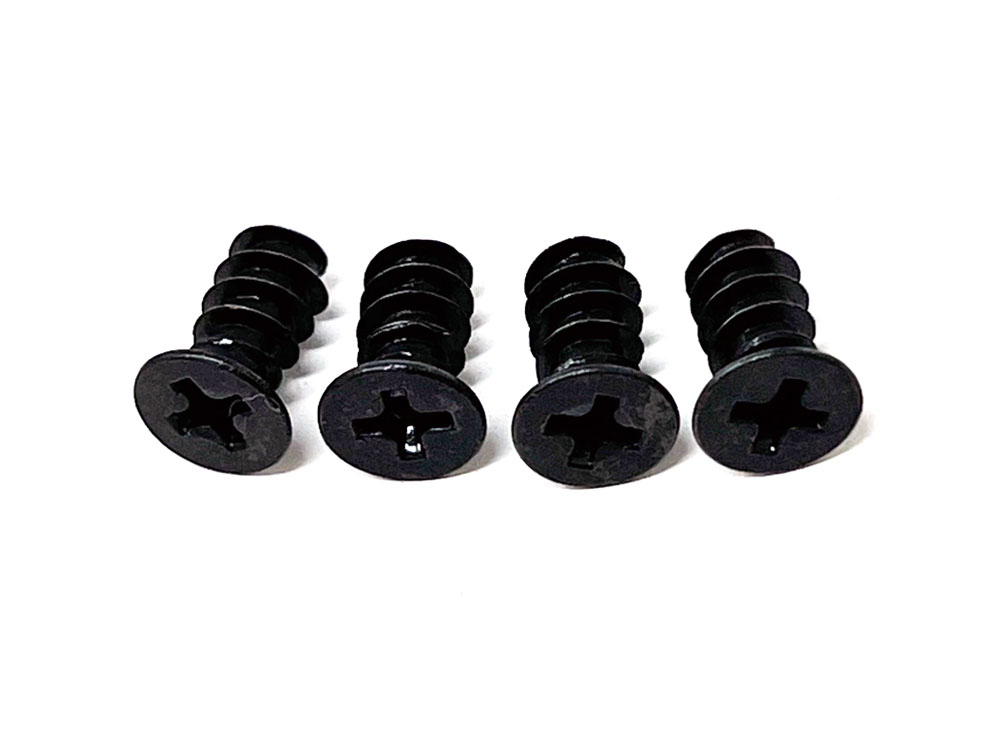

- 4 metal screws for 120mm

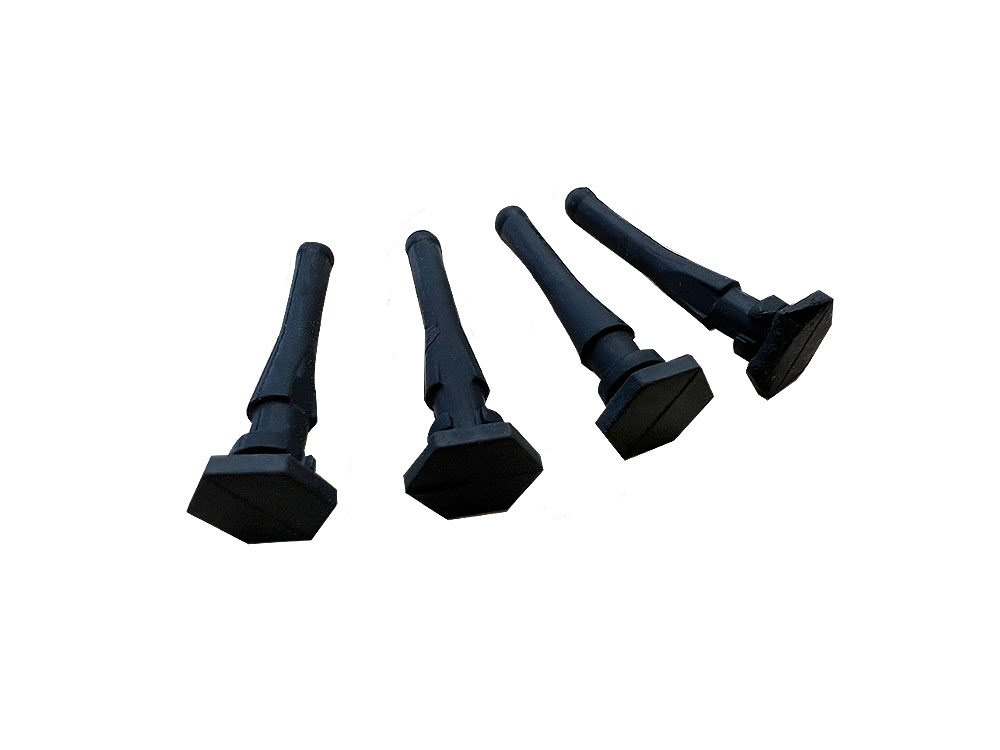

- 4 metal screws and 4 Anti-Vibration Rubber screws for 140mm
| b-Shark-Black | 120mm | 140mm |
|---|---|---|
| UPC Code: | 853704001794 | 850055230033 |
| Product Number: | BG01794 | BG30033 |
| Speed(RPM): | 1500RPM±10% | 1500RPM±10% |
| Power Consumption(W): | 3.6 | 4.32 |
| Airflow(CFM): | 82.6 | 96.5 |
| Air Pressure: | 1.273mm-H2O | 1.069mm-H2O |
| Rated Voltage(V): | 12 | 12 |
| Starting Voltage(V): | <=9.0V | <=6.0V |
| Noise Level: | 26.5dBA | 29.6dBA |
| Frame Size(mm): | 120x120x25 | 140x140x25 |
| Bearing: | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| LED: | None | None |
| MTBF: | 100000 hours | 100000 hours |

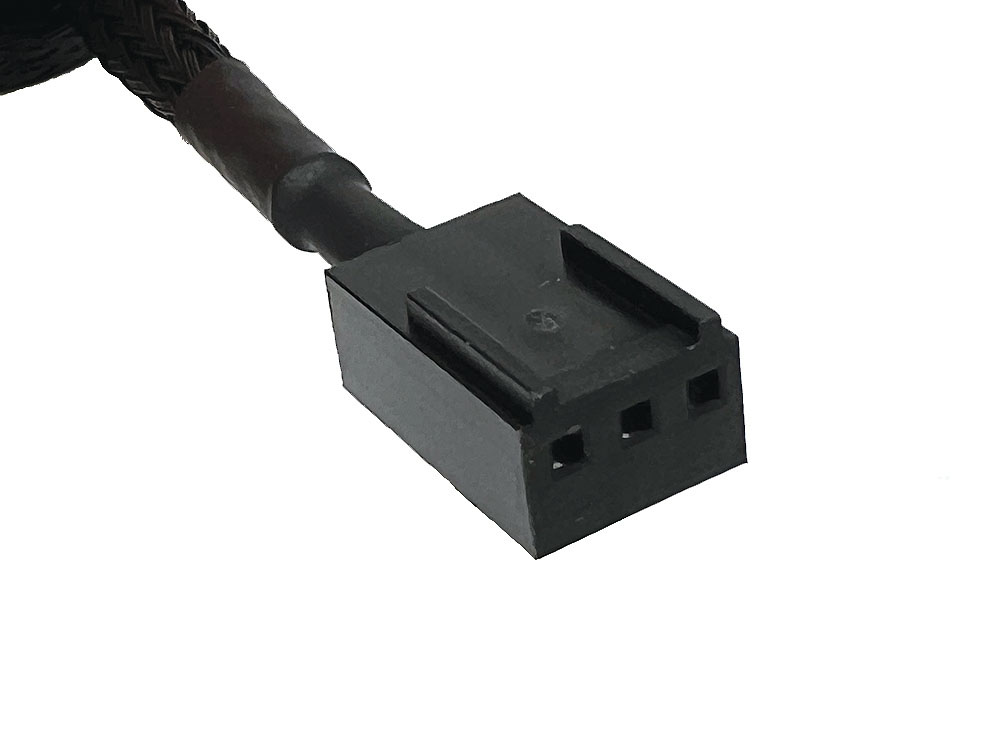

| Connector: | 3 pin | 3 pin |
| Screws Included: | 4 x metal screws | 4 x metal screws and Anti-Vibration rubber screws |
Connection
