b-Vortex-RGB
Features
Models / Colors and Accessories
Features

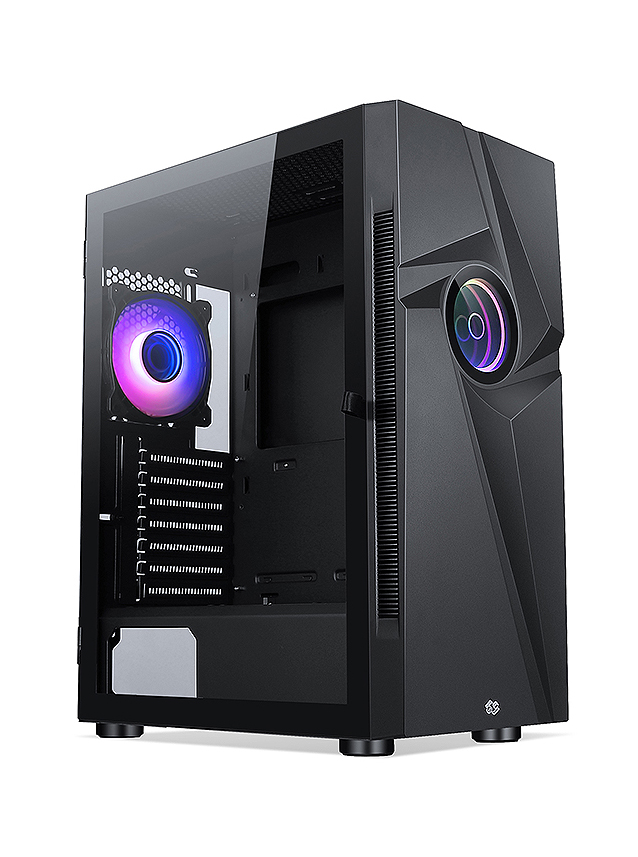

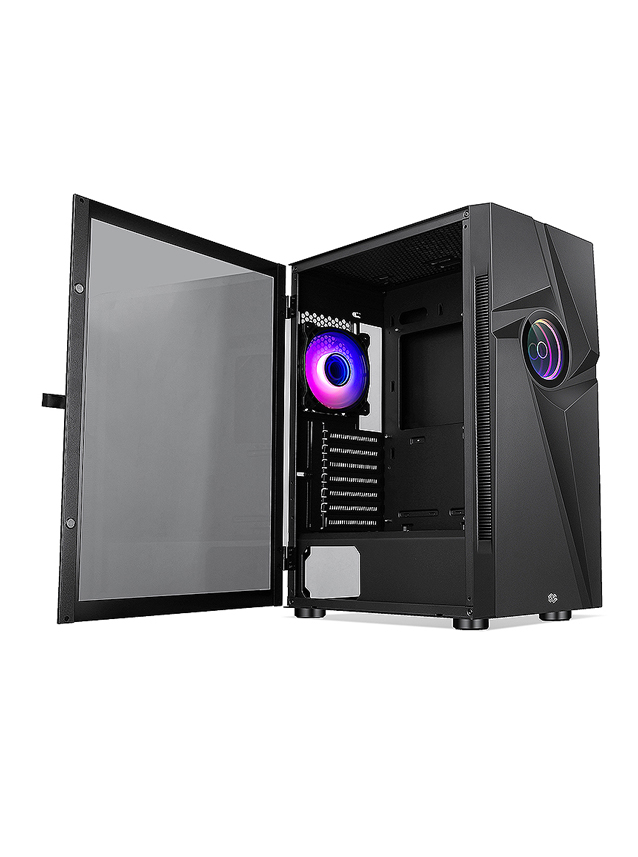

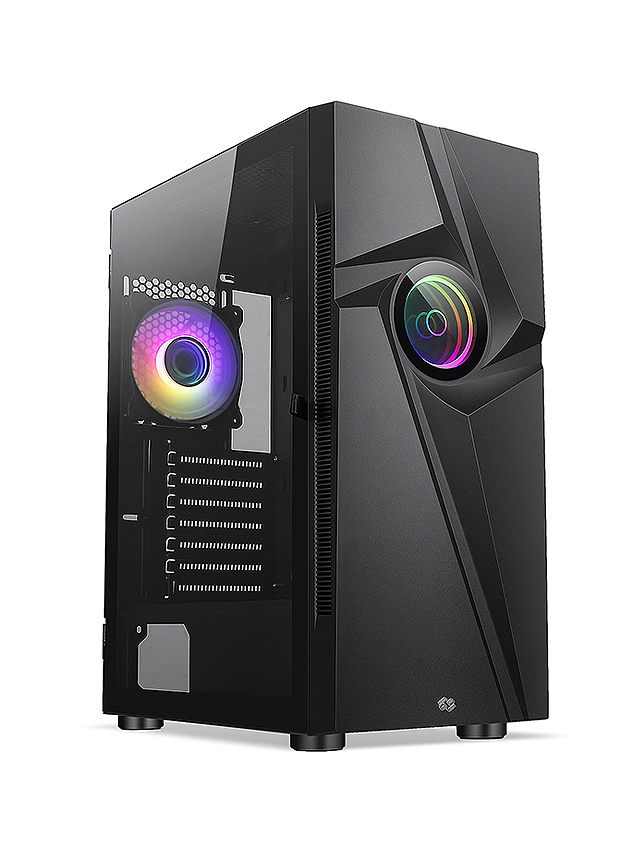

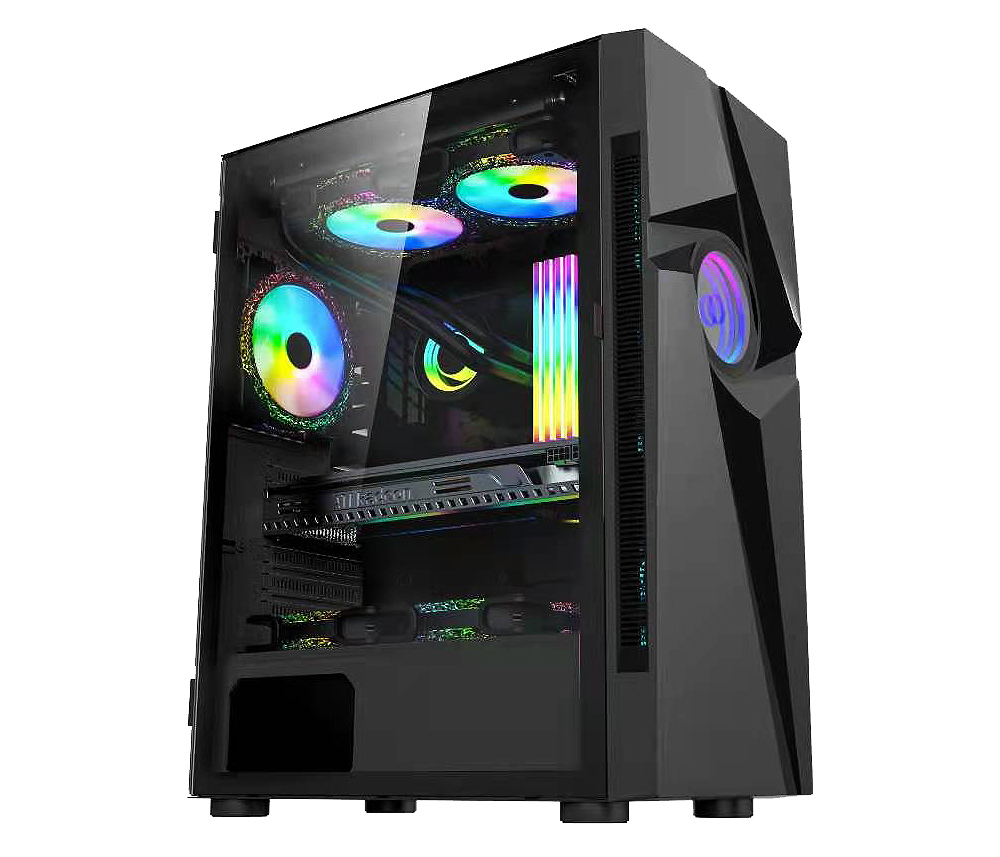

The Bluegears b-Vortex RGB Mid Tower Case features a unique door hinge design and a side tempered glass panel, allowing for an elegant display of your internal components. Engineered for optimal airflow, this case supports the installation of up to eight fans, ensuring efficient cooling for high-performance builds. Compatible with E-ATX, ATX, Micro-ATX, and ITX motherboards, it offers versatile options for various setups, while also accommodating advanced water-cooling solutions with support for front-mounted 240mm or 360mm radiators, a top 240mm radiator, and a rear 120mm radiator. The case includes one b-ARGB Vortex 120mm fan, enhancing both cooling efficiency and aesthetic appeal with customizable RGB lighting.
Models / Colors and Accessories
- Black
| b-Vortex-RGB | Black |
|---|---|
| UPC Code: | 853704001626 |
| Product Number: | BG01626 |
| Case Type: | Middle Tower ATX |
| Chassis Thickness: | 0.5mm Black interior |
| Motherboards: | E-ATX/ATX/Micro-ATX/ITX |

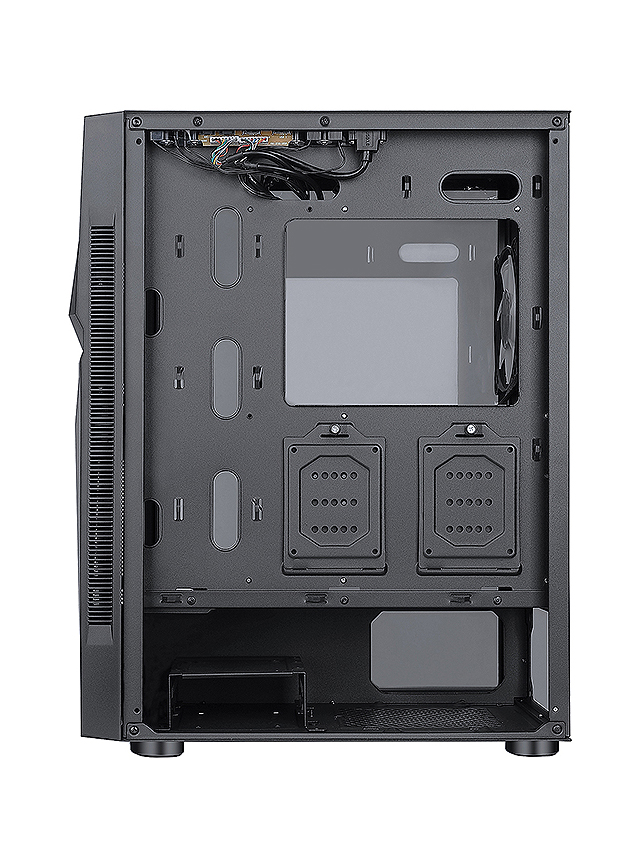

| Dimension (Internal): | 335(L) x 210(W) x 468(H) mm |
| Dimension (Overall): | 380(L) x 210(W) x 480(H)mm |

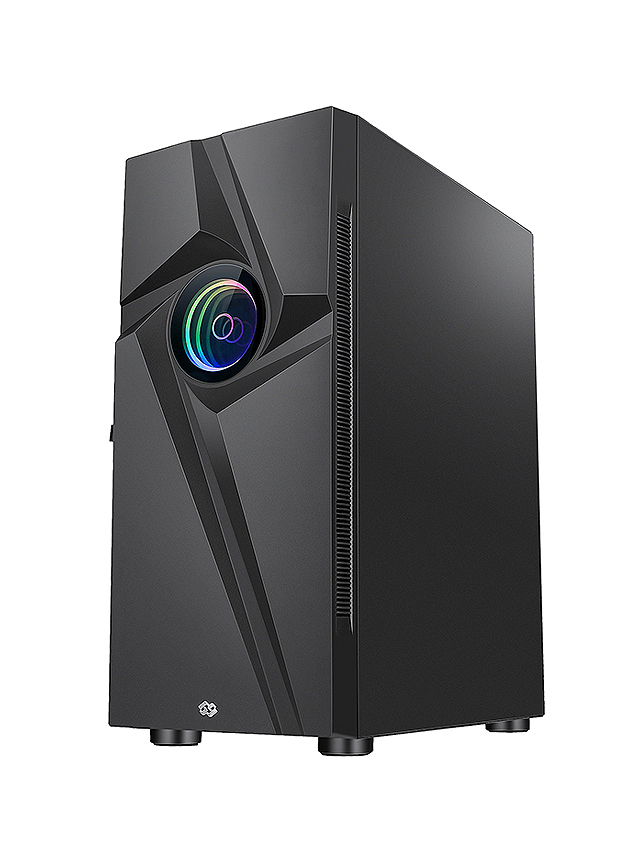

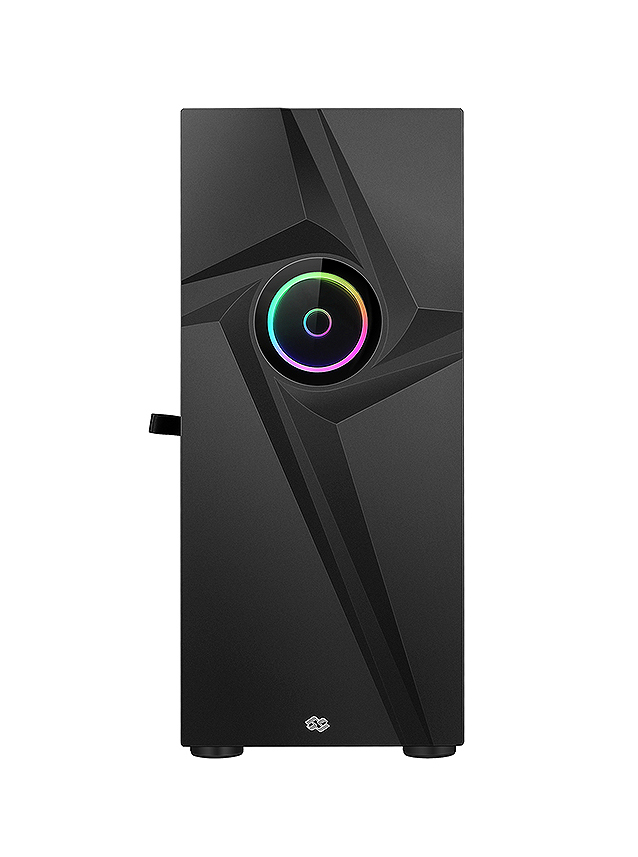

| Front Panel: | ABS + Acrylic + Mirror + Mirror LED (Controlled by LED button) |

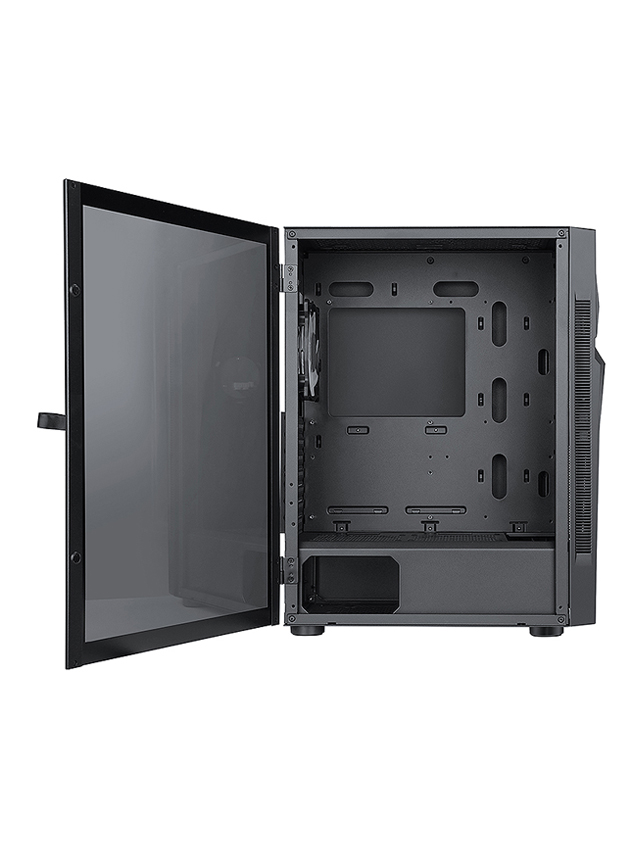

| Side Panel Left: | Door Hinge Tinted Tempered Glass |
| Side Panel Right: | Steel |
| Drive Bay HDD (3.5"): | 1 HDD + 3 SSD or 2 HDD + 2 SSD |
| Drive Bay SSD (2.5"): | 2 |
| I/O Port: | USB 3.0 x 1 / USB 2.0 x 2 / Mic / HD AUDIO, Cable Length 750mm + AUDIO 750 mm |
| Fan Front: | Chassis support: 120mm x 3 or 140mm x 3 (Not included) This model support: 120mm x 1 if install with EATX M/B |
| Fan Top: | 120mm x 2 or 140mm x 2 (Not included) |
| Fan Rear: | ARGB 120mm x 1 (Included) **Sync with front LED |
| PSU Chamber: | 120mm x 2 (Not included) |
| CPU Cooler Height: | Max. 165mm |
| VGA Card Length: | Max. 320mm |
| Water Cooling: | front 240mm or 360mm, top 240mm, rear 120mm |
| Dust Cover: | top magnet dust filter |
| Expansion Slots: | 7 |
| PSU Compatibility: | Standard ATX (PSU Not Included) |
